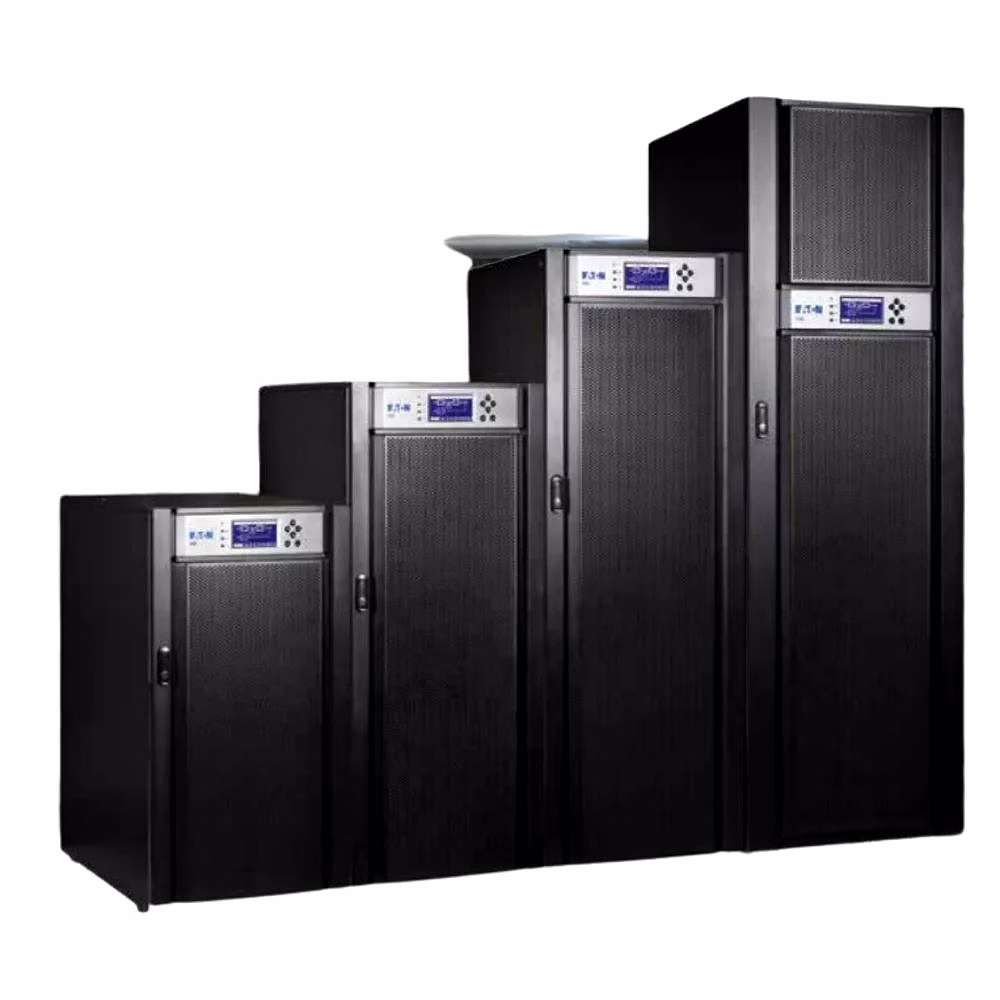

Eaton 20 kVA 93E 3:3 – Three-Phase UPS System

Eaton 20 kVA 93E is a three-phase uninterruptible power system engineered for medium-sized data centers and industrial control environments. Utilizing a 3:3 phase configuration, the unit provides balanced three-phase conditioned power at 208V, delivering high availability for critical load centers without the need for external phase conversion. The architecture supports scalable battery autonomy and integrates local power management to protect against mains anomalies. Delivered in crate-mounted enclosures, units ship with serialized test reports and wiring diagrams. Supply readiness is managed via factory acceptance records and support for OEM panel customization. This power module is essential for institutional providers requiring centrally managed backup stations with documented performance baselines for site acceptance and procurement workflows.

Key Features

• 3:3 Three-phase configuration → ensures balanced load distribution across the facility network without neutral current overload.
• Scalable energy interface → allows for customized battery runtime through connection to external battery cabinets.
• Factory-verified electrical tests → provides documented baselines for commissioning and institutional asset management.

Technical Attributes

• Rated Power: 20 kVA → selection parameter for redundancy and load planning calculations.
• Voltage: 208 V Three-phase → determines compatibility with downstream industrial distribution.
• Communications: SNMP/Modbus → selection parameter for centralized facility monitoring integration.
• Bypass: Integrated Static/Maintenance → defines serviceability and fault-tolerant operating modes.

System Composition and Thermal Design Logic of the Eaton 93E

The technical framework of the Eaton 20 kVA 93E 3:3 utilizes an online double-conversion architecture where the input rectifier and output inverter are decoupled by a high-capacity DC bus. This structure ensures that the load is isolated from input frequency variations and voltage sags, providing a consistent 208V supply with ±1% regulation. The internal layout is specifically engineered to minimize conductor lengths, reducing electromagnetic interference (EMI) and improving overall conversion efficiency. Without this specific structural reasoning, the unit would suffer from internal heat accumulation, which accelerates the aging of the semiconductor gate drives. Quality consistency is maintained through serialized factory acceptance tests (FAT) that validate the inverter's efficiency at 25%, 50%, 75%, and 100% load points. In a real operational scenario, a failure in the phase-synchronization logic leads to "circulating currents" between the UPS and the grid, which can cause upstream breaker tripping and complete facility blackouts. Our manufacturing logic employs redundant sensing transformers to ensure the UPS remains perfectly synchronized with the mains frequency during load transfer events.

Functional Performance and Battery Isolation Dynamics in 20 kVA Platforms

Operational efficiency is achieved through the 93E’s intelligent charging circuitry, which isolates the charge and discharge paths to permit safe battery maintenance without exposing the inverter to impulsive surges. This design allows technicians to perform individual cell swaps or impedance tests while the UPS continues to protect the critical load. The thermal management system utilizes speed-controlled fans with filtered intakes; a failure to maintain these filters leads to "hotspot" formation on the IGBT modules, triggering an automatic transfer to bypass to prevent component rupture. Functional stability is further enhanced by the integrated maintenance bypass switch, which allows for full-system servicing without powering down the connected equipment racks. If the UPS detects a DC bus overvoltage—often caused by regenerative loads from elevators or large motors—it executes an emergency shutdown to prevent the bus capacitors from failing catastrophically. The on-board diagnostics report real-time load profiles and runtime estimates, providing the B2B operator with the data needed for proactive capacity planning and battery replacement scheduling, effectively lowering the long-term total cost of ownership (TCO).

Institutional Deployment Logistics and Cross-Border Export Standards

Intended for healthcare centers, industrial control rooms, and medium data halls, the Eaton 20 kVA 93E is configured for the logistical requirements of global infrastructure projects. Units are shipped in reinforced enclosures secured to heavy-duty crates with internal steel bracing to prevent mechanical damage to the transformer mounts during sea transit. Failure to implement rigid bracing in shipping results in "chassis torque," which causes internal cable fatigue and potential short-circuits upon site commissioning. For international procurement, supply-readiness is supported through lot-specific test reports, wiring diagrams, and compliance declarations documenting electrical performance standards (UL/IEC). Export-ready documentation include configuration files and serialized acceptance records to facilitate customs clearance and institutional asset registration. Packaging utilize vapor-barrier wrapping and desiccant to mitigate moisture-induced corrosion on the copper busbars during long-distance multimodal transport. OEM labeling and custom front-panel layouts are supported for integrated delivery projects requiring branded power protection. This systematic approach ensures that the UPS arrives in a production-ready state, ready for rapid site integration and high-availability operational service.
