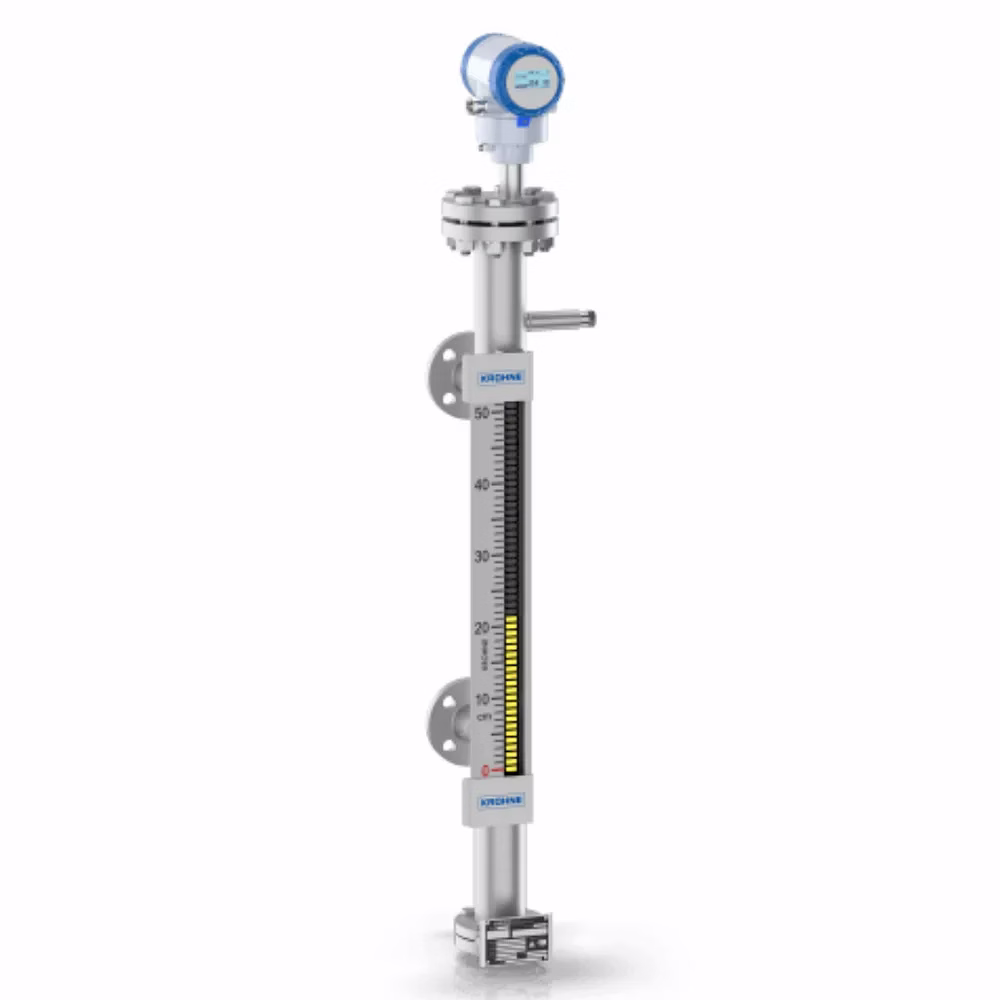

BM26A-8000 Magnetic Level Indicator – Redundant Liquid Level Assembly

BM26A-8000 is a high-integrity redundant measurement system engineered for hazardous and corrosive liquid storage. The unit architecture combines a visual magnetic float column with an integrated electronic transmitter, utilizing non-contact magnetic coupling to isolate the readout from the process fluid. This dual-technology approach provides local mechanical confirmation alongside a 4–20 mA or digital control signal for SCADA integration. Manufactured for vertical vessel installations, the assembly is available in modular segments with full material traceability. Units are supplied with factory sweep tests and leak-tightness certificates, ensuring supply-readiness for industrial procurement and facility-level safety interlocks requiring traceable performance data and export-ready packaging.

Key Features

• Redundant measurement architecture → delivers a high-visibility mechanical display for on-site operators plus a simultaneous electronic output for remote control systems.
• Sealed magnetic coupling → ensures a leak-proof measurement boundary by isolating the indicator from process containment, eliminating the risk of sight-glass blowouts.
• Field-configurable modular segments → enables scalable measurement spans for diverse vessel sizes and simplifies the logistics of long-range indicators for large tanks.

Technical Attributes

• Wetted Materials: High-grade alloys or Liners → selection parameter based on process fluid chemistry and corrosivity profile to prevent structural degradation.
• Output Interface: 4–20 mA / Digital / HART → determines compatibility with existing PLC control networks and remote telemetry requirements.
• Repeatability: Non-mechanical coupling → provides a stable reading with low hysteresis, maintaining accuracy even during power interruptions.
• Mounting: Side-mount or Top-flange → selection parameter defining mechanical integration and maintenance accessibility on pressurized vessels.

Magnetic Coupling Architecture and Containment Logic of the BM26A-8000

The technical framework of the BM26A-8000 Magnetic Level Indicator utilizes a high-buoyancy float containing a high-coercivity magnet assembly constrained within a non-magnetic bypass chamber. The structural reasoning for this design is to create a primary containment boundary that is entirely sealed from the atmosphere; the bi-color visual flags and the reed-chain transmitter are mounted externally, acting through the chamber wall. measurement physics rely on the magnetic field coupling to actuate external components. A failure in the float's buoyancy—typically due to localized pitting corrosion or extreme pressure-induced collapse—results in the float sinking to the chamber base. This failure mode manifests as a permanent "low-level" reading regardless of the actual tank volume, which can cause pump dry-running and catastrophic mechanical damage to downstream assets. Quality consistency is managed through serialized hydrostatic pressure testing of the guide tube and magnetic sweep verification of the indicator flags. Failure to manage "float orientation" during field assembly results in magnetic misalignment, where the external flags fail to track the liquid interface accurately, effectively decommissioning the manual backup system.

Functional Performance and Operational Redundancy in High-Mass Energy Storage

Operational efficiency is achieved through the system’s ability to provide continuous, energy-free visual level feedback—a critical safety standard for facilities during total plant power loss. Functional performance centers on the unit’s resistance to surface turbulence; the bypass chamber effectively acts as a "stilling well," damping waves to ensure a stable measurement signal. In real operational scenarios, a failure in the electronic transmitter module—due to seal fatigue and moisture ingress—results in "dead zones" in the control signal, where the PLC reports a constant value despite level changes. The BM26A-8000 utilizes potted electronics and IP-rated housings to mitigate this risk. If the visual flags become obscured by industrial fallout or salt buildup, the electronic transmitter provides the necessary redundancy to maintain overfill protection interlocks. The unit supports the addition of secondary magnetic switches for hardware-level high/low alarms. By providing a clear, redundant signal path, the indicator improves the overall reliability of the storage facility, reducing the likelihood of environmental releases and unscheduled maintenance shutdowns caused by sensor fouling.

Institutional Deployment and Logistical Readiness for Cross-Border Projects

Designed for chemical processing, water treatment, and industrial process vessels, the BM26A-8000 is configured for the logistical requirements of multimodal procurement. Units are crated with bolstered internal supports to protect the long bypass chambers from bending or racking during transport. Failure to implement rigid crating results in "chamber warping," which alters the float-to-wall clearance and can cause the float to jam upon site commissioning. For international procurement, supply-readiness is supported through lot-specific test certificates and material declarations (EN 10204 3.1). Export-ready documentation includes material trace records, level sweep logs, and certificates of conformity (PED/ATEX) to facilitate customs review and institutional asset registration. Packaging utilize vibration-damping mounts to protect the reed-switch transmitter from shock-induced damage during maritime freight. OEM branding and private-label programs are available for system builders requiring branded measurement instrumentation for their equipment skids. This high-authority approach ensures procurement teams receive verified, site-ready hardware that meet the safety requirements of global industrial markets, providing the technical transparency required for large-scale energy accounting and asset tracking.
