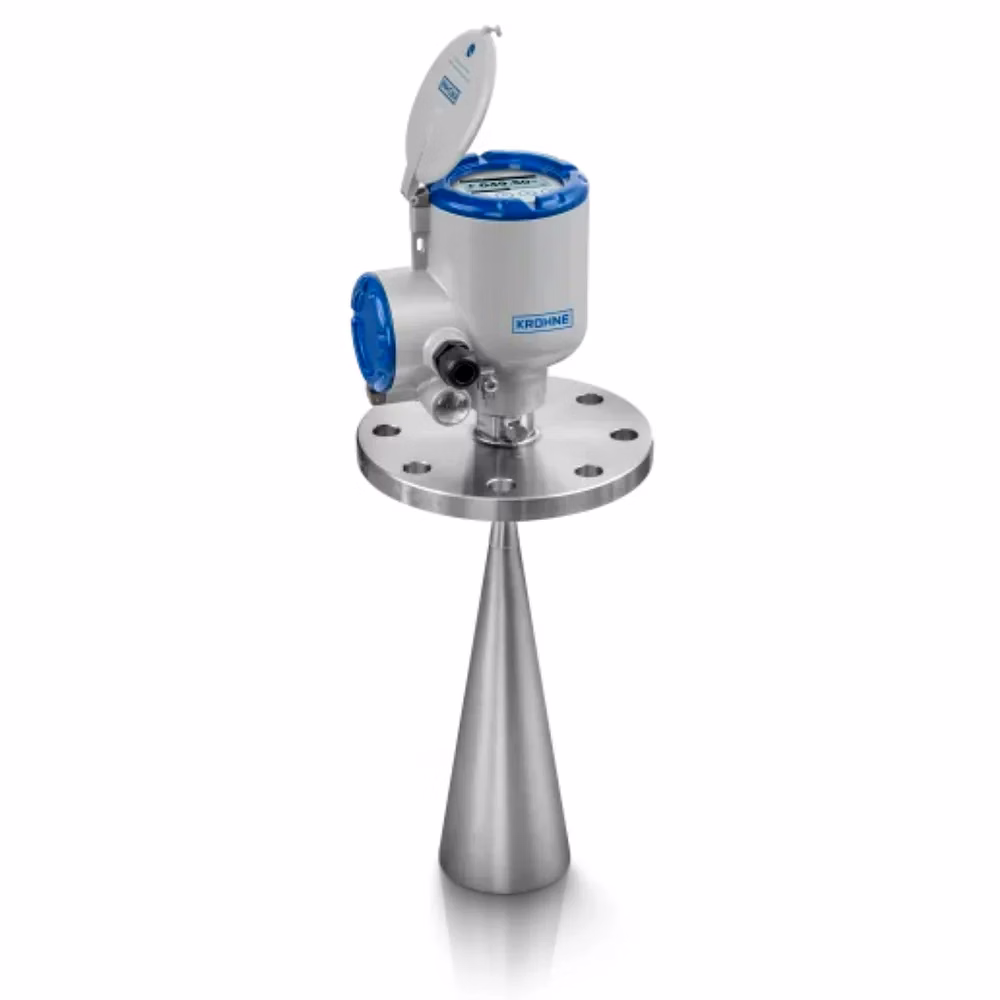

OPTIWAVE 5400 Radar Level Transmitter – FMCW Liquid-Process Radar

OPTIWAVE 5400 is a non-contact FMCW radar level transmitter optimized for liquid level measurement in basic process applications and storage tanks. Utilizing high-linearity frequency-modulated continuous-wave sensing, the instrument delivers repeatable distance measurement with minimal sensitivity to vapor, foam, or moderate surface turbulence. The unit architecture includes configurable antenna angles and signal-processing presets to minimize multiple reflection issues in small vessel geometries. Units are supplied with verification logs and installation instructions, ensuring supply-readiness for scaled deployments and OEM projects. Packaging utilizes shock-mount crates and antenna covers to preserve RF alignment during transit. This component is essential for facilities requiring reliable liquid level measurement without frequent recalibration, providing documented performance baselines for site acceptance testing and industrial SCADA integration.

Key Features

• Non-contact FMCW sensing architecture → eliminates measurement errors caused by liquid conductivity and prevents sensor fouling in viscous or coated media.
• Adaptive signal logic → utilizes pre-configured filters to discriminate primary surface echoes from secondary reflections caused by headspace obstructions or vapor.
• Digital diagnostic telemetry → provides real-time echo-spectrum health and signal strength metrics to simplify remote troubleshooting and site commissioning.

Technical Attributes

• Measurement Principle: FMCW distance profiling → selection parameter for ensuring accuracy across varied liquid dielectric constants.
• Outputs: Analog 4–20 mA + HART / Digital → determines the level of monitoring granularity and control system compatibility.
• Mounting: Standard Flange Adapters → selection parameter defining mechanical compatibility with existing process connections.
• Process Tolerance: Vapor and Foam ready → identifies the requirement for specific signal damping and frequency tuning in difficult tanks.

FMCW Liquid Radar Design and Sensing Logic of the OPTIWAVE 5400

The technical framework of the OPTIWAVE 5400 Radar Level Transmitter utilizes a chirped frequency-modulated continuous-wave (FMCW) transceiver designed to detect the surface of liquid media through non-contact sensing. The structural reasoning for this architecture is to provide immunity to the "dielectric variations" that impair ultrasonic or contact sensors—a failure in the frequency-sweep linearity results in "ghost surface" detections, where the transmitter reports a level that does not exist. Measurement physics rely on the intermediate-frequency (IF) processing of returned echoes; a failure in the RF front-end—due to localized thermal stress or power surging—results in "signal fading," manifesting as erratic level jumps and a total loss of loop control. This failure mode leads to tank overfills and potential pump cavitation. The antenna geometry and frequency are tuned to provide a stable beam and reduce the "multipath reflections" common in small vessels with internal piping. Quality consistency is managed through serialized echo-profile reports that document the unit's measurement precision and signal-to-noise ratio under full-range testing, providing B2B facility managers with a verifiable performance baseline.

Functional Performance and Operational Stability in Basic Processes

Operational efficiency is achieved through the device’s ability to deliver stable level data even with surface agitation and moderate vapor clouds in the tank headspace. Functional performance centers on the unit’s adaptive algorithms that prioritize the primary surface echo while suppressing spurious returns from internal vessel structures—a failure to implement this logic results in "clutter locking," where the radar fixates on a static fixture rather than the rising liquid level. The 5400 utilizes high-speed digital signal processing to filter out electrical noise from nearby high-power pumps—a failure to suppress this noise results in "signal jitter," decommissioning the feedback control for chemical dosing pumps. If the electronics module detects an internal logic fault, it triggers a fault signal via the 4–20 mA loop, allowing for event-driven maintenance before an operational failure occurs. Thermal management uses heat-spreading enclosures to maintain component integrity in hot process environments. A failure in the enclosure seal—due to incorrect installation—leads to humidity ingress into the RF bay; this results in "signal attenuation" and potential failure of the transceiver circuitry. By providing a reliable and maintenance-free signal, the radar transmitter effectively improves the facility's inventory accuracy, reducing the need for manual tank gauging and its associated safety risks.

Institutional Deployment and Logistical Readiness for Liquid Units

Designed for storage tanks, process vessels and basic liquid-control loops, the OPTIWAVE 5400 is configured for the logistical requirements of multimodal multi-site procurement. Units ship in shock-mount crates with specialized antenna covers to prevent mechanical damage and RF misalignment during transport. Failure to implement shock-mitigating packaging can lead to "transceiver shift," which manifests as a significant loss of signal accuracy upon site commissioning. For international procurement, supply-readiness is supported through lot-specific test certificates and compliance declarations documenting safety standards (CE/IEC). Export-ready documentation include unit-level configuration snapshots and installation checklists provided with each consignment to facilitate rapid site integration. Packaging utilize moisture-barrier covers and desiccant to prevent corrosion of the high-frequency terminals during maritime freight. OEM branding and pre-configured firmware options are available for system builders requiring branded measurement suites. This high-authority approach ensures the procurement team receives verified, site-ready hardware that meet the performance and safety requirements of global manufacturing markets, providing the technical transparency required for large-scale energy accounting and asset tracking.
