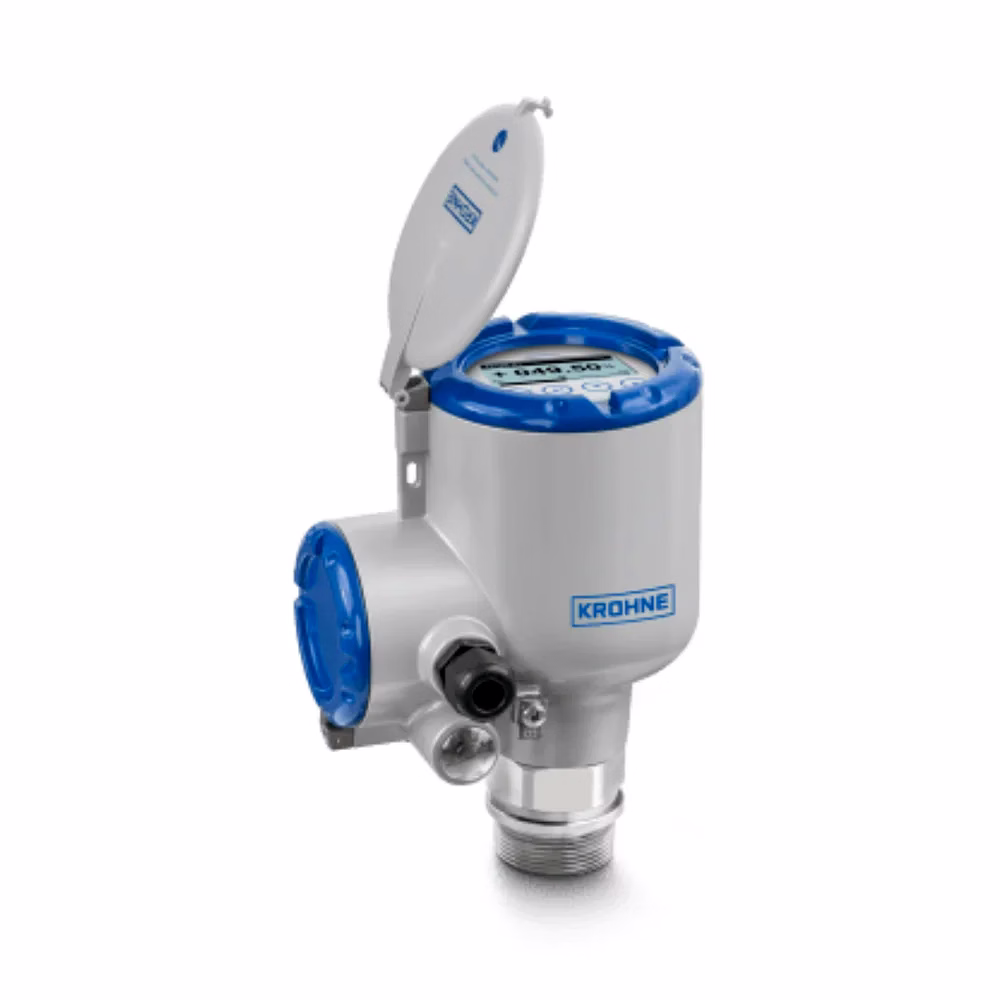

OPTIWAVE 7500 FMCW Radar – Narrow-Tank Liquid Measurement Instrument

OPTIWAVE 7500 is a high-frequency (80 GHz) FMCW radar level transmitter specifically engineered for liquid measurement in narrow tanks and vessels characterized by internal obstructions. Utilizing narrow-beam antenna technology and advanced spectral processing, the instrument resolves the liquid surface while discriminating false reflections from agitators, heating coils, or baffles. The unit architecture features a focused 4° beam, minimizing wall-interference in confined geometries where traditional radar or ultrasonic methods fail. Units ship with traceable calibration records and configuration snapshots, ensuring supply-readiness for chemical storage and process utility reservoirs. Packaging utilize electrostatic protection and foam-molded inserts to protect the sensitive transceiver during transit. This metering component is essential for facilities requiring non-contact, high-resolution level feedback with documented compliance for site acceptance testing and PLC integration.

Key Features

• 80 GHz FMCW Narrow-beam technology → concentrates energy into a 4° beam to pass between internal obstructions and avoid tank wall interference for precise readings.
• Adaptive signal-processing algorithms → execute real-time "echo-masking" to ignore static reflections from baffles or agitators, ensuring measurement stability.
• Non-contact measurement architecture → eliminates the requirement for mechanical probes, preventing sensor wear in corrosive media and simplifying hygienic validation.

Technical Attributes

• Measurement Principle: 80 GHz FMCW → selection parameter defining accuracy (±2mm) and beam footprint for obstructed environments.
• Minimum Tank Diameter: Application-specific → determines the suitability of the focused antenna for small-scale process vessels.
• Output Interface: 4–20 mA + HART / Digital → selection parameter for direct integration with DCS and asset management software.
• Calibration: Serialized Configuration Snapshot → provided to support site commissioning and institutional procurement quality checks.

Sensor Architecture and Signal Processing Logic of the OPTIWAVE 7500

The technical framework of the OPTIWAVE 7500 Radar Level Transmitter utilize an advanced 80 GHz transceiver coupled with a focused Lens or Drop antenna. The structural reasoning for the 80 GHz frequency is to achieve "geometric selectivity"; by concentrating the microwave energy into a narrow beam, the radar can measure the liquid level between agitator blades or around internal cooling coils without triggering "false surface" detections. measurement physics rely on the frequency shift of a continuous chirp; a failure in the linear ramp generator results in "phase noise," where the transmitter cannot distinguish the surface echo from the tank bottom reflection. This failure mode leads to erratic level reports and potential overfills—a catastrophic event in high-mass chemical storage. The unit utilizes "adaptive gating" that effectively masks out known static interferences. Quality consistency is managed through serialized calibration records that document the unit's zero-point and span accuracy against traceable standards. Failure to maintain a stable RF center frequency results in measurement drift, which manifests as inventory accounting errors in tall, narrow storage vessels. The internal PCBA is conformally coated to protect against the humid atmospheres common in outdoor tank farms.

Functional Performance and operational stability in Obstructed Tanks

Operational efficiency is achieved through the transmitter’s ability to maintain a locked surface echo even during high-agitation cycles or boiling events. functional performance centers on the unit’s signal-to-noise ratio; a failure to management the "return-signal gain" results in the sensor losing the liquid surface during heavy foaming—a failure mode that decommissions the automated level control loop. The 7500 utilizes advanced spectral analysis to track the echo peak across the entire measurement range. In real operational scenarios, a failure in the moisture seal—due to incorrect flange bolting—results in humidity accumulation on the lens antenna, causing "signal attenuation." The unit includes an integrated lens-cleaning or purge connection to mitigate buildup in viscous or crystallizing media. If the internal diagnostic module detects a hardware failure, it triggers a fault signal via the digital interface, providing B2B facility managers with event-driven maintenance data. By providing a stable non-contact signal, the transmitter improves the reliability of localized process nodes, reducing the requirement for hazardous manual interventions in pressurized or chemically aggressive vessels, effectively lowering the facility OPEX.

Institutional Deployment and Logistical Readiness for Export Processes

Designed for chemical storage, process tanks, and utility reservoirs with complex internal geometries, the OPTIWAVE 7500 is configured for the logistical requirements of multimodal procurement. Units ship in ESD-safe crates with foam-molded inserts to protect the sensitive 80 GHz transceiver and antenna assembly during multimodal transport. Failure to implement shock-mitigating packaging results in "waveguide displacement," which decommissions the unit's calibration upon arrival. For international procurement, supply-readiness is supported through serialized calibration reports and configuration snapshots (ISO/CE). Export-ready documentation include material declarations and terminal pinout diagrams provided with each shipment to facilitate institutional asset registration. Packaging utilize moisture-barrier wrapping and desiccants to prevent finish degradation during maritime freight. OEM private-label marking and custom labeling are available for system builders requiring branded measurement suites. This high-authority approach ensure procurement teams receive verified, site-ready hardware that meet the performance and safety requirements of global manufacturing markets, providing the technical transparency required for large-scale inventory accounting and asset tracking.
