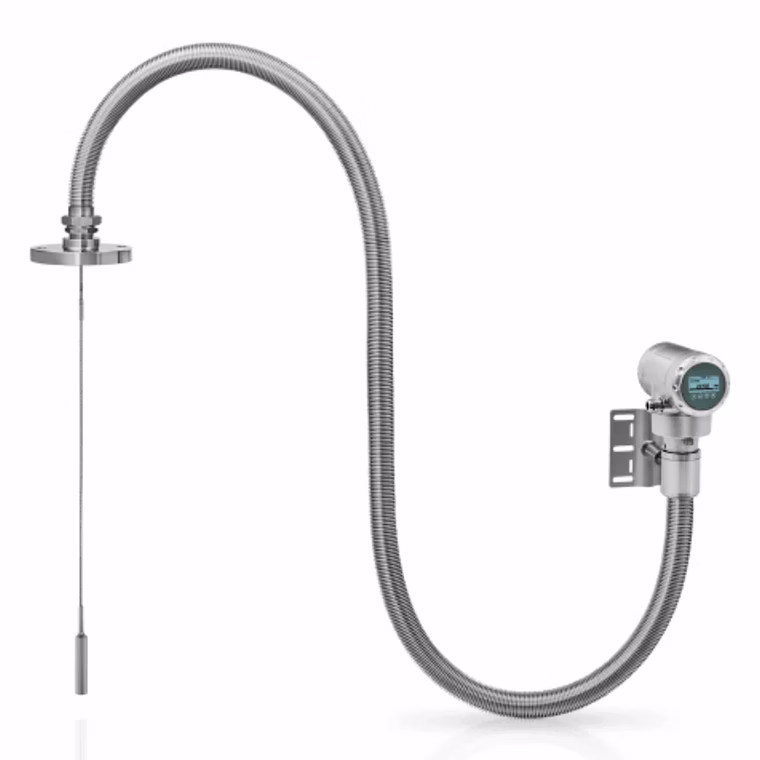

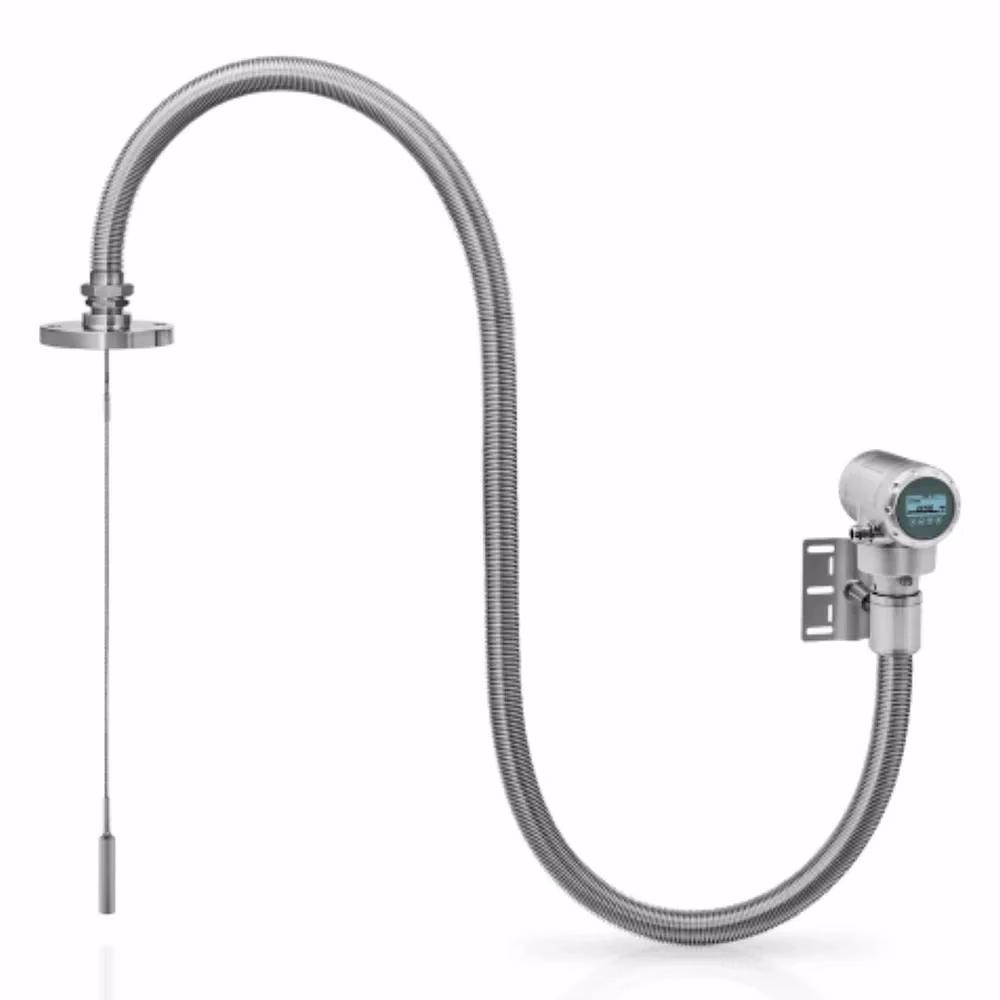

POWERFLEX 2200 Guided Radar – Guided-Wave TDR Sensor Instrument

POWERFLEX 2200 Guided Radar (TDR) is a precision level transmitter engineered for liquids and solids measurement in high-safety and constrained vessel applications. Utilizing Time-Domain Reflectometry (TDR) logic, the instrument channels short-duration electromagnetic pulses along a dielectric guide (probe), delivering stable readings even in media with low dielectric constants or foaming surfaces. The unit architecture emphasizes probe length customization and serialized functional verification to maintain traceability for safety-critical installations in the nuclear and chemical industries. Units are packed in compliant crates with electrostatic and vibration protection, ensuring supply-readiness for international projects. Deliverables include functional verification reports and configuration snapshots, providing institutional buyers with the technical depth required for site acceptance testing and asset registration.

Key Features

• Guided-wave TDR probe → provides a confined signal path for precise level detection in complex vessel geometries and foam-prone surfaces.
• Dielectric stability logic → delivers consistent measurement accuracy regardless of variations in the media's dielectric constant.
• Probe length customization → adapts to specific vessel depths up to 60 meters without signal degradation or loss of resolution.

Technical Attributes

• Probe Material: Selection based on chemical compatibility → critical for containment boundary and leak integrity.
• Signal-Processing Bandwidth: High-resolution timing → affects response time and the ability to detect interface levels.
• Isolation Rating: Certified intrinsic safety/nuclear-grade → selection parameter for hazardous or high-safety environments.
• Output Interface: 4–20 mA + HART/Digital → integration choice for PLC, DCS, and safety-instrumented systems.

Probe Engineering and Signal Propagation Logic of POWERFLEX 2200 TDR Sensors

The technical framework of the POWERFLEX 2200 Guided Radar (TDR) level transmitter utilize a guided-wave probe that channels a nanosecond electromagnetic pulse along its length. When the pulse encounters a medium with a different dielectric constant (εr), a portion of the energy is reflected back to the transmitter electronics. This architecture allow the sensor to precisely calculate the "time-of-flight," converting it into a distance measurement with sub-millimeter repeatability. The structural reasoning for the guided-wave approach is to provide immunity to the "multipath reflections" and signal scattering that impair unguided radar in narrow vessels with internal piping. Without this confined signal path, measurement "dead zones" and false-level spikes would occur, potentially leading to tank overfills or dry-run pump damage—a failure mode that causes catastrophic production losses. Manufacturing include rigorous 100% functional verification of the timing electronics and dimensional inspection of the probe assembly. Quality consistency is maintained through traceable serial numbers that link each unit to its material certificates (EN 10204 3.1) and functional verification logs.

Functional Performance and Operational Stability in High-Safety Environments

Operational efficiency is achieved through the transmitter’s ability to deliver stable readings in environments where dielectric variability or foaming complicates unguided techniques. TDR measurement is minimally affected by buildup on the probe or vapor clouds in the headspace, reducing the frequency of on-site cleaning and manual verification. The electronics are housed in shielded, IP66/IP67 enclosures to limit electromagnetic interference (EMI) and to preserve signal integrity in dense instrumentation cabinets. If the probe insulation becomes compromised due to chemical attack or mechanical stress, the integrated diagnostics report a "signal strength" alarm, allowing for preventive maintenance before a complete loss of measurement occurs. In the nuclear and chemical industries, this predictive health monitoring is a critical safety standard. The transmitter supports remote configuration and diagnostics, enabling technicians to analyze pulse-echo profiles and tune the sensor from the safety of the control room. This systematic approach ensure the POWERFLEX 2200 provides a high-fidelity data stream for both safety interlocks and inventory management, effectively improving the overall reliability of the vessel control system.

Institutional Deployment and Logistics for High-Precision Sensors

Intended for safety-critical tanks and vessels, the POWERFLEX 2200 is configured for the logistical requirements of global infrastructure projects. Units are packed in reinforced crates with internal bracing to secure the long probes against bending and mechanical shocks during multimodal transport. Failure to implement probe stabilization in shipping can result in microscopic displacement of the coaxial feed, leading to signal attenuation and loss of calibration. For international procurement, supply-readiness is supported through lot-specific functional test reports and compliance declarations documenting electrical and functional tests. Export-ready documentation include packing manifests and material trace records to facilitate regulatory review and institutional asset registration. OEM configuration options address unique connector styles and labeling requirements, allowing system integrators to deliver branded, pre-configured measurement suites. This high-authority documentation ensures that the transmitter meets the technical performance and safety requirements of global industrial markets, providing a traceable and durable solution for high-accuracy level control in constrained or hazardous environments.
