OPTIWAVE 6400 Radar Level Transmitter – FMCW Solids-Level Radar

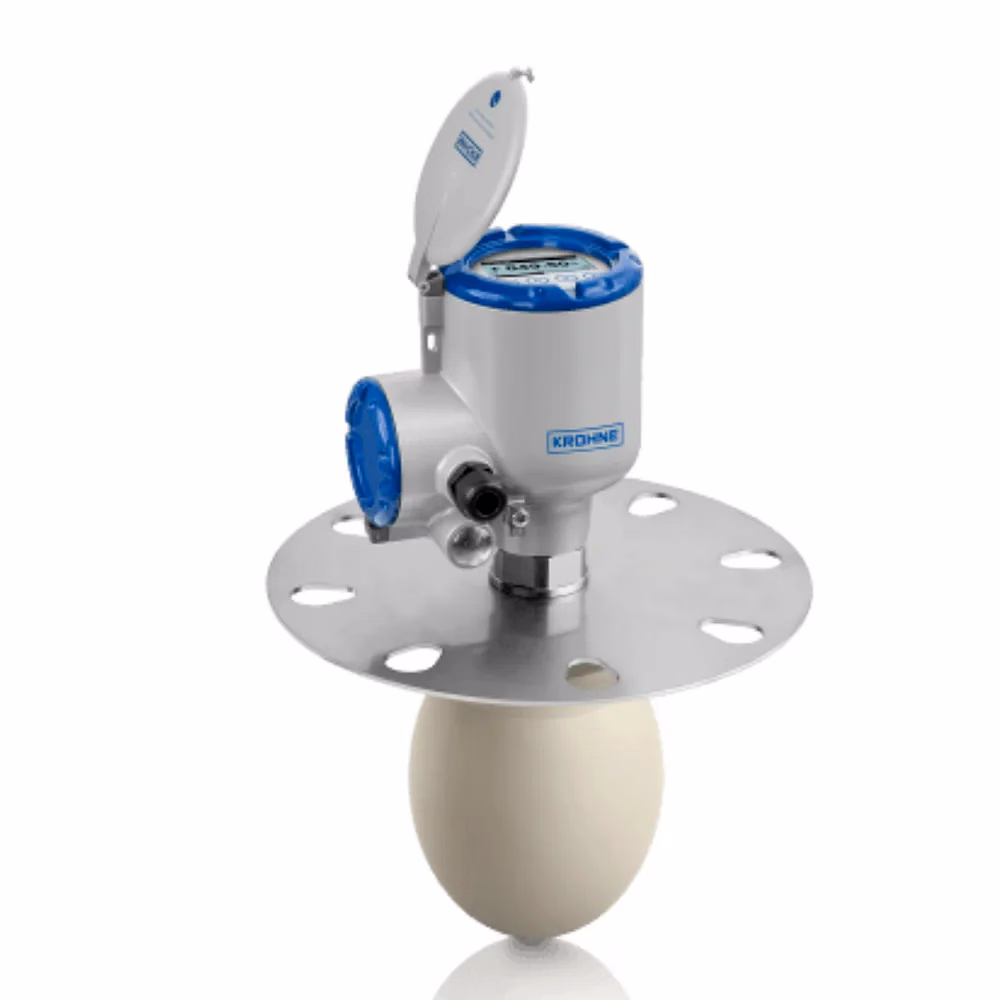

OPTIWAVE 6400 is an 80 GHz frequency-modulated continuous-wave (FMCW) radar transmitter engineered for continuous level measurement of solids from fine powders to coarse rocks. Utilizing high-dynamic-range reflectivity detection, the sensor delivers repeatable distance measurement even in high-dust atmospheres. The unit architecture includes multiple antenna options and signal-processing presets to compensate for varied bulk-solid dielectric constants and surface pile angles. Units are configured for project supply, shipping with per-unit RF performance reports and antenna selection guides. Packaging utilizes vibration-damped crates and sealed containers to protect the RF alignment during transit. This component is essential for facilities requiring non-contact measurement with documented performance verification for automated inventory management and SCADA integration in abrasive solids environments.

Key Features

• 80 GHz FMCW processing technology → provides superior reflectivity detection and narrow beam footprints to ignore high-dust events and airborne particulates during pneumatic filling.
• Adaptive signal filtering presets → utilizes pre-configured algorithms to compensate for varying dielectric constants across different materials, preventing measurement signal loss.
• Non-contact sensing architecture → eliminates the requirement for probe maintenance and prevents mechanical wear or tensile stress from abrasive material flow in large silos.

Technical Attributes

• Measurement Span: Up to 100m → selection parameter defining the maximum vessel height coverage for large-scale industrial bunkers.
• Antenna Configuration: Horn or Drop → selection based on material piling angles and beamwidth requirements to avoid internal vessel obstructions.
• Output Interface: 4–20 mA + HART / Fieldbus → determines compatibility with automation systems and remote diagnostic granularity for maintenance teams.
• Process Tolerance: High-dust / Abrasive ready → identifies suitability for cement, grain, and mineral processing environments where standard sensors fail.

FMCW Radar Architecture and RF Component Logic of the OPTIWAVE 6400

The technical framework of the OPTIWAVE 6400 Radar Level Transmitter utilizes a high-frequency 80 GHz transceiver that emits a continuous, frequency-chirped microwave signal. Measurement physics rely on the frequency shift between the emitted and received signals; this FMCW architecture allows the unit to accurately separate the material surface echo from "clutter" caused by dust clouds and internal silo fixtures. The structural reasoning for the 80 GHz frequency is to achieve a narrow beam angle (typically 4°), which allow the radar to measure in tall, narrow vessels without triggering "false wall" detections. A failure in the RF oscillator—due to localized thermal drift or power instability—results in "frequency jitter," manifesting as erratic level spikes and a total loss of measurement confidence. This leads to silo overfills or "bridging" detections that decommission the inventory management system. The antenna geometry is optimized for high signal gain; if the antenna faceplate is incorrectly selected for the material dielectric (e.g., low-permittivity plastic pellets), the signal returns become too weak to penetrate the dust cloud, resulting in a "loss of echo" alarm. Quality consistency is managed through serialized RF sweep tests and echo-profile logging, providing the data needed for institutional safety audits.

Functional Performance and Diagnostic Dynamics in Solids Handling

Operational efficiency is achieved through the unit’s signal-processing presets, which allow B2B facility managers to tune the radar for materials as varied as fine flour or coarse ores. Functional performance centers on the unit’s ability to maintain a stable level signal during extreme dust events (e.g., pneumatic filling); failure to implement adaptive filtering results in the radar "locking" onto the dust cloud rather than the material surface—a catastrophic failure mode for automated filling systems. The unit utilize an integrated "confidence metric" that monitors signal-to-noise ratios; if buildup on the antenna exceeds set thresholds, the transmitter triggers a maintenance alarm before the measurement fails. Thermal management is critical for electronics longevity; the housing utilize segregated airflow and heat-shielding to maintain component integrity in hot silo environments. A failure in the enclosure seal results in dust ingress into the RF compartment—this leads to "signal attenuation" and potential board-level short-circuits. By providing a reliable non-contact signal, the radar transmitter effectively improves the facility's inventory accuracy, reducing the need for manual sounding and preventing the expensive downtime associated with material shortages.

Institutional Deployment and Logistical Readiness for Radar Systems

Designed for silos, bunkers, and bulk-handling nodes, the OPTIWAVE 6400 is configured for the logistical requirements of project-scale multi-site procurement. Units ship in RF-safe sealed containers with shock-absorbing inserts to prevent mechanical damage to the antenna feed and delicate microwave components during transport. Failure to use shock-protected packaging results in "feed displacement," which manifests as a significant loss of signal gain upon site commissioning. For international procurement, supply-readiness is supported through serialized RF test logs and compliance declarations (ATEX/IECEx). Export-ready documentation include unit configuration snapshots and installation checklists provided with each consignment to facilitate rapid site integration. Packaging utilize vapor-barrier liners and desiccant to prevent moisture-induced drift during maritime transport. OEM customization and private-label firmware profiles are available for system builders delivering branded instrumentation suites. This high-authority approach ensure procurement teams receive verified, site-ready instruments that meet the performance and safety requirements of global manufacturing markets, providing the technical transparency required for large-scale energy accounting and asset tracking.
