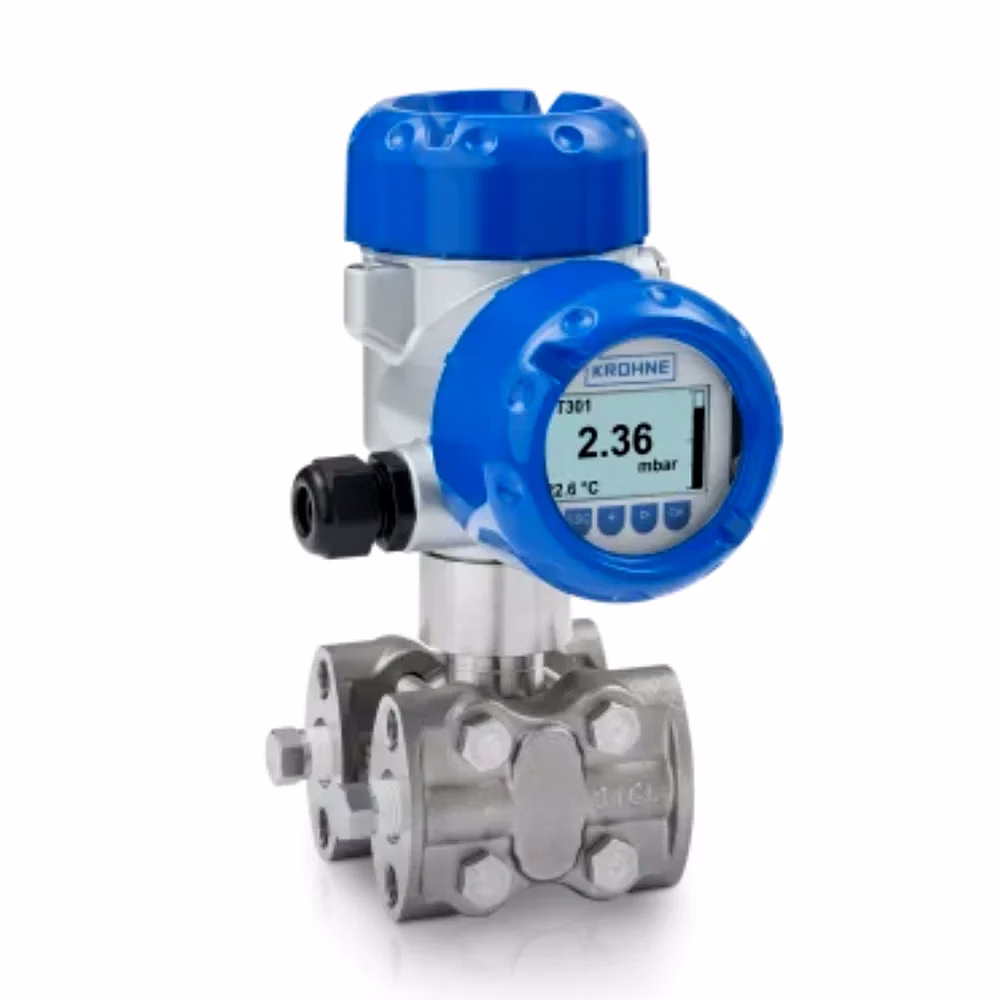

DP 7060 Differential Pressure Transmitter – Remote-sealed measurement Instrument

DP 7060 Differential Pressure Transmitter is a high-precision measurement instrument engineered for flow, level, and density applications using remote-sealed diaphragm technology. Utilizing matched sensing modules and selectable process connections, the unit provides stable differential measurements in liquids, gases, and multiphase process streams. The architecture features a diaphragm seal that prevents process-media ingress into the transducer cavity, making it suitable for viscous, corrosive, or high-temperature media. Units ship with traceable inspection reports and functional calibration data, ensuring supply-readiness for industrial control loops. Packaging supports consolidated orders with shock-absorbing inserts and sealed instrument cases. This component is essential for facilities requiring high-fidelity pressure feedback with built-in temperature compensation for stable operation across wide operating ranges.

Key Features

• Remote-sealed diaphragm assembly → ensures complete isolation of the sensing electronics from aggressive or viscous process media to simplify maintenance and extend sensor life.
• Matched sensor module architecture → reduces thermal and mechanical offset under fluctuating ambient conditions to maintain measurement repeatability.
• Temperature-compensated signal processing → utilizes built-in compensation routines to eliminate readback errors caused by process-temperature fluctuations.

Technical Attributes

• Measurement Types: DP, Level, Density → selection parameter defining the configuration of the internal sensing logic.
• Mounting Options: Manifold or Remote → selection impacts impulse-line routing requirements and signal response time.
• Output Signal: 4–20 mA + HART/Digital → determines compatibility with existing PLC and SCADA automation interfaces.
• Calibration: Factory zero/span certification → provided per unit to simplify field commissioning and site acceptance.

Sensing Architecture and Diaphragm-Seal Logic of the DP 7060

The technical framework of the DP 7060 Differential Pressure Transmitter utilizes a remote-sealed diaphragm architecture where a flexible metallic or polymer diaphragm is coupled to the transducer via a capillary system filled with a high-purity fill fluid (e.g., silicone oil). The structural reasoning for this design is to protect the sensitive silicon-based sensing element from "process poisoning"—a failure mode where viscous fluids solidify or corrosive chemicals etch the transducer, leading to permanent signal loss. Measurement physics rely on the displacement of the fill fluid as pressure is applied to the remote seal; a failure in the capillary seal—due to thermal expansion or mechanical stress—results in "oil leakage," manifesting as erratic zero-drift and a total loss of span accuracy. This leads to inaccurate tank level readings and potential overflow events. The transmitter utilizes "matched sensing modules" where both the high and low-pressure sides are electronically balanced to cancel out common-mode errors caused by static pressure shifts. Quality consistency is managed through serialized inspection reports that record the unit's linearity and hysteresis profile under full-range pressure cycles, ensuring the instrument meets the accuracy requirements of regulated process environments.

Functional Performance and Diagnostic Dynamics in Process Control

Operational efficiency is achieved through the unit’s integrated signal conditioning, which provides a linearized 4–20 mA output with optional HART diagnostics. Functional performance centers on the transmitter’s ability to maintain stable readings in variable-temperature environments; built-in routines compensate for the density changes in the fill fluid, preventing the "thermal drift" that commonly affects standard pressure sensors. In real operational scenarios, a failure to implement temperature compensation results in inaccurate density estimations, potentially causing procurement errors in custody-transfer applications. The DP 7060 features a modular electronics housing with sealed compartments to prevent atmospheric moisture from reaching the ADCs. If the electronics become compromised, the on-board diagnostics trigger a "hardware fail" alarm via the control loop, allowing for event-driven maintenance. The mounting flexibility of the remote-seal design allows B2B facility managers to locate the transmitter in accessible areas while the seals are mounted on tall vessels, effectively lowering the mean time to repair (MTTR) by eliminating the requirement for scaffolding during routine calibration checks.

Institutional Deployment and Logistical Readiness for Instrumentation

Designed for industrial flow and level measurement, the DP 7060 is configured for the logistical requirements of multimodal multi-site procurement. Units are packed in rugged instrument cases with foam-molded inserts and moisture-barrier film to protect the delicate diaphragms and electronics from environmental degradation during maritime transport. Failure to use shock-protected packaging results in "diaphragm denting," which irreversibly alters the sensor's spring constant and decommissions the unit before installation. For international procurement, supply-readiness is supported by lot-specific test certificates and compliance declarations (CE/IEC). Export-ready documentation includes technical specifications, zero/span configuration snapshots, and recommended impulse-line diagrams provided with each consignment. Packaging utilizes desiccant packs to prevent the oxidation of the electrical terminals during long-haul transit. OEM configuration options address unique process connection styles and branding requirements, allowing system integrators to deliver branded measurement suites. This high-authority approach ensures procurement teams receive verified, site-ready instruments that meet the safety and performance standards of global manufacturing markets, providing the technical transparency required for large-scale instrumentation upgrades and plant-wide standardization.
