WLC D1 Water Level Controller (with probe)

Precision pressure transmitter with switching contact and display.

OUTPUT SIGNAL: TWO SWITCHING OUTPUT (PNP/NPN) + 4...20 MA

IO-LINK: WITHOUT

The product is designed according to hygienic requirements and offers a high degree of process reliability. The nominal values set by default are between 400 mbar and 60 bar. The transmitter is used in such places as dairies and breweries.

Differential Pressure (DP) transmitters measure the difference between two pressures. Available make is SIEMENS, ABB, Honeywell. It has Display and 4-20 mA output with HART communication. If customer requires we can supply 3 -way manifold also

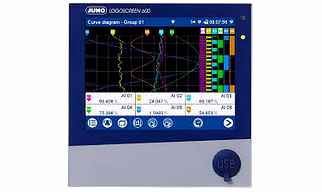

paperless recorders are ideally equipped to acquire, archive, and evaluate measured values that are subject to verification in a simple and tamper-proof manner. The modular paperless recorders can not only record temperatures and many other measured values, but also use them for control functions. Batch recording is also possible.

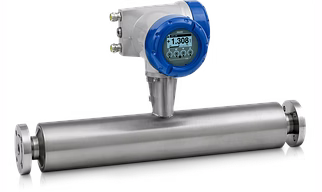

Coriolis Mass Flowmeter is used to measure Flow for non-conductive Liquids and Gases. A Coriolis mass flow meter directly measures the mass flow rate of fluids by exploiting the Coriolis effect. This effect is a force that acts on a moving mass in a rotating frame of reference. Specifically, when a fluid flows through vibrating tubes, the Coriolis force causes the tubes to deflect, and this deflection is directly proportional to the mass flow rate

For simple and cost-effective flow measurement of gases or liquids without auxiliary power

Glass and metal tube purgemeters for low-flow applications

Optional switches, 4...20mA, HART ® , FOUNDATION™ Fieldbus, Profibus-PA

Globally approved for use in hazardous areas and suited for safety related SIL 2 applications

Sophisticated flowmeters with integrated pressure and temperature compensation and integrated energy calculator for advanced energy measurement

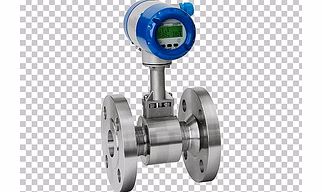

The vortex flowmeter is a broad-spectrum flow meter which can be used for metering, measurement and control of most steam, gas and liquid flow for a very unique medium versatility, high stability and high reliability with no moving parts, simple structure and low failure rate

A pressure transmitter, also known as a pressure transducer, is a device that converts the physical force of pressure into an electrical signal. This signal can then be used for monitoring, control, or display purposes. Essentially, it acts as a sensor that measures and communicates pressure information.

Electromagnetic Flow Meter is used to measure flow of conductive liquid in pipeline. Accurate measurement.

The electromagnetic flowmeter uses Faraday's Law of electromagnetic induction to measure the process flow. When an electrically conductive fluid flows in the pipe, an electrode voltage E is induced between a pair of electrodes placed at right angles to the direction of magnetic field.
