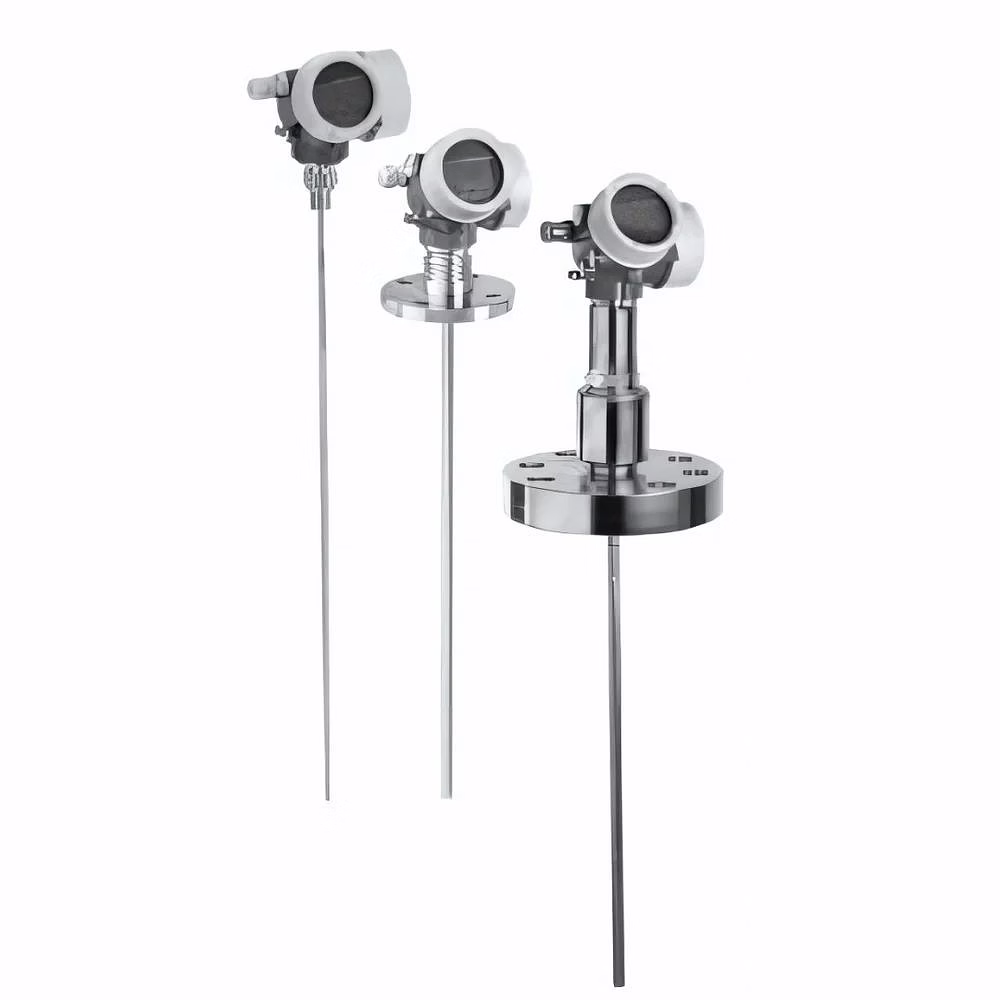

Stainless Steel Endress+hauser Levelflex FMP54 – Guided Radar Transmitter

Stainless Steel Endress+hauser Levelflex Fmp54 is a high-precision guided-wave radar (TDR) instrument engineered for continuous level measurement of liquids and interfaces in demanding process environments. Utilizing a probe-mounted stainless steel construction, the unit provides superior mechanical stability and chemical resistance for aqueous and mildly aggressive media. The architecture features high-resolution signal processing to maintain stable level detection in the presence of vapor, foam, or variable dielectric constants. Available in large-volume formats with lot-based traceability, units are supplied with comprehensive technical specifications and factory test certificates. Supply-readiness is managed through per-lot quality inspection, addressing the requirements of industrial procurement teams and OEM manufacturing partners seeking verified instrumentation for plant standardization and healthcare-grade fluid systems. Packaging utilize palletized wooden crates and anti-vibration foam for transit security.

Key Features

• Stainless steel probe and housing → provides high corrosion resistance and mechanical wear durability for industrial and sanitary wash-down environments.
• Guided-wave TDR sensing → utilizes nanosecond pulse guidance along the probe to ensure consistent echo stability in vapor-laden or foamy vessels.
• Integrated process telemetry → features 4–20 mA analog outputs with digital overlays (HART/Modbus) for seamless integration with PLC/DCS automation frameworks.

Technical Attributes

• Measurement Principle: TDR Guided Radar → selection parameter defining accuracy (±2mm) and immunity to headspace turbulence.
• Wetted Materials: 316L Stainless Steel → selection parameter for ensuring compatibility with process fluids and cleaning agents.
• Mounting Standard: Flange or Threaded → determines mechanical integration with pressurized vessels and identifies maintenance accessibility.
• Traceability: FAT + Calibration logs → provided per serial number to support institutional asset registration and site commissioning.

Probe Construction and Traceability Logic of the Levelflex FMP54

The technical framework of the Stainless Steel Endress+hauser Levelflex Fmp54 utilizes Time-Domain Reflectometry (TDR) where nanosecond electromagnetic pulses are channeled along a solid rod or cable probe. The structural reasoning for the stainless steel construction is to provide a "dielectric wave-guide" that remains immune to the signal scattering that decommissions unguided radar in narrow or obstructed vessels. measurement physics rely on the pulse reflection at the material interface; a failure in the probe's electrical insulation—due to localized chemical etching or high-temperature seal breach—leads to "impedance mismatch," manifesting as erratic level spikes and a total loss of Span accuracy. Quality consistency is managed through serialized factory acceptance tests documenting pulse velocity and isolation resistance. The internal layout utilize high-grade hermetic seals to protect the transceiver electronics from "capillary ingress" of process vapors. failure to management these seals during installation—due to incorrect flange torque—leads to moisture migration into the RF compartment, effectively decommissioning the measurement loop and potentially triggering an electronics failure.

Functional Performance and Operational Stability in Aggressive Media

Operational efficiency is achieved through the transmitter’s ability to provide simultaneous measurement of total level and interface level (e.g., water under oil), an essential operational standard for separation processes. Functional performance centers on the unit’s signal processing logic; the FMP54 utilizes "echo-mapping" algorithms that mask static reflections from internal tank supports or cooling coils. In a real operational scenario, a failure to manage "probe buildup"—especially in viscous or crystallizing liquids—results in signal attenuation. To mitigate this, the FMP54 utilize adaptive gain control to track the active surface reflection. If the unit detects an internal logic fault, it triggers a diagnostic alarm via the digital interface, allowing B2B facility managers to implement event-driven maintenance. thermal management is critical for the sensor head; the unit features a thermally-decoupled flange to protect the signal converters from hot process vessels. By providing a stable non-contact signal, the transmitter improves the overall reliability of the storage node, reducing the need for manual site interventions and hazardous sounding.

Institutional Deployment and Logistical Readiness for OEM Logistics

Designed for chemical storage, water treatment, and healthcare-grade fluid systems, the Levelflex FMP54 is configured for the logistical requirements of multimodal procurement. Units are packed in reinforced wooden crates with internal rigid bracing to protect the long probes from bending or kinking during transport. Failure to implement probe-stabilized packaging can lead to "coaxial misalignment," which manifests as a significant loss of signal accuracy upon site commissioning. For international procurement, supply-readiness is supported by lot-specific test certificates and material declarations provided with each consignment (ISO 10204 3.1). Export-ready documentation include unit configuration snapshots and certificates of conformity to facilitate customs review and institutional asset registration. Packaging utilize moisture-barrier wrapping and desiccants to prevent finish degradation during maritime logistics. OEM customisation through specialized flange patterns and private-label marking are supported for system builders requiring branded measurement skids. This high-authority approach ensures procurement teams receive verified hardware that meet the performance and safety requirements of global manufacturing markets.
