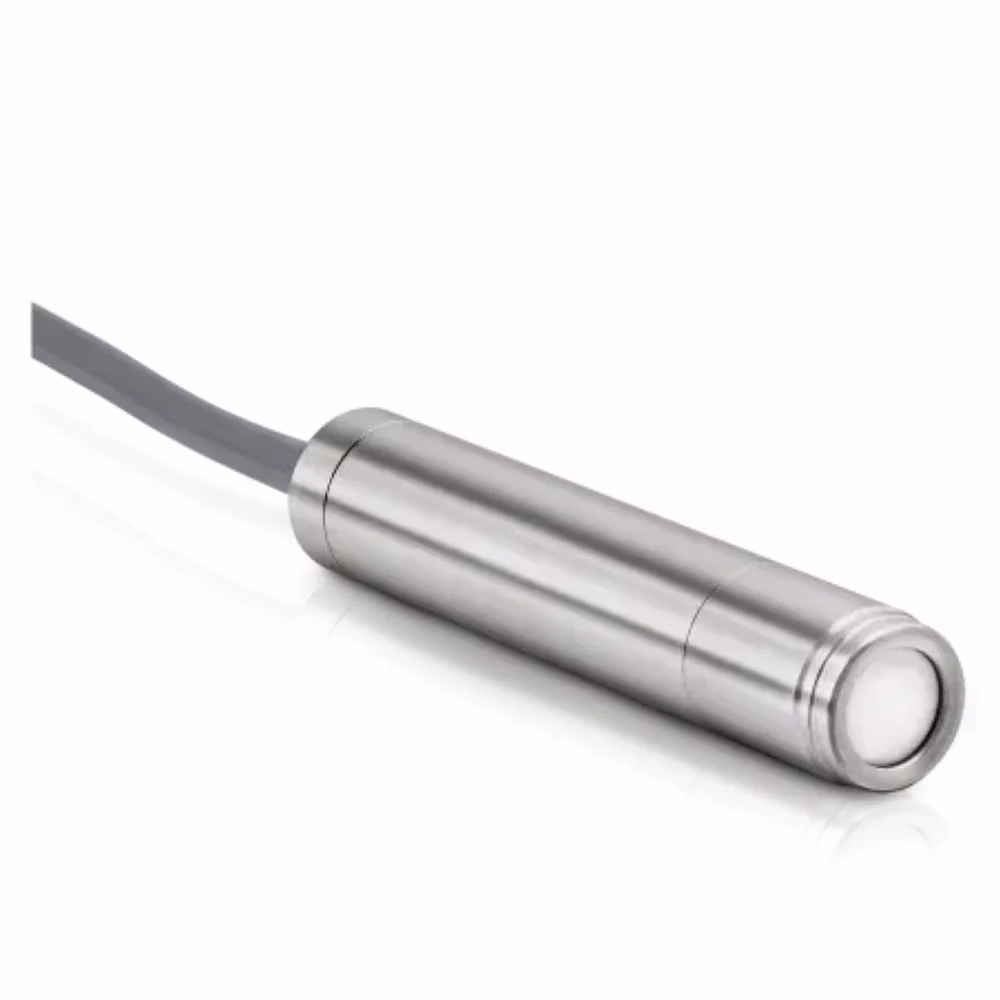

LC 1010 Submersible Level Probe – Sealed Water & Wastewater Sensor

The LC 1010 Submersible level probe is a sealed immersion sensor designed for continuous level monitoring in water and wastewater applications. The probe uses corrosion‑resistant wetted materials and robust cable glands to maintain dielectric integrity during prolonged submersion and variable pressure cycles. Units are shipped with per-lot functional tests and insulation resistance records. Packaging options protect the cable and probe head for consolidated deliveries and OEM panel integration; installation guidance includes recommended cable routing and anchoring to reduce motion-induced wear.

Key Features

• Sealed submersible housing → maintains insulation under continuous immersion to prevent signal drift.
• Cable gland and strain-relief design → reduces water ingress and mechanical fatigue at the cable exit.
• Corrosion-resistant wetted parts → suitable for treated water and typical wastewater effluents.

Technical Attributes

• Probe construction: sealed sensor head with molded cable gland → minimizes ingress risk.
• Compatibility: designed for clean and wastewater environments → resists biofouling.
• Cable options: polyurethane or polyethylene jackets → selection based on abrasion resistance.
• Insulation testing: per-unit measurement documented → aids site acceptance testing.

Sealed Immersion Architecture and Electrochemical Resilience of the LC 1010

The LC 1010 Submersible level probe features a sealed sensing element and reinforced cable gland to ensure reliable operation in continuous immersion applications. Wetted components are selected to balance corrosion resistance against cost, with options for polymers or stainless alloys depending on nominal effluent chemistry. The molded cable gland creates a mechanical barrier to capillary action and reduces the risk of moisture wicking into internal cavities. Measurement stability is governed by the integrity of the pressure-sensing diaphragm; a failure in the structural seal results in electrolyte ingress, leading to "signal shunting" and erroneous level readings that can trigger false low-level pump shutdowns or overflow alarms in wastewater stations. Quality consistency is maintained via 100% factory pressure testing, ensuring that the sensor housing maintains its IP68 rating even at the maximum rated submersion depth. Without this rigorous structural verification, the probe is susceptible to "diaphragm fatigue," where the repetitive cyclic pressure of tank filling leads to microscopic fractures and sensor decommission.

Functional Performance and Operational Efficiency in Utility Networks

Reliability in submersible probes depends on cable integrity, gland sealing and material compatibility with process liquids. The LC 1010 provides stable output by isolating the sensing electronics within a pressure-tolerant head and by using jacketed cable to resist abrasion from suspended solids. Practical installation uses adequate strain relief and a guided anchor point to reduce cable movement that can fatigue both the cable and gland. Operational efficiency is enhanced by the probe’s "self-cleaning" diaphragm profile, which minimizes product retention. Failure to clean the probe face regularly in high-solids effluents results in "crust formation," where dried solids block the pressure port, causing a "measurement freeze" failure mode. To mitigate this, the probe architecture allows for tool-free removal and visual inspection. The integrated signal conditioning electronics compensate for thermal expansion of the fill fluid, ensuring that temperature shifts in outdoor sumps do not translate to level errors. This systematic approach ensures that utility operators have a stable, low-maintenance asset for pump control and telemetry aggregation, effectively improving the uptime of water distribution networks.

Institutional Deployment and Logistical Readiness for Remote Sumps

Suited to water-treatment plants, pump-sump monitoring and OEM skids, the LC 1010 integrates into PLCs and telemetry systems with straightforward wiring options. Deployment guidance covers anchoring, minimum bend radii and recommended cleaning cycles to prevent biofouling. Packaging for consolidated shipments uses protective cable reels and moisture-barrier film to prevent the polyurethane jacket from "blocking" (sticking) during multimodal transport. Failure to implement reel-based packaging results in cable kinks, which can breach the internal atmospheric vent tube, rendering the barometric compensation non-functional and leading to permanent level errors. For international procurement, supply-readiness is supported through per-lot insulation resistance records and functional test certificates. Export-ready documentation includes technical specifications, wiring diagrams, and compliance declarations documenting electrical safety. OEM branding and customized signal scaling are available under contract, providing system integrators with verified hardware that meets the performance requirements of global utility markets. This high-authority documentation facilitates customs clearance and institutional asset registration for large-scale infrastructure projects.
