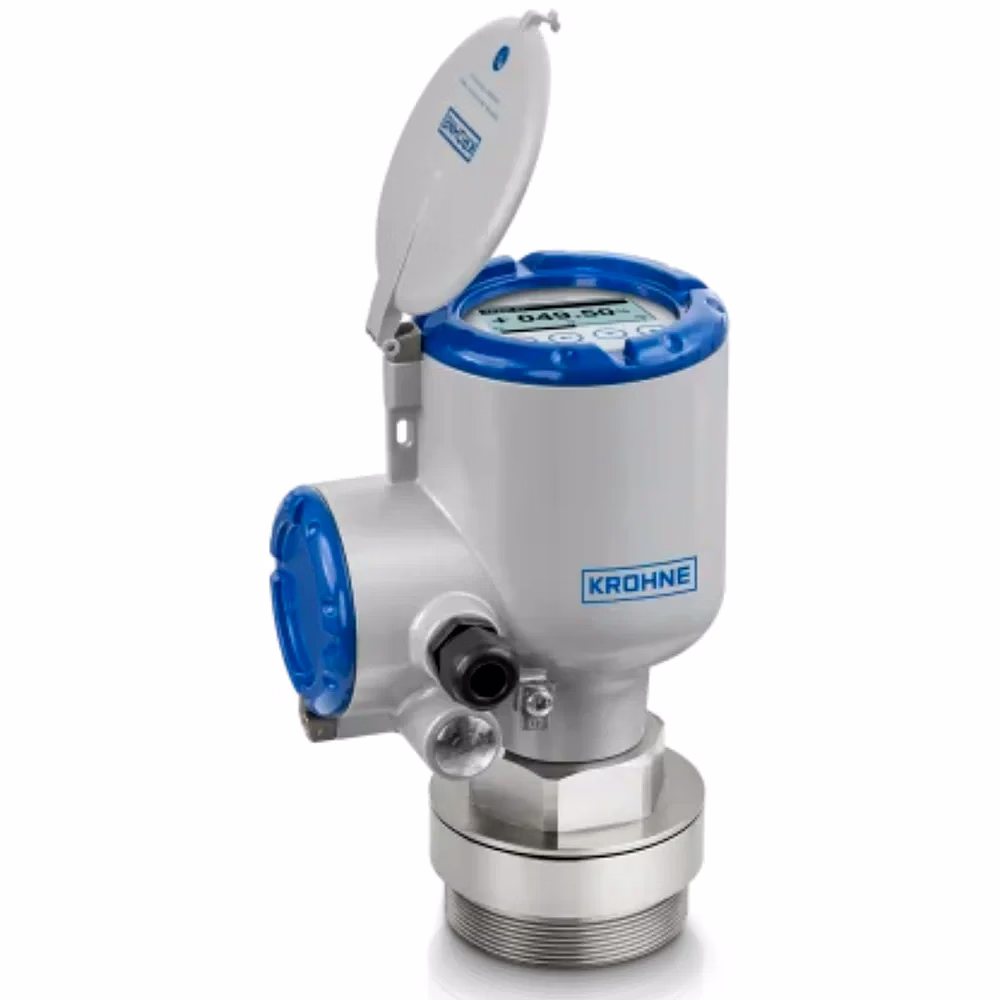

OPTIWAVE 6500 Radar – FMCW Level measurement Instrument

OPTIWAVE 6500 is a frequency-modulated continuous-wave (FMCW) radar level transmitter specifically tailored for powders and dusty atmospheres in industrial bulk handling. Utilizing a high-frequency antenna and advanced signal-processing algorithms, the sensor suppresses particulate noise to deliver consistent level readings in challenging process processes such as silos and hoppers. The unit architecture includes a focused antenna design to maintain beam integrity and minimize buildup effects on the faceplate. Units ship with sealed packaging and anti-static interior protection, ensuring supply-readiness for large-volume requests and OEM panel integration. Serialized calibration certificates and factory alignment data provide the technical depth required for site commissioning and regulatory review. This metering component is essential for facilities requiring non-contact, high-accuracy level detection in environments where dust impair traditional sensors.

Key Features

• FMCW radar processing → provides high-resolution reflectivity detection, significantly reducing false echoes in high-dust environments.
• Focused antenna architecture → maintains beam narrowness to minimize interference from internal vessel structures and buildup.
• Serial calibration record → documents baseline factory performance and zero-point calibration for simplified site commissioning.

Technical Attributes

• Measurement Range: Selection parameter for vessel height → determines suitability for silos versus hoppers.
• Beam Angle: Antenna-specific selection → affects sensitivity to internal obstructions and dust scattering.
• Enclosure Protection: IP66/IP67 ratings → selection parameter for suitability in washdown or dusty atmospheres.
• Signal Processing: Adaptive algorithms → determines immunity to broadband particulate noise and multipath reflections.

Sensor Construction and Signal Path Logic of the OPTIWAVE 6500

The technical framework of the OPTIWAVE 6500 Radar (FMCW) level transmitter utilize a 80 GHz high-frequency front end coupled to a focused Drop or Lens antenna. This FMCW architecture emits a continuous chirp and analyzes the return frequency shift to calculate distance with millimeter precision. The structural reasoning for the 80 GHz frequency is to achieve a narrow beam angle (typically 4°), which allows the radar to measure close to silo walls or around internal baffles without triggering "false surface" detections. Internal signal filters are engineered to attenuate the broadband scatter caused by airborne dust during filling operations. In real operational scenarios, a failure to suppress particulate noise results in erratic level readings or the sensor "locking" onto a dust cloud—a failure mode that causes hopper overfills and production downtime. The antenna faceplate is constructed from high-performance polymers (PEEK/PTFE) to resist material adhesion. Manufacturing include functional range testing and factory alignment data recorded per serial number to ensure consistent measurement performance across production lots.

Functional Performance and Operational Efficiency in Dusty Processes

Operational efficiency is enhanced through the transmitter’s ability to maintain a stable level signal even during extreme dust events, reducing the need for manual sounding or secondary point-level switches. FMCW processing improves range stability and reduces calibration drift caused by atmospheric variations within the silo. The unit supports remote configuration via HART or digital fieldbus protocols, allowing technicians to tune the "confidence thresholds" without accessing the top of the vessel—a critical safety standard for B2B facility management. Durable antenna materials and the optional purge/vent connections lower maintenance time related to faceplate buildup in abrasive bulk-solid processes. If the antenna becomes excessively coated, the integrated diagnostics trigger a health alarm before the signal-to-noise ratio falls below the measurement threshold. This predictive maintenance capability ensures that the level transmitter serves as a reliable asset in continuous production environments, providing accurate data for inventory management and automated vessel control loops.

Institutional Deployment and Logistics for Level Sensors

Designed for silos, hoppers, and bulk-handling nodes in the cement, grain, and chemical industries, the OPTIWAVE 6500 is configured for the logistical requirements of large-scale procurement. Units are packed in sealed anti-static bags with desiccant to prevent moisture-induced drift during storage. Multimodal transit protection include foam-inset crates and reinforced cartons to protect the sensitive RF alignment and antenna assembly. Failure to use shock-protected packaging results in microscopic displacement of the microwave feed, leading to a loss of signal sensitivity. For international projects, supply-readiness is documented through lot-specific calibration certificates and compliance declarations (CE/IEC). Export-ready shipments include packing lists and configuration snapshots for the delivered firmware build. OEM panel integration options and branded labeling are available for system builders requiring documented test reports for procurement review. This high-authority approach ensures the transmitter meet the technical specifications of institutional buyers and provide a traceable solution for complex bulk-solid measurement challenges.
