BM26A-3000 Magnetic Level Indicator – Magnetic Sight Gauge

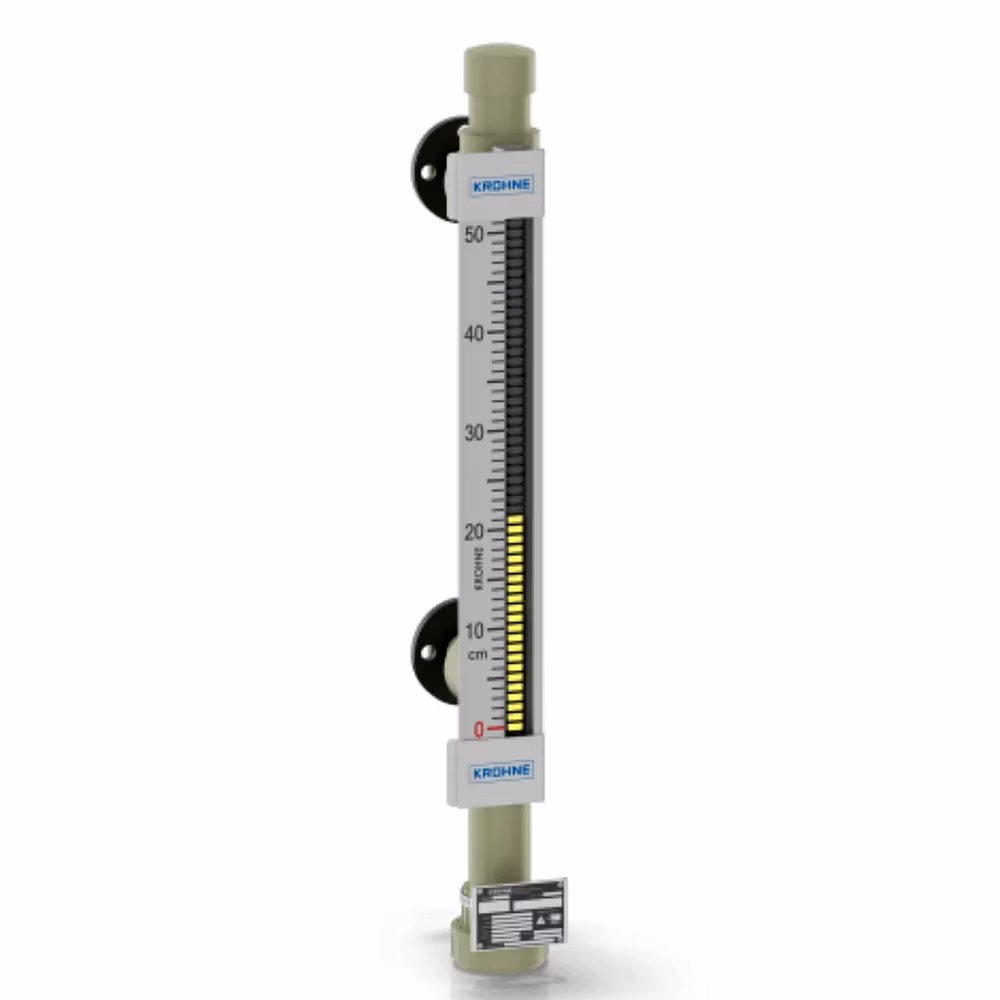

BM26A-3000 Magnetic Level Indicator is a non-invasive measurement assembly engineered for high-integrity level detection in corrosive and hazardous liquid storage. Utilizing a magnetically coupled float constrained within a bypass chamber, the unit delivers high-visibility visual indication without breaching the vessel's primary containment. The architecture is optimized for aggressive chemistries, featuring selectable wetted alloys and non-metallic liners to prevent structural degradation. Units are supplied with lot-level quality inspection and material trace records (EN 10204). Supply-readiness is managed through factory sweep tests and buoyancy verification, addressing the requirements of facility managers seeking maintenance-free, leak-proof level monitoring for chemical skids and water treatment plants. Packaging utilize corrosion-resistant cartons with foam-molded inserts to protect the indicator flags and float during multimodal transport.

Key Features

• Magnetic coupling isolation → provides a zero-leak measurement boundary by separating the indicator from process media, eliminating the risks associated with fragile glass sight gauges.
• Non-metallic liner options → features specialized coatings (PTFE/PP) to ensure compatibility with aggressive acids and solvents, extending the life of the bypass chamber.
• Modular mounting architecture → utilize standardized flanges and side-mount arrangements to simplify retrofits and maintenance on existing pressurized tanks.

Technical Attributes

• Wetted Materials: Selectable Alloys/Liners → selection parameter based on fluid specific gravity and chemical corrosivity profile.
• Pressure Class: Standard Process Ratings → defines the mechanical integrity of the chamber for pressurized storage applications.
• Temperature Range: -40°C to +300°C → determines suitability for high-mass energy systems and unconditioned plant environments.
• Indicator Type: Flag or Follower → selection parameter based on the required visual resolution and distance for site operators.

Construction, Materials and Traceability Logic of the BM26A-3000

The technical framework of the BM26A-3000 Magnetic Level Indicator utilizes a high-buoyancy magnetic float constrained within a non-magnetic guide tube (bypass chamber). The structural reasoning for this design is to create a "double-barrier" of containment—if the external indicator flags are damaged, the process fluid remains securely held within the metallic or lined chamber. measurement physics rely on the magnetic field coupling through the tube wall to actuate external bi-color flags. A failure in the float's structural integrity—due to localized chemical etching or pressure-induced collapse—results in the float sinking to the base of the chamber. This failure mode manifests as a permanent "low-level" reading regardless of actual volume, which can cause pump cavitation and catastrophic equipment damage. Quality consistency is managed through serialized hydrostatic tests and buoyancy verification documenting the float's tracking accuracy. The internal layout utilize high-coercivity magnets to ensure the coupling remains stable even after years of thermal cycling. failure to manage the "chamber alignment" during installation results in float friction and erratic readings, effectively decommissioning the manual backup system.

Functional Performance and Operational Efficiency in Corrosive Service

Operational efficiency is achieved through the unit’s ability to provide continuous, energy-free visual confirmation of vessel level—an essential operational standard for facilities during total plant power loss. functional performance centers on the unit’s support for auxiliary outputs; the BM26A-3000 can be fitted with magnetic limit switches or an electronic transmitter to provide remote alarms to the SCADA system. In a real operational scenario, a failure in the indicator's moisture seal leads to internal flag corrosion, which manifests as "stuck flags" that do not track the float. To mitigate this, the unit utilize hermetically sealed flag housings and UV-resistant materials. if the specific gravity of the media changes significantly from the design point—due to process upsets—the float will no longer track the interface accurately, decommissioning the measurement totals. By provides a stable and leak-proof visual signal, the indicator improves the overall reliability of the storage facility, providing the technical transparency required for institutional safety audits and environmental compliance. Thermal management is supported via optional chamber insulation to maintain media viscosity and float movement.

Institutional Deployment and Logistical Readiness for Export Processes

Designed for chemical processing, solvent storage, and hazardous-service tanks, the BM26A-3000 is configured for the logistical requirements of project-scale multi-unit procurement. Units ship in reinforced cartons with internal foam bracing to protect the long guide tubes from bending or racking during transport. Failure to implement rigid packaging can lead to "chamber warping," resulting in internal float jamming upon site commissioning. For international procurement, supply-readiness is supported through material declarations (MTR) and lot-specific test certificates provided with each consignment. Export-ready documentation include unit configuration snapshots and installation guides provided to facilitate institutional asset registration and customs review. Packaging utilize moisture-barrier wrapping and desiccants to prevent finish degradation of the metallic components during maritime logistics. OEM rebranding and custom mounting interfaces are available, allowing for branded instrumentation suites with serialized records. This high-authority approach ensures procurement teams receive verified hardware that meet the safety and performance requirements of global manufacturing markets.
