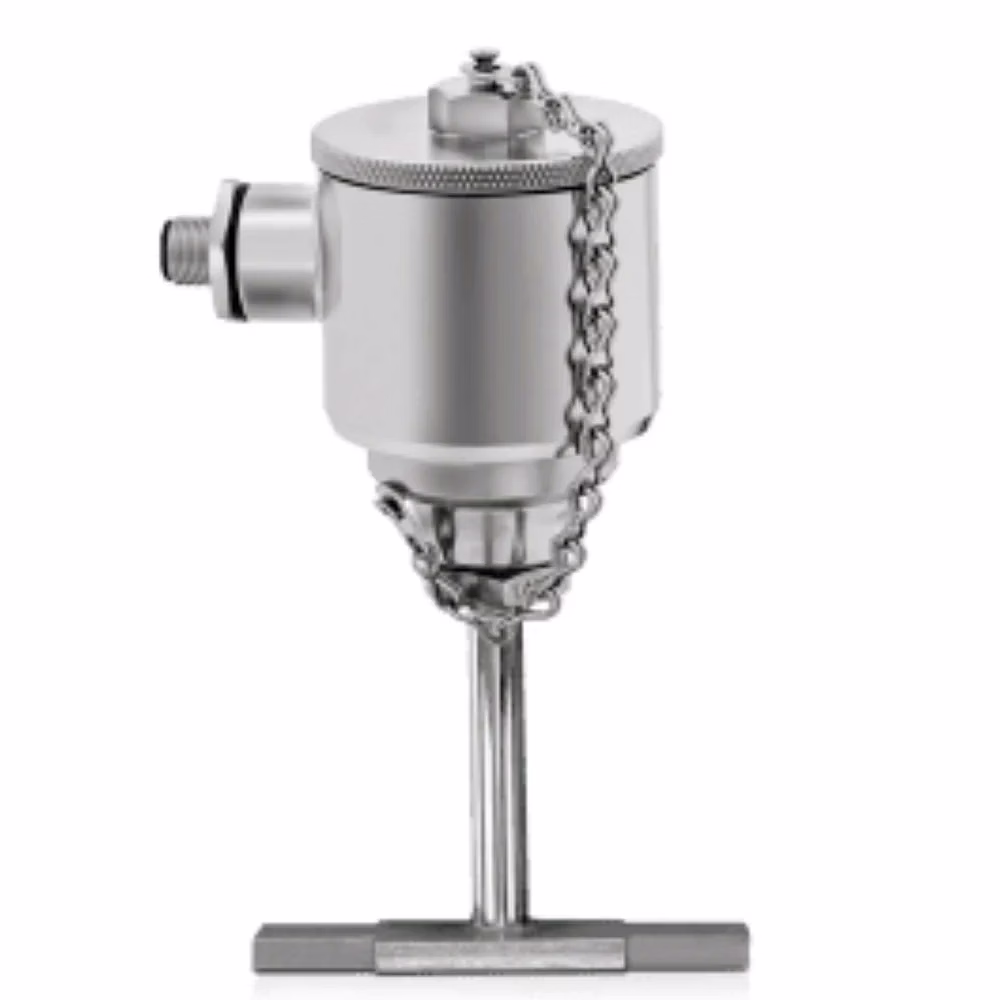

OPTITEMP TRA-G10 Resistance (RTD) temperature assembly for surface temperature measurement

OPTITEMP TRA-G10 is a compact surface temperature measurement assembly designed for equipment monitoring where space is a selection parameter. Utilizing a low-profile sensor head and a platinum Pt100 sensing element, the unit delivers consistent linear output for control systems and instrumentation panels. The architecture features an easy-install mounting kit to reduce installation variability and ensure predictable thermal feedback. Units are delivered with batch electrical verification and straightforward mounting instructions, addressing the requirements of medical device and control cabinet builders. Supply-readiness is managed through traceable test certificates and moisture-protected packaging. This component is essential for facilities requiring non-intrusive thermal checks for small enclosures and localized process nodes with documented accuracy for institutional asset management and energy accounting in global distribution channels.

Key Features

• Low-profile contact architecture → features a compact sensing head to fit confined spaces without obstructing adjacent mechanical components or wiring.
• Consistent Pt100 response → utilizes a high-purity platinum element to provide a stable, linear resistance-temperature correlation for precise monitoring.
• Standardized mounting kit → includes adhesive and clamp options to standardise thermal coupling and reduce site-to-site installation variance.

Technical Attributes

• Sensing Element: Pt100 RTD → selection parameter for stability and control accuracy at moderate temperatures.
• Mounting Options: Adhesive / Clamp → selection impacts the thermal conduction efficiency and response time.
• Traceability: Batch test certificates → provided per lot to support commissioning verification and site acceptance.
• Termination: Block or Cable → determines compatibility with specific device integration and field wiring needs.

Sensor Layout and Surface Contact Engineering Logic of the TRA-G10

The technical framework of the OPTITEMP TRA-G10 utilizes a compact sensing head with the Pt100 element positioned within millimeters of the contact face. The structural reasoning for this design is to minimize the "thermal lag" between the monitored equipment casing and the electrochemical reaction in the sensor. Measurement physics rely on the resistance change of the platinum wire; a failure in the internal bond—due to thermal expansion cycling—results in "signal drift," where the reported temperature lags the actual process temperature by several degrees. This failure mode results in inaccurate energy accounting and can decommission the predictive maintenance logic for sensitive electronics. The head geometry is engineered to achieve a high efficiency in heat transfer, ensuring that localized heat gain from the sensor's own lead wires does not influence the reading. Quality consistency is managed through serialized batch test reports documenting resistance values at reference temperatures. If the surface preparation is neglected during installation (e.g., presence of oil or scale), the thermal conduction path is compromised, manifesting as measurement jitter upon site commissioning.

Functional Performance and Operational Stability in Small Enclosures

Operational efficiency is achieved through the unit’s quick-install kits, which allow B2B facility managers to deploy thermal monitoring nodes without specialized tooling. Functional performance centers on the unit’s ability to provide predictable feedback for control loops in unconditioned technical closets. In a real operational scenario, a failure in the adhesive bond—due to high humidity or thermal aging—leads to "sensor lift," where the head loses contact with the surface. This failure mode decommissions the measurement loop and can trigger false low-temperature alarms. The TRA-G10 utilizes high-performance adhesives and mechanical clamps specifically chosen to maintain consistent thermal conductance without damaging equipment casings. If the sensor detects a high internal resistance through periodic monitoring, the serialized data allow for targeted replacement before a full-bank failure occurs. Thermal management of the lead-wires is facilitated by specialized insulation overwraps that prevent "heat siphoning" from the measurement head. By providing a clean and deterministic signal, the assembly improves the overall reliability of the instrumentation panel, ensuring that thermal thresholds are accurately tracked for institutional maintenance audits.

Institutional Deployment and Logistical Readiness for Distributed Rollouts

Designed for equipment monitoring, localized process nodes, and instrumentation panels, the TRA-G10 is configured for the logistical requirements of project-scale procurement. Units ship in foam-lined trays with separators to prevent scuffing of the sensing face during transit. Failure to implement finish-protected packaging results in Ra value degradation on the contact face, rendering the sensor uncalibrated for high-precision applications. For international procurement, supply-readiness is supported through lot-specific test certificates and material trace records (EN 10204). Export-ready documentation includes unit configuration snapshots and installation checklists provided with each shipment to facilitate institutional asset registration. Packaging utilizes moisture-barrier covers to prevent terminal oxidation during maritime freight. OEM private-label marking and custom labeling are available under contract, allowing system integrators to deliver branded suites with serialized records. This high-authority approach ensures procurement teams receive verified, site-ready hardware that meet the performance and safety requirements of global manufacturing and healthcare markets, providing the transparency required for large-scale energy infrastructure rollouts.
