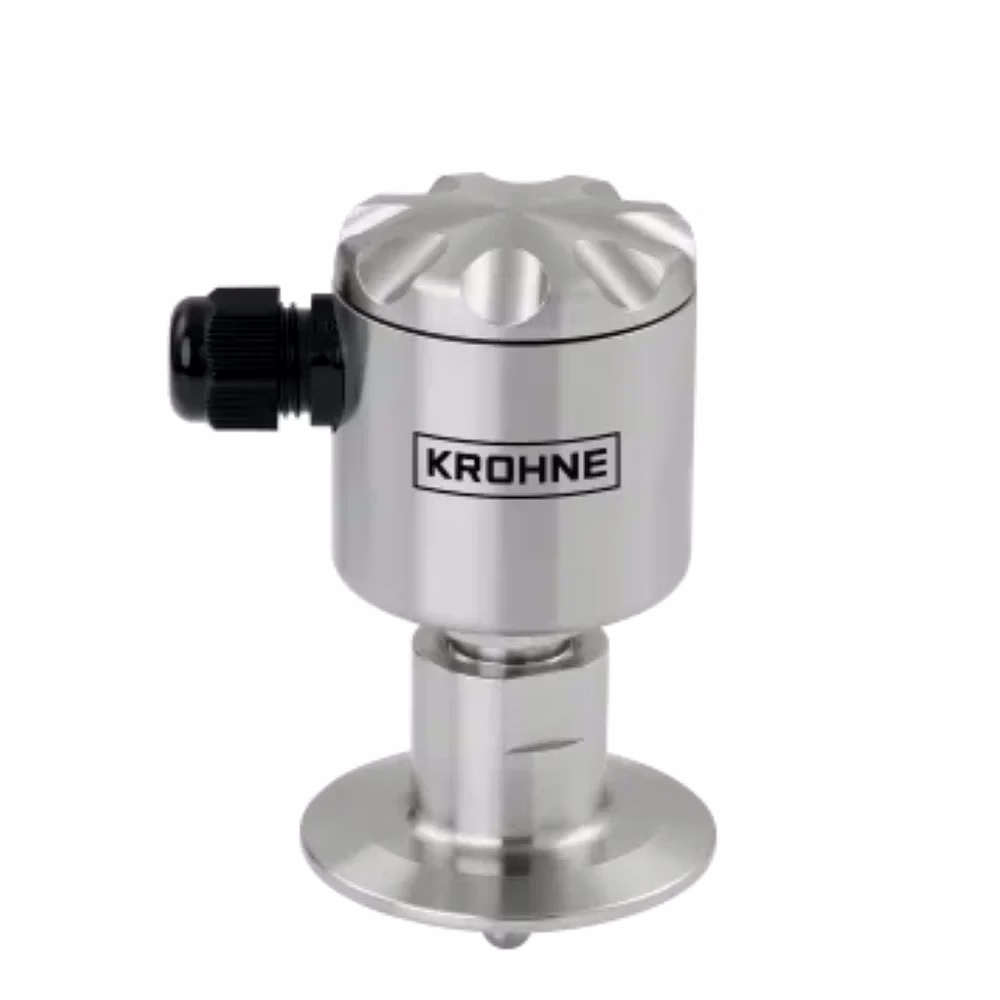

6500 Capacitance Level Switch – Hygienic Point-Level instrument

6500 Capacitance Level Switch is an advanced point-level sensor designed for hygienic detection of liquids and pastes in pharmaceutical, food, and biotech processing tanks. Utilizing polished wetted surfaces and a sealed sensor interface, the unit architecture minimizes residue retention to support rigorous cleaning-in-place (CIP) and sterilization-in-place (SIP) procedures. The sensing logic is based on media permittivity, featuring adjustable sensitivity to accommodate diverse dielectric constants. Units are supplied with traceable surface-finish reports and inspection logs, ensuring supply-readiness for bulk orders and OEM integration. Packaging utilizes sealed trays with protective caps to preserve sanitary integrity during transit. This metering component is essential for facilities requiring high-integrity overfill protection and batch control in washdown-capable environments with documented compliance for sanitary validation.

Key Features

• Sanitary contact surfaces → features electropolished or mechanically polished finishes to reduce microbial adhesion and facilitate cleaning.
• Sealed electronics architecture → prevents ingress from high-pressure washdown and aggressive cleaning agents to preserve sensor reliability.
• Adjustable dielectric sensitivity → enables precise tuning for varied process media to prevent false trips caused by foam or condensate buildup.

Technical Attributes

• Process Interface: Tri-clamp or Hygienic Flange → suitable for sanitary piping systems.
• Housing Rating: Washdown-capable → selection parameter for frequently sanitized production environments.
• Output Type: Relay or Solid-state → determines compatibility with control panel inputs and high-speed PLC loops.
• Sensing Mode: Capacitance point detection → selection based on the dielectric constant (permittivity) of the measured media.

Hygienic Construction and Sensing Logic of the 6500 Capacitance Switch

The technical framework of the 6500 Capacitance level switch utilizes a high-frequency oscillator that measures the change in electrical capacitance between the sensing electrode and the vessel wall. The structural reasoning for the polished wetted surfaces (typically Ra < 0.8 µm) is to eliminate microscopic crevices where bio-growth or product cross-contamination can occur—a failure mode that results in batch rejection and catastrophic financial loss in pharmaceutical lines. Measurement physics rely on the dielectric shift when process material covers the probe; a failure in the sensitivity tuning—due to drifting electronics—leads to "ghost triggers" from tank wall condensation or foam layers. This leads to erroneous batch completions and production downtime. The switch utilizes a "guard electrode" architecture that ignores buildup on the probe surface, ensuring that only a full immersion triggers an alarm. Quality consistency is managed through serialized surface-finish reports and functional verification logs, providing the documentation required for FDA or EMA compliance audits. If the gasket material is incorrectly selected for the CIP chemicals (e.g., using standard EPDM in a nitric acid wash), the seal will fail, allowing process fluid to enter the electronics housing and decommissioning the sensor.

Functional Performance and Operational Efficiency in Sanitary Tanks

Operational efficiency is achieved through the switch’s near-instantaneous response time, which is critical for high-speed filling and overfill protection loops. Functional performance centers on the unit’s ability to maintain its calibration during extreme thermal shocks typical of SIP cycles (up to 140°C). In a real operational scenario, a failure to manage thermal expansion results in "mechanical stress cracking" at the probe base, leading to localized leaks and microbial harborage. The 6500 utilizes high-performance PEEK or PTFE insulators that maintain their dielectric properties and mechanical seal at high temperatures. The sealed housing includes hydrophobic vents that prevent internal condensation—a failure mode that commonly destroys solid-state electronics in humid bottling halls. If the sensor detects a loss of signal or an internal logic fault, it can be configured to "fail-safe" to the alarm position, preventing unmonitored tank overflows. The adjustable sensitivity allows B2B facility managers to use the same sensor model for both high-permittivity aqueous liquids and low-permittivity oils, effectively reducing the facility's spares inventory and simplifying the technical specs for procurement teams.

Institutional Deployment and Logistical Readiness for Sanitary Units

Recommended for hygienic processing lines and pharmaceutical batch tanks, the 6500 Capacitance switch is configured for the logistical requirements of project-scale procurement. Units are packed in sealed trays with protective caps over the tri-clamp surfaces to prevent "scratching" or mechanical deformation of the sealing face during multimodal transit. Failure to use surface-protected packaging results in Ra value degradation, which can compromise the hygienic validation of the entire process vessel. For international procurement, supply-readiness is supported through traceable inspection reports and compliance declarations (FDA/3-A). Export-ready documentation includes unit-level surface-finish certificates and functional test logs provided with each shipment to facilitate regulatory review and institutional asset registration. Packaging utilizes corrosion-inhibiting liners to prevent atmospheric damage during sea freight. OEM integration options include custom labeling and pre-configured output settings for system builders delivering branded hygienic skids. This high-authority approach ensures the procurement team receives verified, deployment-ready hardware that meet the rigorous performance and safety standards of global food and pharmaceutical markets.
