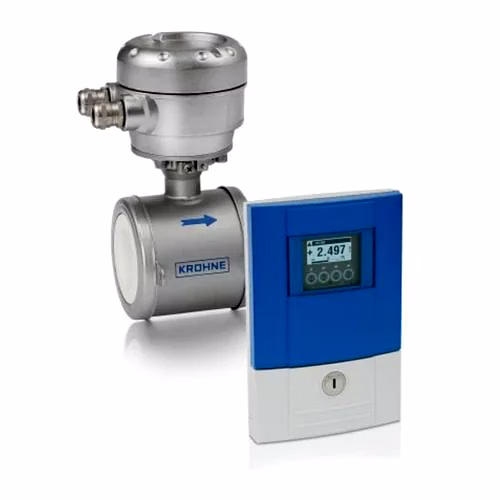

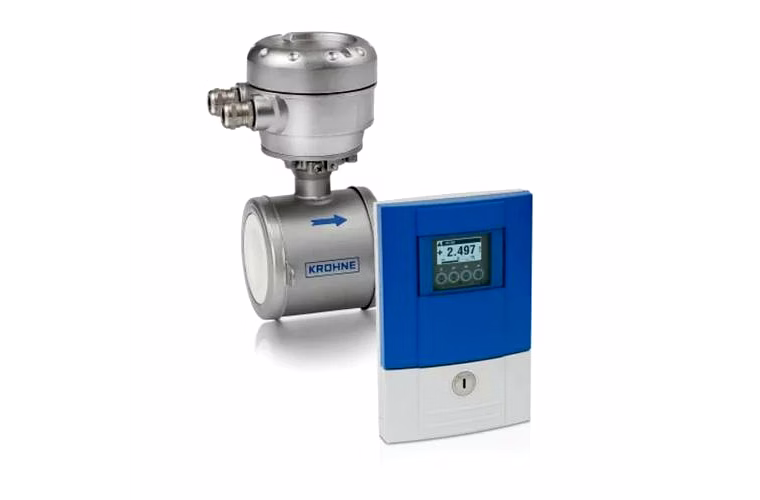

POWERFLUX 5030 - Electromagnetic flowmeter – In-line Water Meter

POWERFLUX 5030 is an industrial-grade in-line electromagnetic flowmeter engineered for the precise volumetric measurement of conductive water streams. Utilizing a precision-excited coil assembly and high-integrity liner materials, the meter delivers linear volumetric output compatible with industrial PLC and SCADA control loops. The unit architecture features a non-intrusive flow tube with no moving parts, significantly reducing mechanical wear and pressure drop in municipal and industrial water distribution systems. Units are shipped in padded crates with anti-corrosion liners and individual factory calibration certificates. Supply-readiness is managed through full lot traceability and documented factory verification, addressing the requirements of utility managers and OEM skid builders seeking durable, custody-transfer quality metering with documented accuracy class and environmental handling for international projects.

Key Features

• Non-intrusive measurement head → eliminates moving parts to minimize mechanical maintenance and prevent flow path obstructions for high-efficiency water delivery.
• Precision-excited coil architecture → generates a uniform magnetic field to ensure linear volumetric accuracy across a wide turndown ratio for both peak and low-flow regimes.
• Removable transmitter housing → allows for in-situ electronics servicing and firmware updates without removing the flow tube from the pressurized pipeline.

Technical Attributes

• Nominal Diameter: Multiple DN options → selection parameter for matching facility piping standards and optimizing flow velocity profiles.
• Accuracy Class: Industrial water standard → defines the measurement confidence and suitability for custody-transfer versus process control.
• Output Signal: 4–20 mA / Pulse / Modbus → selection parameter defining compatibility with existing facility telemetry and monitoring systems.
• Wetted Materials: Corrosion-resistant liners → selection impacts chemical compatibility with treated water and service life in aggressive effluents.

Measurement Architecture and Structural Composition of the POWERFLUX 5030

The technical framework of the POWERFLUX 5030 - Electromagnetic flowmeter utilize a precision-lined flow tube surrounded by a bipolar excitation coil system. The structural reasoning for the lined bore (typically Hard Rubber or Polyurethane) is to provide electrical isolation from the metallic body while maintaining a smooth, abrasion-resistant surface. measurement physics rely on Faraday’s Law; as conductive water passes through the magnetic field, a voltage proportional to the velocity is induced across the flush-mounted electrodes. A failure in the liner bonding—due to localized thermal shock or chemical attack—leads to "liner collapse" or "electrode bypass," manifesting as signal noise and a catastrophic loss of span accuracy. This failure mode decommissions the meter and can lead to unmonitored leak events in large facility headers. The coil geometry is specifically tuned to generate a uniform field across the measurement plane. Quality consistency is managed through serialized dimensional control of the bore concentricity and a multi-point wet calibration against reference standards. The mechanical layout features a separate electronics compartment to reduce thermal conduction from the process line to the delicate ADC components.

Functional Performance and Diagnostic Dynamics in Utility Metering

Operational efficiency is achieved through the meter’s high stability and near-zero pressure drop, which reduces the facility's pumping energy overhead. functional performance centers on the unit’s integrated diagnostics; the transmitter monitors electrode grounding and signal-to-noise ratios in real-time. In a real operational scenario, a failure to manage the "grounding integrity"—especially in plastic piping systems—leads to common-mode errors that result in inaccurate volume totals. The POWERFLUX 5030 utilizes high-speed digital signal processing to filter out electrical noise from nearby high-power pumps—a failure to suppress this noise results in "signal jitter," decommissioning the feedback control for chemical dosing pumps. The removable electronics housing allows technicians to swap modules in the field without breaching the process seal, effectively lowering the mean time to repair (MTTR). if the unit detects a coil fault or an empty pipe condition, it triggers a diagnostic alarm via its digital interface, providing B2B utility managers with event-driven maintenance data. By maintaining a verifiable accuracy class, the meter provides the transparency required for institutional energy accounting and cost-center allocation.

Institutional Deployment and Logistical Readiness for Large Distribution

Designed for industrial water distribution, process water metering, and OEM skid integration, the POWERFLUX 5030 is configured for the logistical requirements of multimodal procurement. Units ship in reinforced crates with internal bracing and shock indicators to protect the sensitive sensor alignment during multimodal transit. Failure to implement shock-mitigating packaging can lead to microscopic displacement of the electrode mounts, resulting in signal drift and the requirement for on-site recalibration. For international procurement, supply-readiness is supported by lot-specific calibration certificates and compliance declarations (CE/IEC). Export-ready documentation include unit configuration snapshots and certificates of origin provided with each consignment to facilitate customs review and institutional asset registration. Packaging utilize vapor-barrier liners and desiccant to prevent terminal oxidation during maritime transit. OEM production agreements are supported, allowing for custom flange patterns and branded enclosures. This high-authority approach ensure procurement teams receive verified, site-ready instruments that meet the safety and performance standards of global markets, providing the technical transparency required for large-scale infrastructure projects.
