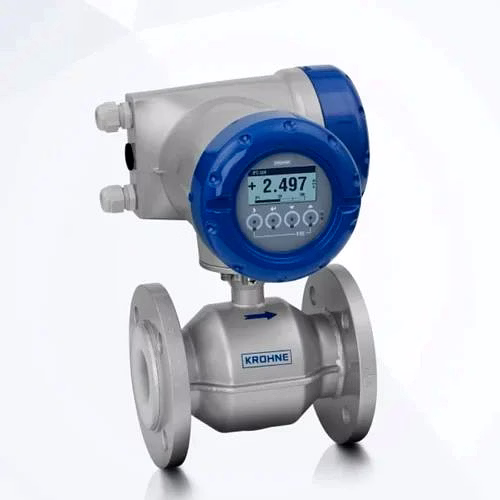

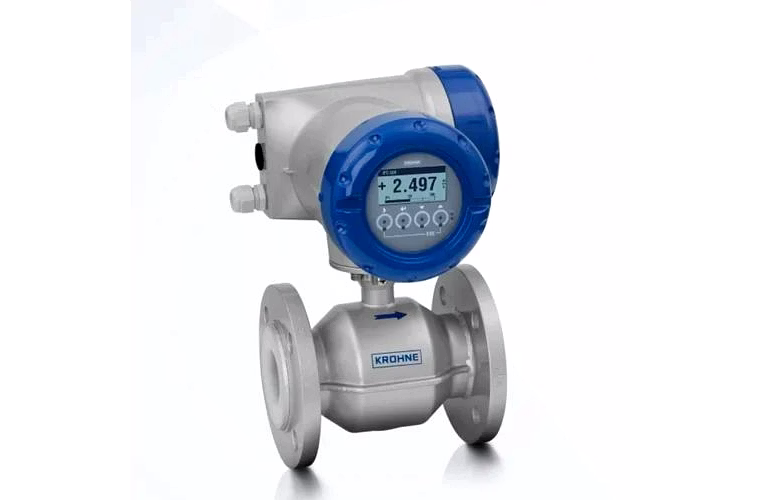

OPTIFLUX 4400 - Electromagnetic flowmeter – Industrial Utility Flowmeter

OPTIFLUX 4400 is a high-integrity electromagnetic flowmeter engineered for heavy-duty industrial and utility volumetric measurement. Utilizing a reinforced metallic body and a precision-engineered liner, the unit delivers stable measurement in high-pressure pipelines with minimal structural deformation. The architecture features an advanced electrode network and modular electronics to support SCADA integration and real-time process monitoring. Delivered with lot-specific calibration and factory inspection reports, the unit ensures supply-readiness for large-scale utility infrastructure. Packaging includes moisture-barrier liners and internal bracing for consolidated multimodal transport. This component is essential for facilities requiring non-intrusive, maintenance-free flow feedback with documented accuracy class for institutional energy accounting.

Key Features

• Heavy-duty body construction → engineered to withstand high mechanical stress and pressure surges in utility-scale pipelines without compromising bore geometry.
• Precision electrode network → utilizes specialized placement and metallurgy to ensure high-fidelity signal sampling across the entire flow cross-section.
• Modular electronics interface → features field-replaceable signal converters and configurable outputs (Analog/Digital) to simplify site commissioning and future upgrades.

Technical Attributes

• Measurement Principle: Faraday’s Induction → selection parameter defining suitability for all conductive liquids and effluents.
• Liner Materials: Application-specific → selection based on chemical aggressiveness, temperature, and abrasion resistance of the media.
• Turndown Ratio: High-linearity → ensures accurate measurement across wide fluctuations in volumetric flow rates common in municipal systems.
• Calibration: Serialized Unit Records → provided per serial number to support procurement quality checks and regulatory compliance.

Structural Composition and Electromagnetic Logic of the OPTIFLUX 4400

The technical framework of the OPTIFLUX 4400 utilizes a lined metallic flow tube surrounded by high-density excitation coils that generate a uniform magnetic field. The structural reasoning for the reinforced body is to maintain "bore stability" under the massive flange bolting forces and hydraulic pressures typical of utility mains. A failure in structural rigidity results in "bore ovalization," which manifests as localized stress on the dielectric liner and measurement bias—a failure mode that decommissions the accuracy of the entire billing or control node. measurement physics rely on the voltage induced across the electrodes as conductive liquid passes through the magnetic field. A failure in the coil potting—typically due to moisture ingress—leads to "excitation imbalance," resulting in signal noise and erratic volumetric reports. Quality consistency is managed through manufacturing controls that verify bore concentricity and 100% magnetic-field uniformity. The internal PCBA is protected by specialized shielding to minimize EMI coupling from nearby high-power pumps, ensuring a stable zero-point even in dense industrial environments.

Functional Performance and Operational Efficiency in Utility Networks

Operational efficiency is achieved through the meter’s non-intrusive design, which results in near-zero pressure loss, effectively reducing the facility’s pumping energy overhead. Functional performance centers on the unit’s integrated diagnostics; the transmitter monitors electrode impedance and signal quality in real-time. In a real operational scenario, a failure to manage "electrode fouling"—caused by scale or grease buildup—leads to signal attenuation and measurement drift. The 4400 utilize adaptive signal processing to identify these trends before they decommissioning the loop. If the electronics module detects an internal logic fault, the modular design allows for in-field hardware swaps without removing the flow tube from the pipeline, effectively lowering the mean time to repair (MTTR). By providing a stable and traceable signal, the meter improves the facility's situational awareness, reducing the need for manual site inspections and supporting automated energy accounting protocols required for institutional facility management.

Institutional Deployment and Logistical Readiness for Infrastructure

Designed for large industrial installations, municipal water networks, and OEM process skids, the OPTIFLUX 4400 is configured for the logistical requirements of project-scale procurement. Units ship in reinforced crates with internal rigid bracing and shock indicators to protect the sensitive sensor alignment during multimodal transit. Failure to implement shock-mitigating packaging can lead to microscopic fractures in the liner-to-flange interface, resulting in external leakage upon site commissioning. For international procurement, supply-readiness is supported through serialized calibration certificates and compliance declarations (ISO/CE). Export-ready documentation includes unit configuration snapshots and installation checklists provided with each shipment to facilitate institutional asset registration. Packaging utilize humidity-control liners and desiccant to prevent finish degradation and terminal oxidation during maritime freight. OEM branding and custom firmware options are available for system builders requiring branded instrumentation suites. This high-authority approach ensures procurement teams receive verified hardware that meet the performance and safety requirements of global manufacturing markets.
