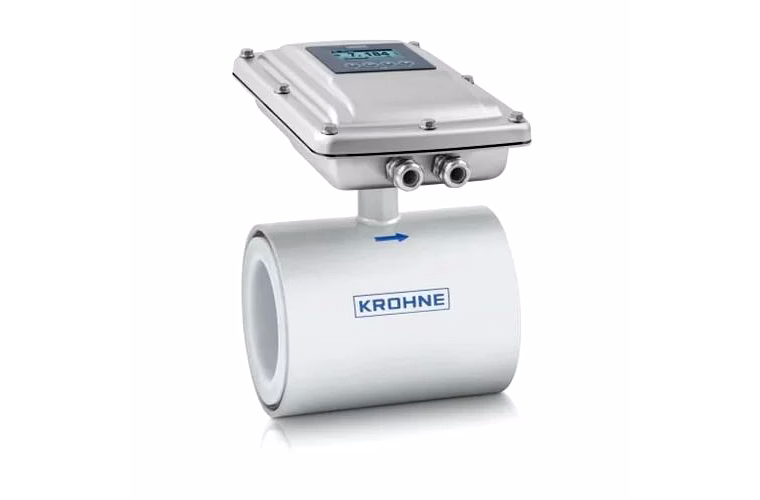

OPTIFLUX 1100 Stainless Steel – In-line Conductive Liquid Transmitter

Stainless Steel OPTIFLUX 1100 is an electromagnetic flowmeter engineered for reliable measurement of conductive liquids in industrial and sanitary applications where mechanical durability is a selection parameter. Utilizing a full stainless steel wetted body and precision-mounted electrodes, the meter provides stable volumetric measurement for higher-pressure systems and wash-down environments. The architecture features selectable liners and electrode sets to ensure tailored chemical compatibility with diverse process fluids. Units are configured for staged procurement, shipping on palletized frames with lot-specific test reports and calibration certificates. Supply-readiness is managed through factory-verified regulation and bore concentricity checks, addressing the requirements of facility engineers seeking robust metering with documented accuracy for institutional energy infrastructure and plant rollouts. Packaging includes corrosion-resistant wrapping and integral shock mounts for multimodal transport.

Key Features

• Full stainless steel flow body → provides enhanced mechanical strength for high-pressure industrial lines and simplifies cleaning regimes in sanitary environments.
• Replaceable liner and electrode sets → utilizes a modular internal design to enable tailored chemical compatibility and facilitate field serviceability to reduce total cost of ownership.
• Integral digital electronics → features high-fidelity signal conversion and multiple communication protocols (HART/Modbus) for seamless SCADA and plant-wide integration.

Technical Attributes

• Pressure Class: Configurable by Flange → selection parameter matched to the facility's specific operating pressure and piping standards.
• Accuracy Class: ±0.5% of reading → defines the measurement confidence levels for process control and billing-adjacent tasks.
• Wetted Materials: Stainless Body + PTFE/ETFE → selection parameter for ensuring compatibility with aggressive process chemistries and CIP agents.
• Logistics: Palletized Shock-mounts → ensure the structural and RF alignment of the sensor are preserved during international transit.

Material Build and Traceability Logic of the Stainless Steel OPTIFLUX 1100

The technical framework of the Stainless Steel OPTIFLUX 1100 utilizes a metallic flow body constructed from high-grade stainless steel, housing a dielectric liner and electrode sensors. The structural reasoning for the stainless body is to provide a "rigid containment" that resists external mechanical impact and internal pressure cycles that would decommission standard polymer meters. measurement physics rely on Faraday’s Law; as the liquid passes through the magnetic field, a voltage proportional to velocity is sampled. A failure in the liner-to-electrode seal—due to incorrect gasket torque or chemical swelling—leads to "process ingress," manifesting as signal attenuation and internal corrosion of the coil compartment. This failure mode decommissions the meter and can trigger hazardous external leaks. Quality consistency is managed through serialized dimensional inspections that verify bore concentricity and electrode alignment. Each assembly is identified with a unique serial number linked to a lot-specific calibration report, enabling full institutional traceability across bulk deliveries and multi-site rollouts.

Functional Performance and Operational Efficiency in Harsh Environments

Operational efficiency is achieved through the unit’s support for high-pressure applications and its ability to withstand external wash-down procedures without compromising the internal electronics. Functional performance centers on the unit’s stable measurement logic; a failure in the coil excitation—due to internal moisture condensation—leads to "signal drift" and erratic readings. The 1100 utilized gasketed enclosures and membrane vents to mitigate this risk. In a real operational scenario, a failure to manage "fluid conductivity thresholds" results in the transmitter reporting a permanent zero-flow state. The integrated diagnostics report coil continuity and signal integrity, allowing B2B facility managers to implement condition-based maintenance. if the unit is used in a sanitary line, the selection of electropolished electrodes is vital; failure to choose the correct finish results in "microbial harborage," effectively decommissioning the hygienic validation of the line. By providing a stable and maintenance-free signal, the meter improves the overall reliability of localized water management and chemical dosing systems.

Institutional Deployment and Logistical Readiness for Global Projects

Designed for industrial process water systems, chemical dosing lines, and packaged OEM skids, the OPTIFLUX 1100 is configured for the logistical requirements of project-scale procurement. Units ship on palletized frames with internal bracing and moisture-barrier covers to protect the delicate PCBA and gold-plated terminals during maritime freight. Failure to implement finish-protected packaging results in "terminal pitting," manifesting as intermittent power or data loss upon site commissioning. For international procurement, supply-readiness is supported through lot-level electrical test certificates and dimensional inspection reports (ISO/CE). Export-ready documentation include material trace records (MTR) and certificates of origin to facilitate institutional asset registration and customs review. OEM branding and custom firmware configurations are available, allowing system integrators to deliver branded suites with serialized records. This high-authority approach ensures procurement teams receive verified hardware that meet the performance and safety requirements of global manufacturing markets, providing the technical transparency required for large-scale energy infrastructure rollouts.
