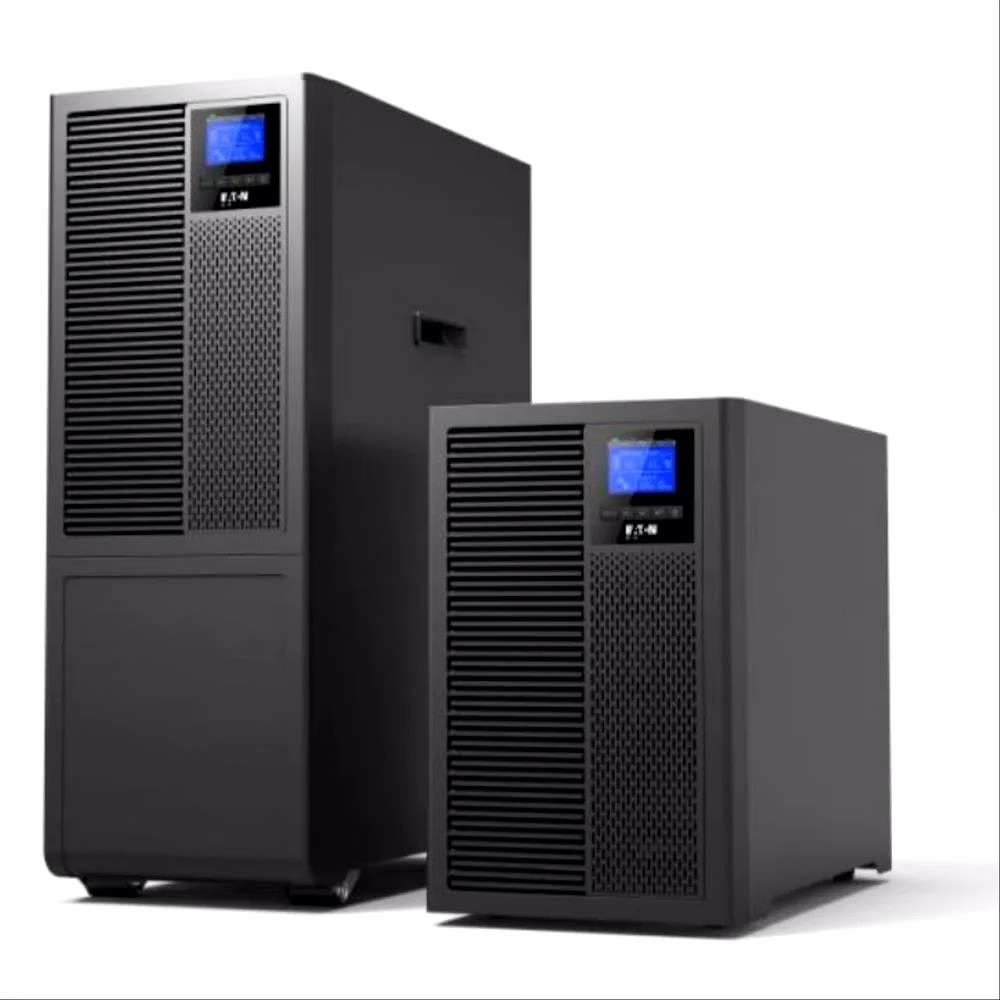

Eaton 6 kVA 9E Model without Battery – Modular UPS Component

Eaton 6 kVA 9E Model without Battery is a modular power conversion frame utilizing online double-conversion topology to deliver conditioned AC power to critical infrastructure. The architecture is engineered to accept external battery packs, allowing for scalable autonomy configurations in data centers and telecom hubs. By isolating the energy storage, the unit provides clean, zero-break transfer during supply interruptions, protecting sensitive servers and network devices from voltage anomalies. Units ship on palletized skids with factory test logs and serialized configuration records. Supply readiness includes corrosion-resistant wraps and support for OEM panel labeling, addressing the procurement requirements of institutional buyers requiring high-density power protection without integrated battery constraints.

Key Features

• Online double-conversion topology → isolates loads from mains disturbances for continuous, regulated power delivery.
• Modular battery interface → enables customizable autonomy through connection to external battery racks or cabinets.
• Factory acceptance testing → provides unit-level verification of inverter stability and transfer thresholds prior to site deployment.

Technical Attributes

• Continuous Rating: 6 kVA (6000 VA) → selection parameter for critical load capacity management.
• System Topology: Double-conversion → ensures zero-break transfer and high-frequency regulation.
• Interface: External battery connector → defines compatibility with site-specific battery chemistry.
• Communications: SNMP/Relay ports → selection parameter for integration with facility monitoring.

Power Conversion Architecture and Redundancy Logic of the Eaton 9E 6 kVA

The technical framework of the Eaton 6 kVA 9E Model without Battery utilizes a high-frequency switching architecture consisting of an AC-to-DC rectifier and a DC-to-AC inverter stage. This double-conversion process ensures that the output waveform is completely independent of the input mains, providing a true sinewave with less than 3% Total Harmonic Distortion (THD). Without this specific structural reasoning, critical server loads would be exposed to "frequency drift" and common-mode noise, which often lead to data corruption or hardware-level logic errors in high-density network switches. The frame is designed with a high-speed static bypass as a primary fail-safe; if the internal inverter encounters a component failure or thermal overload, the system transitions to the mains in less than 4 milliseconds. Quality consistency is managed through serialized factory acceptance logs that record the inverter's performance under linear and non-linear load step changes. A failure to calibrate the transfer thresholds correctly results in "nuisance transfers," where the UPS cycles to battery unnecessarily, leading to premature aging of the external energy storage assets.

Functional Performance and External Energy Management in Modular Systems

Operational efficiency is enhanced through the system’s ability to manage diverse external battery strings via a dedicated DC bus connector. This modular interface allows B2B facility managers to right-size their energy autonomy—from 10 minutes to several hours—without modifying the core power conversion electronics. Thermal management employs a directed forced-air cooling system with intake filters and speed-controlled fans. If the fans fail or filters become clogged with airborne particulates, the internal ambient sensors trigger a thermal derating sequence to prevent the DC-link capacitors from reaching their failure point—a critical standard in unconditioned equipment rooms. The integrated charger module is field-configurable for different float voltages, allowing compatibility with both standard VRLA and advanced Lithium-Ion cabinets. A failure to match the charger profile to the battery chemistry can result in "thermal runaway" or chronic undercharging, effectively reducing the system’s backup capacity by 40% over a 12-month period. Telemetry data, including load percentages and input quality, is exported via SNMP, enabling centralized oversight for multi-site enterprise deployments.

Institutional Deployment Readiness and Export Logistics for 6 kVA Power Modules

Designed for integration into IT racks, telecom shelters, and industrial control hubs, the Eaton 9E frame is configured for the logistical requirements of project-scale procurement. Units are shipped on palletized skids with corner bracing to protect the internal busbar alignment and transformer mounts from the mechanical shocks of multimodal transit. Failure to implement shock-mitigating packaging can lead to high-impedance electrical joints, which manifest as localized hotspots and potential arc-flash hazards upon site commissioning. For international projects, supply-readiness is supported through lot-specific functional test reports and compliance declarations (IEC 62040). Export-ready documentation include configuration cards and environment manifests to facilitate regulatory review and institutional asset registration. Packaging utilize vapor-barrier liners and desiccant to prevent moisture-induced oxidation on the electrical terminals during long-distance maritime freight. OEM panel branding and custom configuration services are available for system integrators delivering branded power protective suites. This high-authority documentation ensures that the Eaton 9E meets the technical performance and safety requirements of global commercial and industrial markets, providing a traceable and durable solution for critical power pathways.
