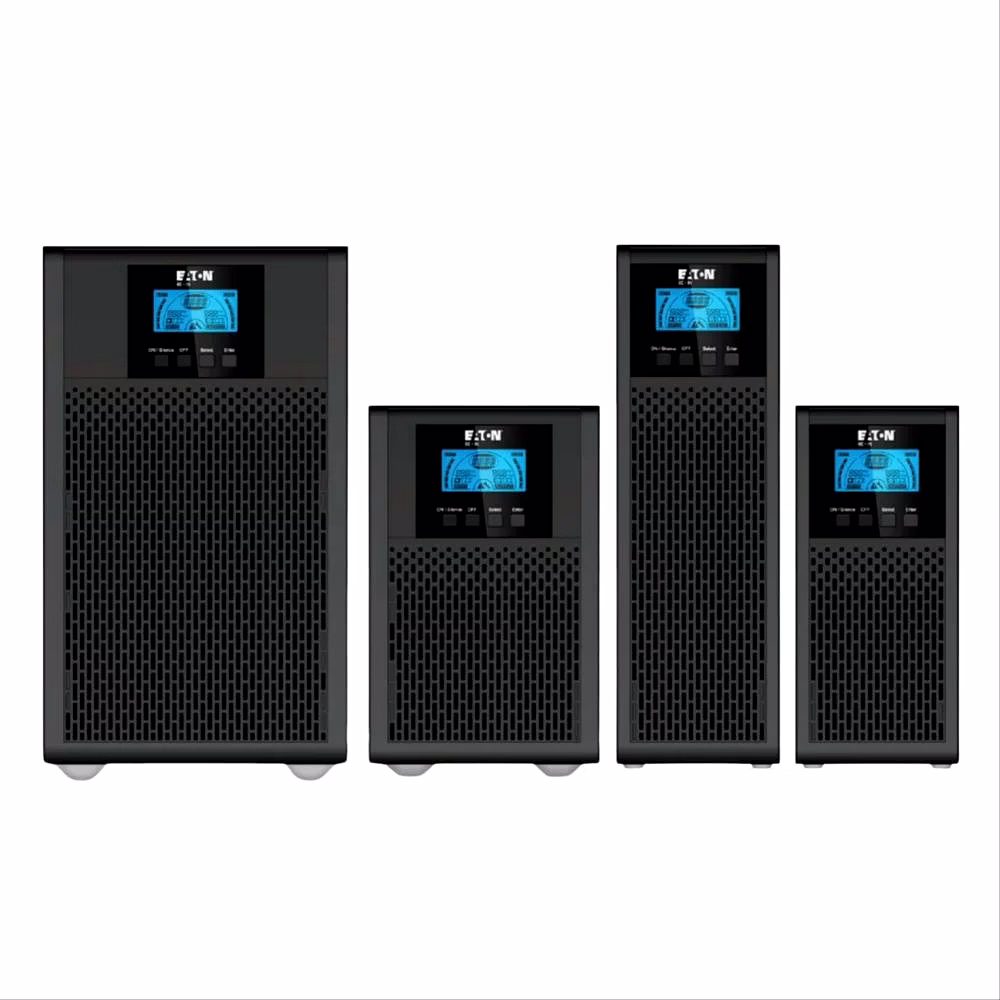

Single Eaton 9E-IN 1 kVA – Internal Battery Online UPS

Single Eaton 9E-IN 1 kVA is a robust, single-phase online double-conversion UPS engineered for industrial environments with extreme grid instability. Utilizing an IGBT-based rectifier and an internal battery configuration, the unit architecture delivers continuous 1 kVA power with an ultra-wide input window of 100VAC to 300VAC. The design features fully conformally coated PCBAs to ensure high reliability in harsh, humid, or dusty conditions. Shipped in reinforced cartons with serialized test reports, units are prepared for large-volume industrial procurement. Supply-readiness is managed through factory-verified 0.99 power factor correction and 100% load testing at peak operating temperatures, addressing the requirements of facility managers seeking documented durability for critical sensors and small automation nodes.

Key Features

• True Online Double Conversion → utilizes an IGBT-based rectifier to isolate the load completely from mains disturbances, providing a pure sine-wave output with zero transfer time.
• Ultra-Wide Input window (100V–300V) → ensures the UPS operates on mains power during severe fluctuations, effectively preserving battery life and identifying the unit's suitability for generator sources.
• Harsh Environment Resilience → features fully conformally coated PCBAs and a built-in Over Voltage Cut-off Device (OVCD) to protect internal logic from atmospheric contaminants and high-voltage spikes.

Technical Attributes

• Rated Power: 1 kVA / 1000 VA → primary selection parameter for protecting individual server nodes, medical devices, or industrial PLC sets.
• Power Factor: 0.99 Active PFC → ensures maximum utilization of the facility's electrical infrastructure while minimizing harmonic feedback into the grid.
• Operating Temp: 100% Load @ 0~40°C → determines the unit’s thermal robustness in unconditioned technical closets.
• Configuration: 1 Phase IN / 1 Phase OUT → selection parameter for standard single-phase facility branch circuits.

Internal Architecture and Harsh Environment Protection Logic of the 9E-IN

The technical framework of the Single Eaton 9E-IN 1 kVA utilizes a high-frequency PWM (Pulse Width Modulation) inverter and an IGBT-based rectifier designed for high-fidelity AC synthesis. The structural reasoning for the internal battery configuration is to provide a "compact energy footprint," maximizing rack space in constrained industrial cabinets. Measurement physics rely on high-speed DSP feedback loops that modulate the output frequency and voltage to within ±1% accuracy. A failure in the conformal coating—due to improper manufacturing application—leads to "dendritic growth" on the PCBA traces in humid environments. This failure mode results in unpredictable logic resets and potential localized arcing, effectively decommissioning the UPS protection node. quality consistency is managed through serialized FAT (Factory Acceptance Test) dossiers documenting waveform purity under full-load steps. The unit utilizes an integrated OVCD (Over Voltage Cut-off Device); a failure in this protective logic—due to a direct high-energy surge—results in component rupture. manufacturing logic employs redundant heatsinks to maintain thermal limits during 100% load operation at 40°C.

Functional Performance and Operational Efficiency in Industrial Sites

Operational efficiency is achieved through the system’s high input power factor (0.99), which reduces the reactive power demand on the facility’s distribution network, an essential operational standard for industrial sites with strict energy accounting. functional performance centers on the unit’s support for continuous operation; if the unit detects a mains sag down to 100V through its monitoring interface, it triggers its boost-mode rectification rather than discharging the battery. In a real operational scenario, a failure in the charging circuit leads to "battery starvation," decommissioning the backup window during a total grid failure. The 9E-IN series utilize temperature-compensated charging to mitigate this risk. if the unit detects a loss of signal gain in the current-sensing loop, it triggers an early-warning diagnostic alarm. By providing a clean and deterministic signal for power status, the enclosure improves the situational awareness of the facility management team, ensuring that thermal and electrical thresholds are accurately tracked for institutional maintenance audits.

Institutional Deployment and Logistical Readiness for Export Processes

Designed for industrial automation, small IT closets, and medical workstations, the 1 kVA 9E-IN is configured for the logistical requirements of multimodal procurement. Units ship in reinforced cartons with anti-static foam inserts and moisture-barrier liners to protect the coated electronics during maritime transit. Failure to implement shock-mitigating packaging can result in "joint stress," leading to micro-cracks in the board solder and intermittent faults upon site commissioning. For international procurement, supply-readiness is supported through serialized performance verify logs and compliance declarations (ISO/CE). Export-ready documentation include unit configuration snapshots and certificates of analysis provided with each lot to facilitate institutional asset registration. Packaging utilize humidity-control liners to prevent terminal oxidation during maritime freight. OEM branding and custom faceplate options are available for system builders requiring branded power protection. This high-authority approach ensures procurement teams receive verified hardware that meet the performance and safety requirements of global manufacturing markets.
