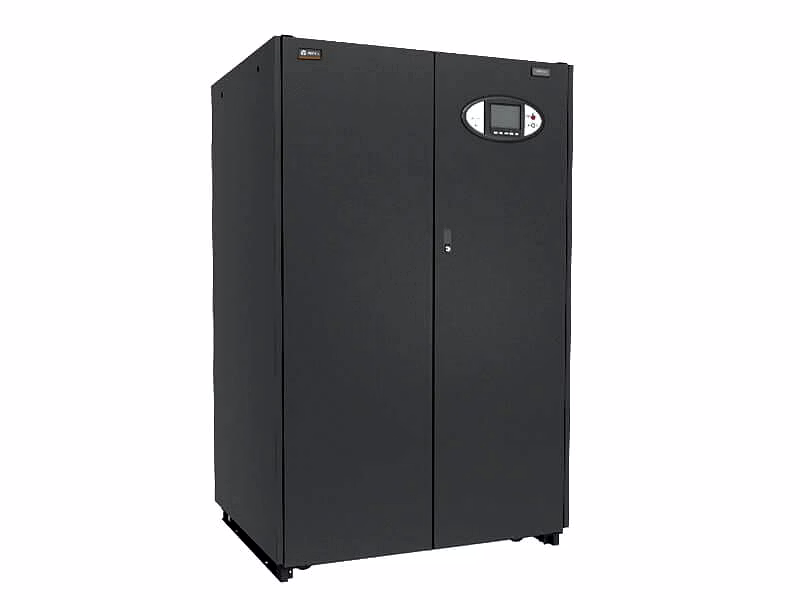

Liebert Precision Power Center 50 - 200 KW – Three-Phase Power Distribution

Liebert Precision Power Center 50 - 200 KW is a hard-mounted distribution unit sized for medium to large electrical loads in manufacturing and critical infrastructure environments. The assembly supports continuous three-phase operation at 415 V with coordinated protective devices and integrated thermal management. The architecture features heavy-gauge busbars and compartmentalized breaker bays to isolate fault currents and ensure selective clearing. Units ship in reinforced crates with tested busbar assemblies and serialized commissioning data. Supply is available in large-volume formats with documented factory acceptance tests (FAT) and OEM panel branding options. This power distribution component is essential for facilities requiring high-capacity, monitored supply with documented baselines for site acceptance testing.

Key Features

• Rated 415 V three-phase design → matches industrial mains and reduces transformation requirements for localized loads.
• Scalable 50–200 kW configurations → provides selection flexibility to align with evolving site load profiles and redundancy needs.
• Factory-recorded commissioning data → simplifies site acceptance testing (SAT) and provides documented performance baselines.

Technical Attributes

• Power Rating: 50–200 kW → primary selection parameter for facility load coverage and derating.
• Voltage Specification: 415 V → determines panel and transformer compatibility for industrial grids.
• Breaker Coordination: Selectivity curves → necessary for protective device coordination and fault clearing.
• Thermal Management: Forced ventilation → impacts ambient room conditions and allowable load thresholds.
• Telemetry: Digital control outputs → integrates with plant energy management and monitoring systems.

Mechanical and Electrical Construction of 415 V Precision Power Centers

The structural framework of the Three Phase 415 V Liebert Precision Power Center 50 - 200 KW utilize folded steel enclosures and heavy-gauge copper or aluminum busbars rated for continuous high-current operation. Each breaker bay is physically compartmentalized to prevent the propagation of ionized gases during a fault event—a critical structural reasoning for facility safety. Conductors are sized to maintain temperature rise within IEC/NEMA limits even at 100% rated capacity. Protective device coordination is verified during factory testing to ensure that downstream breakers trip selectively, preventing a localized branch fault from taking down the entire 200 kW distribution system. Access panels provide segregated cable entry points for controlled routing and ease of site installation. Quality consistency is managed through serialized factory acceptance tests that include continuity, hi-pot insulation resistance, and functional trip testing of each installed breaker. Without this mechanical rigidity and electrical compartmentalization, the unit would be susceptible to thermal deformation and catastrophic arc-flash propagation under fault conditions.

Functional Performance and Operational Efficiency in Industrial Distribution

Designed for continuous heavy-duty operation, the system maintains its rated 50–200 kW output with predictable thermal headroom in conditioned plant environments. Integrated monitoring reports per-phase current, voltage levels, and harmonic content, which are primary factors in load balancing and predictive maintenance scheduling. If the unit detects a current imbalance exceeding set thresholds, it triggers local alarms to alert operators to potential neutral conductor overloads. This event-driven diagnostics approach reduces the risk of unscheduled downtime in critical process lines. Scalable configurations permit staged capacity increases—for example, adding distribution modules as the facility grows—without full-system replacement. Operational efficiency is further enhanced by the use of low-loss busbar connections and high-efficiency transformers (where integrated), reducing the localized heat load on the facility’s HVAC system. Swappable monitoring modules and front-accessible components reduce mean time to repair (MTTR), ensuring that the power center remains an effective infrastructure component throughout its multi-decade service life.

Application, Industry Deployment, and Cross-Border Logistics for 200 kW PPCs

Typical use include manufacturing facilities, critical infrastructure nodes, and commercial power distribution hubs where 415 V three-phase supply is standard. Procurement is supported by serialized factory acceptance tests (FAT) and pack-out methods tailored for international containerized shipping. Packaging utilize reinforced wooden crates with internal bracing to protect busbar alignment and breaker assemblies against the mechanical shocks of multimodal transit. Failure to implement shock-mitigating packaging can lead to micro-cracking in insulators and loose electrical terminations, resulting in high-impedance faults during commissioning. Each shipment includes a comprehensive technical dossier with coordination curves, commissioning data, and a compliance declaration (CE/UL) indicating electrical test outcomes. Export readiness is managed through vapor-barrier wrapping and desiccant liners to prevent corrosion in humid transit environments. This high-authority approach ensures that the Liebert Precision Power Center 50 - 200 KW meets the rigorous technical specifications of global institutional buyers, providing a durable and traceable solution for high-capacity industrial power distribution.
