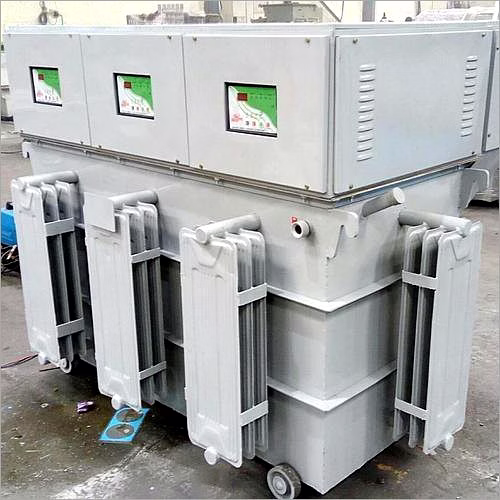

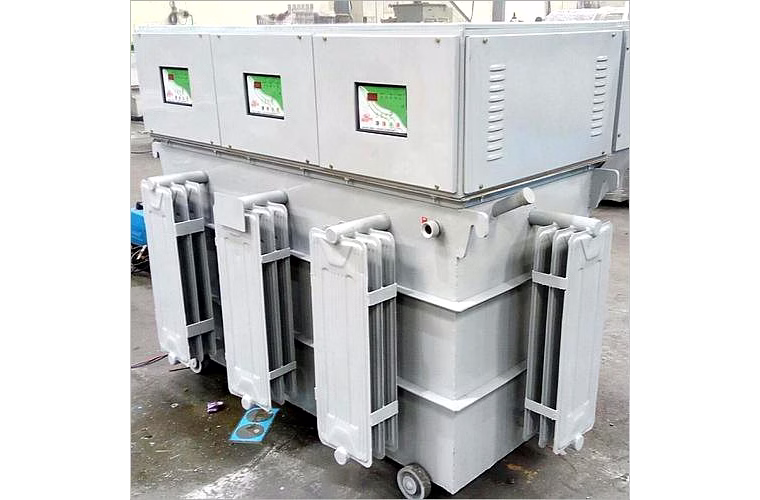

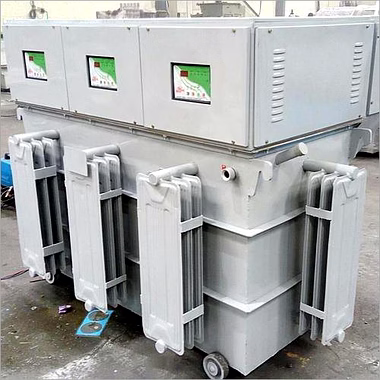

Automatic Servo Controlled Oil Cooled Voltage Stabilizer – Oil-Immersed Regulator

Automatic Servo Controlled Oil Cooled Voltage Stabilizer is an oil-immersed voltage regulation unit designed to provide stable output to heavy-duty electrical loads under variable input conditions. Utilizing an oil-filled transformer tank for uniform heat dissipation, the unit employs a servo-motor tap changer to maintain precise output regulation regardless of grid fluctuations. The oil medium protects the servo mechanism and windings from thermal stress and environmental contaminants, ensuring consistent regulation accuracy for high-cycle industrial machinery. Units are prepared for large-scale supply with crate-mounted skids and immobilization to protect moving components during transit. Documentation includes lot-specific functional test certificates and inspection reports, addressing the technical and logistical requirements of equipment suppliers and facility managers in power-intensive manufacturing and process plants.

Key Features

• Oil-immersed cooling medium → ensures uniform thermal conduction and prevents localized hotspots in windings during continuous full-load operation.
• Automatic servo tap-changing → provides real-time correctional response to incoming voltage variations to maintain a stable downstream operating envelope.
• Crate-mounted transit configuration → utilizes immobilization blocks and shock indicators to prevent mechanical misalignment of the servo assembly during shipping.

Technical Attributes

• Cooling Method: Oil-immersed regulator → selection for heavy-duty, continuous-load industrial applications.
• Control Accuracy: Configurable regulation band → influences compatibility with voltage-sensitive electronic controls.
• Protection: Overcurrent and Thermal cutouts → preserves unit integrity and prevents equipment damage during fault conditions.
• Enclosure: IP-rated steel tank → determines suitability for outdoor or harsh indoor plant environments.

Electromechanical Architecture and Thermal Management of Oil-Cooled Stabilizers

The internal framework of the Automatic Servo Controlled Oil Cooled Voltage Stabilizer utilize a high-capacity autotransformer and a buck-boost transformer fully immersed in a tank of mineral or specified dielectric oil. This oil serves a dual purpose: providing high dielectric insulation and facilitating rapid heat transfer from the transformer windings and the moving carbon brush assembly. The structural reasoning for oil immersion is to prevent localized "hotspots" that accelerate insulation aging in high-density windings. Without this specific thermal management, the unit would suffer from thermal expansion drift—a failure mode where the carbon brushes lose contact pressure, leading to localized arcing and carbonization of the oil. This leads to internal short-circuits and catastrophic tank failure. The servo motor is coupled to the tap changer via a vibration-damped mechanical linkage, ensuring smooth correctional movements. Quality consistency is managed through serialized electrical verification, where the unit's regulation latency and output THD (Total Harmonic Distortion) are recorded under 0% to 100% load variations, ensuring a stable voltage baseline for critical industrial equipment.

Functional Performance and Protection Dynamics in Industrial Power Systems

Operational efficiency is enhanced through the stabilizer’s ability to maintain a tight output regulation (typically ±1%) even when the input supply deviates by up to 40%. The automatic control logic utilizes high-sampling-rate sensing transformers that detect voltage sags and surges at sub-cycle intervals. If the stabilizer detects an "out of range" supply that exceeds its correction capability, it triggers a high/low voltage cutoff to protect the downstream loads. A failure in the oil seal or a drop in dielectric strength leads to internal tracking—this is mitigated by the integrated oil temperature and pressure-relief sensors that trigger an emergency shutdown before a tank breach occurs. Functional stability is critical for CNC machinery and motor drives; a fluctuating supply can cause "motor hunting" and increased harmonic heating, which reduces motor lifespan by 20-30%. The oil cooling medium also dampens the mechanical noise of the tap changer, making it suitable for installations near occupied control rooms. By maintaining a constant liquid level of cooling oil, the unit ensures consistent head pressure for the thermal conduction process, effectively improving the overall reliability of the facility’s power distribution network.

Logistical Readiness and Technical Compliance for Global Supply

Intended for heavy electrical equipment and large process plants, these stabilizers are configured for the logistical requirements of global procurement. Units are shipped on crate-mounted skids with immobilization blocks that secure the servo assembly and transformer against the mechanical shocks of multimodal transport. Failure to implement shock-mitigating packaging can result in the displacement of internal busbars, leading to high-impedance electrical joints upon commissioning. For international projects, supply-readiness is documented through serialized factory test reports and compliance declarations (IEC/ANSI). Export-ready documentation include unit-specific regulation curves, wiring diagrams, and material test reports (MTR) for the transformer copper and tank steel. Packaging utilizes corrosion-barrier film to prevent oxidation of the electrical terminals during maritime freight. OEM and private-label finishing options are available for system builders requiring branded enclosures with specific I/O mappings. This systematic approach ensures that procurement teams receive verified, installation-ready hardware that meets the rigorous safety and performance standards of the heavy industrial sector, providing the technical transparency required for large-scale asset management.
