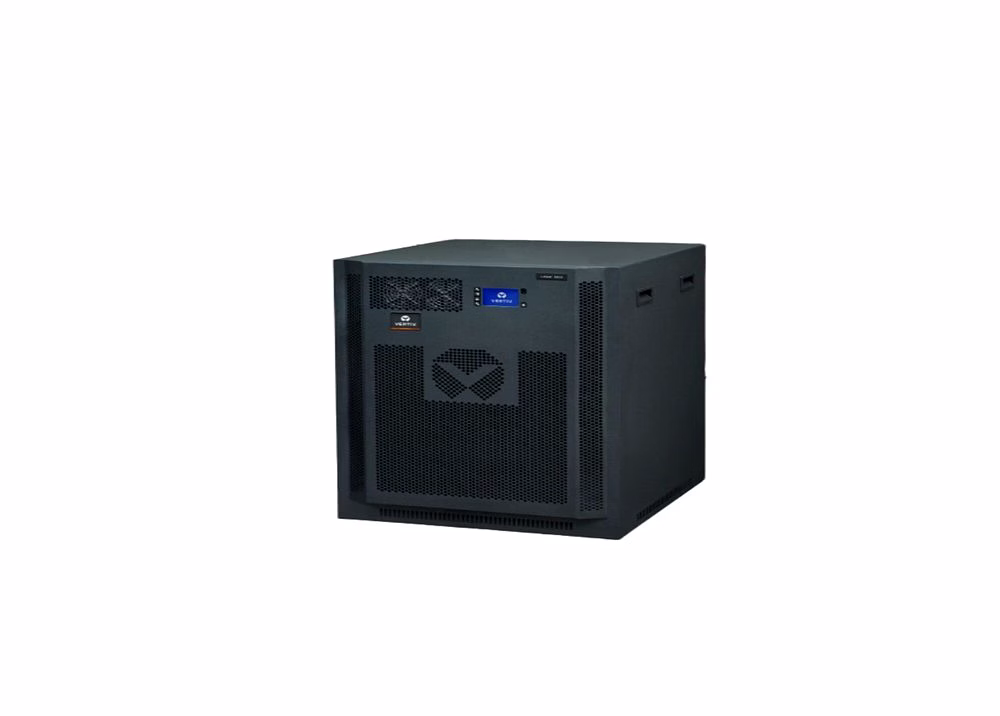

S600 10kVA UPS System – Rack-mount Online UPS

S600 10kVA UPS System is a three-phase input, single-phase output online uninterruptible power supply engineered for industrial and critical-infrastructure applications. Utilizing double-conversion topology and active power factor correction (PFC), the unit delivers regulated sine-wave output even under significant input voltage variation. The rack-mount form factor maximizes data-center density while simplifying module-level service. Units are shipped with lot-based serial traceability and event-log export functionality, ensuring supply-readiness for large-volume distribution. Packaging utilize palletized crates with anti-vibration inserts and humidity-control liners. Deliverables include factory test certificates and compliance declarations, addressing the technical and logistical requirements of facility managers requiring high-fidelity power for sensitive servers and network aggregation points.

Key Features

• Double-conversion online topology → provides continuous regulated output and frequency isolation to protect sensitive IT equipment from all mains disturbances.
• Rack-mount form factor → ensures high vertical density in standard 19-inch cabinets and facilitates chassis-level service accessibility.
• Integrated battery management → execute temperature-compensated charge control to prolong the service life of VRLA or Lithium-ion battery modules.

Technical Attributes

• Rated Capacity: 10 kVA / 9 kW → selection parameter for matching active server loads with N+1 scaling capability.
• Input Range: Wide voltage acceptance → reduces battery transfer events during facility grid instability.
• Output Waveform: Sine wave <1.5% THD → critical parameter for compatibility with sensitive high-efficiency power supplies.
• Communications: SNMP and Dry-contact I/O → selection for integration with building management and remote monitoring systems.

Modular Architecture and Power Conversion Logic of the S600 10kVA UPS

The technical framework of the S600 10kVA UPS System utilize a modular power stage and centralized control board designed for high-density critical power pathways. The conversion logic relies on an IGBT-based rectifier and inverter that synthesize the output sine wave. This architecture ensures that the load is completely isolated from mains transients—a failure to maintain this isolation results in "common-mode noise," which commonly causes erratic resets in industrial control processors and data corruption in high-speed network switches. The assembly separates the rectifier, inverter, and battery-charge circuits into discrete zones to reduce cross-interference and simplify thermal management. Structural reasoning for this partitioning is to facilitate hot-swap module replacement; technicians can isolate and replace a faulty power module without powering down the entire equipment rack. Quality consistency is managed through serialized test reports that record the unit's voltage regulation within ±1% and its harmonic rejection profile under 100% non-linear load conditions. Every unit undergoes a 24-hour full-load burn-in at 40°C to identify "infant mortality" defects in the power semiconductors before they reach the site.

Functional Performance and Battery Lifecycle Dynamics in Infrastructure UPS

Operational efficiency is enhanced through the system’s ability to sustain continuous output at its 10 kVA rating with high conversion efficiency, reducing the facility's localized heat load and energy overhead. The integrated battery management system (BMS) executes multi-stage charging with temperature compensation. Failure to monitor battery internal temperature leads to "thermal runaway," a catastrophic failure mode where the battery pack swells and vents gas, potentially causing site fires and decommissioning the UPS bank. The S600 supports both external VRLA and Lithium-ion configurations, with selectable charge profiles provided in the firmware configuration snapshots. Parallel-capable controls allow for up to N+X configurations, enabling facility managers to increase throughput or implement redundant maintenance paths without full system replacement. If the system detects a DC bus over-voltage—often caused by feedback from inductive loads—the control logic executes an automatic transfer to static bypass, preserving the inverter components. Integrated telemetry provides real-time state-of-health (SoH) metrics and predicted runtime based on current load profiles, allowing for event-driven maintenance schedules rather than fixed-interval service.

Institutional Deployment and Logistical Readiness for Large-Scale Distribution

Designed for data centers, medical equipment racks, and industrial control rooms, the S600 UPS is configured for the logistical requirements of multimodal multi-site procurement. Units are packed in palletized crates with anti-vibration foam and board-level supports to prevent solder joint fatigue during transport. Failure to implement shock-absorbing packaging results in microscopic fractures in the PCB traces, leading to intermittent power faults weeks after site commissioning. For international procurement, supply-readiness is supported through lot-specific test certificates and compliance declarations (CE/IEC) that facilitate customs clearance and institutional asset registration. Export-ready documentation include configuration images, event-log exports, and technical dossiers provided with each shipment. Packaging utilize humidity-control liners and desiccant pouches to prevent localized corrosion of the busbar contacts during maritime transit. OEM branding and private-label firmware profiles are available for reseller programs requiring branded power protective suites. This systematic approach ensure that the S600 meets the technical performance and safety requirements of global commercial and industrial markets, providing a traceable and durable solution for high-density critical power.
