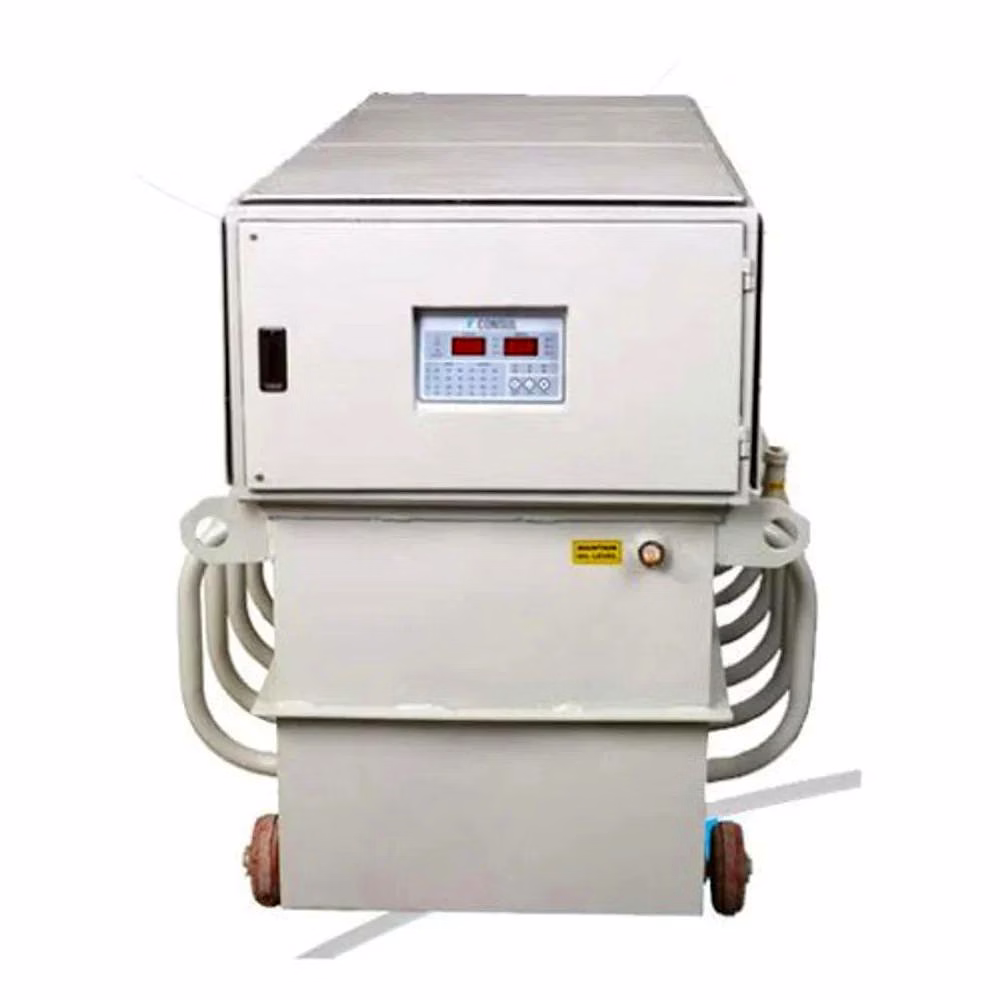

Oil Cooled Servo Stabilizers – Oil-Immersed Regulation Units

Oil Cooled Servo Stabilizers are oil-immersed voltage regulation units designed for continuous heavy-duty electrical loads in industrial environments. Utilizing an oil-filled tank to keep transformer windings and regulation elements within specified thermal limits, the unit provides stable output voltage through an automatic servo-actuated tap changer. The oil medium acts as both a coolant and a dielectric insulator, protecting the core components from environmental humidity and corrosive gasses. Units are prepared for consolidated transport on palletized skids with immobilization to protect moving elements. Shipments include serialized inspection reports and functional test certificates, ensuring supply-readiness for large-scale procurement and integration into electrical distribution systems managed by industrial equipment suppliers in the manufacturing and utility sectors.

Key Features

• Oil immersion cooling → manages winding and servo temperatures under prolonged full-load usage to extend insulation service life.
• Automatic servo regulation → delivers stable ±1% output voltage to critical process equipment, compensating for grid-borne fluctuations in real-time.
• Factory-tested with documentation → provides documented baselines for regulation accuracy and thermal performance to simplify site acceptance and compliance.

Technical Attributes

• Cooling Medium: Mineral or Dielectric oil → selection affects dielectric strength and thermal dissipation properties.
• Protection: Thermal, Pressure, Overcurrent → safeguards unit integrity and prevents tank rupture during internal faults.
• Mounting: Crate/Skid transport → selection parameter for bulk handling and minimizing transit-induced mechanical shock.
• Interfaces: Remote alarm and Telemetry → supports integration with facility monitoring and energy accounting platforms.

Electromechanical Composition and Thermal Considerations of Oil-Immersed Stabilizers

The technical framework of Oil Cooled Servo Stabilizers utilize a heavy-duty autotransformer and buck-boost windings submerged in a tank of high-grade dielectric mineral oil. This architecture is engineered to provide uniform thermal conduction from the windings to the tank walls, facilitating efficient heat rejection to the ambient environment. The structural reasoning for oil immersion is to eliminate the localized hotspots that occur in air-cooled units during sustained over-voltage correction events. Without this oil-based thermal management, the carbon brushes and commutators would suffer from "thermal pitting," leading to poor electrical contact and eventual short-circuits across the transformer taps. The internal layout physically separates the servo mechanism from the primary power transformer to minimize magnetic coupling and localized vibration. Quality consistency is managed through serialized test dossiers that record the oil dielectric strength and winding resistance after a 24-hour heat run. A failure to manage oil dielectric integrity leads to internal "tracking," where electricity jumps between windings through the contaminated oil, resulting in a catastrophic tank explosion and potential fire.

Functional Performance and Operational Efficiency in Industrial Process Loops

Operational efficiency is expressed through the stabilizer’s ability to provide a constant output voltage, which is vital for the long-term health of industrial motor drives and CNC machinery. A fluctuating supply can cause "hunting" in motor controls, leading to a 15% increase in energy consumption and a significant reduction in mechanical bearing life. The oil medium provides a secondary benefit by dampening the mechanical noise and vibration of the servo-actuated tap changer, making the unit suitable for installations near occupied control booths. If the stabilizer detects an internal fault—such as a jammed servo or a tank over-pressure event—it executes a fail-safe shutdown to protect the downstream loads. Failure to provide this protection layer exposes critical plant equipment to unfiltered grid surges, which can destroy sensitive electronic logic boards. The unit supports remote monitoring through dry-contact alarms and optional Modbus protocols, enabling B2B facility managers to track performance trends and schedule oil filtration before a fault occurs. This event-driven maintenance approach reduces unscheduled downtime and ensures that the power conditioning system serves as a reliable asset in high-uptime manufacturing facilities.

Institutional Deployment and Logistical Readiness for Cross-Border Supply

Target applications include heavy industrial plants, process control systems, and facilities with unstable incoming utility power. The unit is configured for the logistical requirements of multimodal multi-site procurement rollouts. Consignments ship on palletized skids with rigid internal immobilization blocks to secure the servo assembly against the mechanical shocks of road and sea transport. Failure to implement crate-level stabilization results in "commutator scarring," where the brushes shift during transport and damage the windings upon the first power-up. For international projects, supply-readiness is supported by serialized factory test certificates and material test reports (MTR) for the transformer copper and tank steel. Export-ready documentation include configuration images, wiring diagrams, and compliance declarations documenting safety standards (IEC/ANSI). Packaging utilizes moisture-barrier film and shock indicators to monitor handling stress during multimodal logistics. This high-authority approach ensures that procurement teams receive verified, site-ready hardware that meet the rigorous environmental and safety performance standards of global industrial markets, providing the technical transparency required for large-scale energy infrastructure management.
