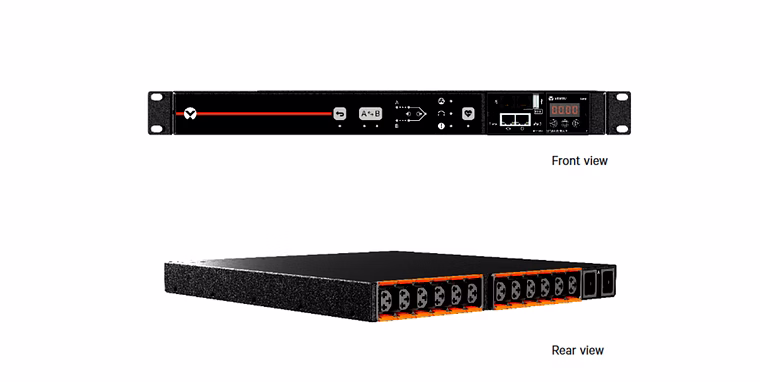

Automatic Rack Transfer Switch Single Phase – Rack-Mount Energy distribution

Automatic Rack Transfer Switch Single Phase is a low-profile power distribution unit designed for seamless power-path switching for corded IT appliances. Utilizing rapid source sensing and a low-impedance switching network, the unit maintains continuity for servers and network equipment in high-density single-phase rack environments. The architecture features a 1U or 2U chassis with standardized cord interfaces and integrated strain relief to prevent terminal stress during deployment. Units ship with serialized test records and protective foam inserts to secure internal connectors. Supply-readiness is managed through functional verification reports and interface pinouts, addressing the technical requirements of enterprise data centers and system builders seeking point-of-use redundancy. This component is essential for facilities requiring sub-cycle transfer speeds to coordinate with upstream UPS systems and ensure high availability for rack-mounted IT infrastructure.

Key Features

• Sub-cycle transfer speed → ensures zero-break power switching to prevent server reboots and network hardware resets during source anomalies.
• Standardized cord interfaces → utilizes IEC or NEMA standard connectors for universal compatibility and simplified cable management in dense racks.
• Low-profile 1U/2U form factor → maximizes usable vertical space in standard 19-inch cabinets for server and switch equipment stacks.

Technical Attributes

• Phase: Single-phase → selection parameter for matching rack-level electrical topology.
• Switching Logic: Automatic source sensing → determines the threshold for rapid load transfer to secondary supply.
• Interface: Front-panel LCD + LED status → provides local diagnostics for source availability and unit health.
• Communications: SNMP or Web interface → selection parameter for remote monitoring and event logging in a NOC environment.

Mechanical Layout and Interface Logic of Rack-Mount Transfer Switches

The technical framework of the Automatic Rack Transfer Switch Single Phase utilize a compact electromechanical or solid-state switching core (model dependent) governed by high-speed sensing electronics. The structural reasoning for the low-profile 19-inch chassis is to allow for "Top of Rack" or "Zero-U" mounting, minimizing the footprint within high-density server halls. Internal contact assemblies use high-conductivity copper alloys with specialized plating to minimize resistive losses and localized heat gain. A failure in the source sensing logic—due to firmware corruption or component drift—can result in "out-of-phase" switching, which generates massive inrush currents capable of destroying the power supply units (PSU) of all connected IT appliances. Our manufacturing logic incorporates phase-angle synchronization checks to ensure the switch only executes transfers when sources are within safe alignment. The chassis include cable strain-relief brackets to prevent terminal fatigue; without these, the constant vibration of nearby server fans would lead to loose connections and potential arcing. Quality consistency is managed through serialized test reports that record the exact transfer time and voltage drop under 100% load, ensuring the unit meets the technical specifications of enterprise procurement.

Functional Performance and Integration Behavior in Data Center Racks

Operational efficiency is achieved through the device’s ability to detect source anomalies—such as voltage sags or frequency shifts—and execute a transfer in under 10 milliseconds. This speed is critical because standard server PSUs only provide approximately 16-20 milliseconds of "hold-up time"; a slower switch would cause the equipment to crash. Functional performance centers on the unit’s compatibility with varied IT loads, from linear networking gear to non-linear server power supplies. If the switch detects an internal fault or an over-current condition on the load side, it triggers an alarm via its integrated SNMP interface, allowing NOC operators to investigate before a system-wide outage occur. The unit supports scheduled firmware updates via a service port, ensuring long-term compatibility with evolving data center management protocols. A failure to manage thermal loads within the chassis results in "nuisance trips" of the internal circuit breakers; the Vertiv design utilizes passive airflow patterns and heat-spreading enclosures to maintain component temperatures within rated limits. This systematic approach ensure the rack transfer switch provides a reliable point-of-use redundancy layer, effectively improving the overall uptime of the IT infrastructure.

Institutional Deployment and Logistical Readiness for IT Rollouts

Intended for enterprise server racks, telecom cabinets, and distributed IT aggregation points, the Automatic Rack Transfer Switch is configured for the logistical requirements of project-scale deployments. Units ship in foam-lined crates that secure the connectors and front-panel switches against the mechanical shocks of multimodal transport. Failure to implement shock-rated packaging can lead to microscopic displacement of the internal switching relays, resulting in a unit that "chatter" or fail to latch upon site commissioning. For international procurement, supply-readiness is supported through serialized test records and lot-specific inspection certificates (CE/UL). Export-ready documentation include interface pinouts and mounting templates provided with each shipment to facilitate rapid on-site installation. Packaging utilize moisture-barrier film and desiccants to prevent humidity-induced terminal oxidation during maritime transit. OEM private-label options include front-bezel customization and alternate cord outlet types to match specific facility standards. This high-authority approach ensures that procurement teams receive verified, site-ready hardware that meet the rigorous performance and safety requirements of global data center markets, providing the technical transparency required for institutional asset registration and facility-level commissioning.
