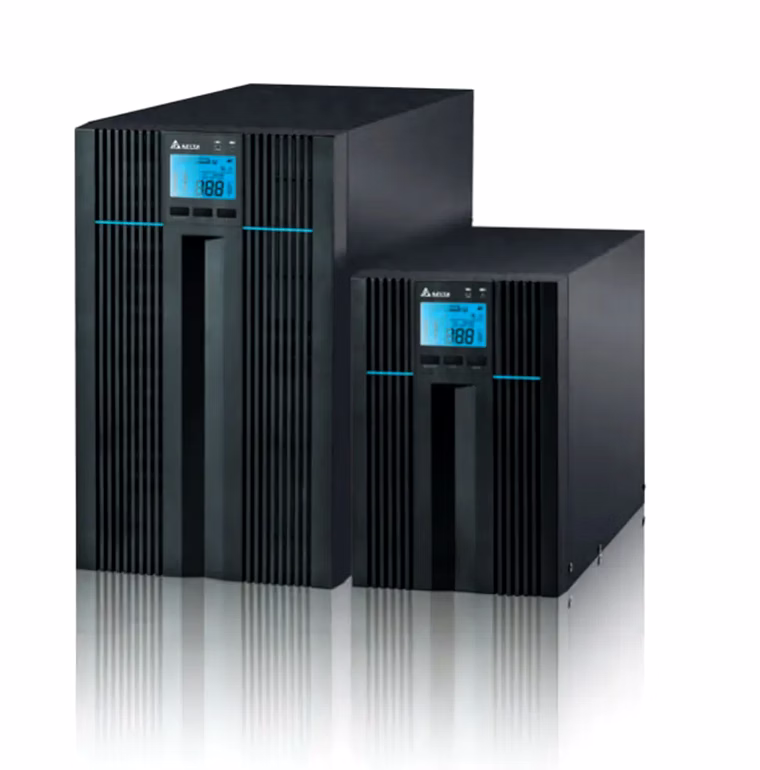

Delta UPS N Series, Single Phase 3 kVA – Internal Battery Cabinet

Delta UPS N Series 3 kVA is a single-phase online double-conversion power module featuring an integrated internal battery bank. Engineered for high-density IT closets and clinical equipment, the unit provides continuous conditioned power with zero transfer time. The architecture emphasizes a compact footprint and front-access serviceability for rapid battery replacement. Units are prepared for production-scale distribution, featuring palletized shock-mount packing and serialized test records. Supply-readiness is managed through per-unit load testing and functional burn-in data, addressing the requirements of facility managers seeking verified, site-ready power protection with documented compliance for institutional asset registration.

Key Features

• Double-conversion online topology → ensures complete isolation from mains disturbances, providing a pure sine-wave output without any transfer delay during supply failures.
• Integrated sealed battery stack → maximizes vertical rack efficiency by housing energy storage within the primary chassis, eliminating the need for separate battery trays.
• Hot-swappable module architecture → enables battery maintenance and replacement while the UPS remains online, significantly reducing the mean time to repair (MTTR).

Technical Attributes

• Rated Power: 3 kVA → primary selection parameter for matching localized branch circuits and IT load profiles.
• Input Tolerance: Wide voltage window → selection parameter for ensuring stability under fluctuating grid or generator supply.
• Battery Configuration: Internal VRLA → determines the primary autonomy window for graceful system shutdowns.
• Diagnostics: Local HMI + SNMP options → facilitates remote telemetry and event logging for building management systems (BMS).

Internal Architecture and Thermal Management Logic of the Delta N 3 kVA

The technical framework of the Delta UPS N Series, Single Phase 3 kVA (internal battery) utilizes a high-frequency insulated-gate bipolar transistor (IGBT) power stage designed for precise AC synthesis. The double-conversion logic ensures that incoming AC power is rectified to a stable DC bus and then re-inverted. This structural reasoning is vital for protecting sensitive clinical logic from "harmonic injection" common in industrial environments. Measurement physics rely on high-speed DSP feedback loops to maintain voltage regulation within ±1%. A failure in the DC bus stabilization—typically due to capacitor aging or internal surge damage—results in "ripple injection" into the output waveform. This failure mode can cause connected server power supplies to overheat and decommission the entire IT node. Quality consistency is managed through serialized test reports documenting waveform purity under 100% linear and non-linear loads. The unit utilizes a multi-speed fan control system to manage the internal thermal envelope; a failure in the fan modulation—due to sensor drift—leads to "IGBT thermal fatigue," triggering a hard shutdown to prevent catastrophic semiconductor rupture.

Functional Performance and Battery Management in Compact Nodes

Operational efficiency is achieved through the system’s high power factor (up to 0.99), reducing the reactive power load on the facility distribution. Functional performance centers on the unit’s integrated battery management system (BMS), which executes a specialized 3-stage charging algorithm to prevent plate sulfation. In real operational scenarios, a failure to manage the "charging voltage ripple" leads to localized thermal gain in the internal cells—a failure mode known as "electrolyte dry-out" that reduces battery service life by up to 50%. The N Series utilizes internal thermal sensors to monitor the battery stack; if temperatures exceed safe limits—due to poor cabinet ventilation—the charger derates to protect the cells. If the inverter senses a sustained overload, it executes a zero-break transfer to the high-speed static bypass; failure to execute this transfer within 4ms leads to equipment reboots and data loss. Grounding integrity is maintained through an internal earth-leakage monitor, an essential operational standard for clinical environments where patient safety and EMI suppression are paramount.

Institutional Deployment and Logistical Readiness for IT infrastructure

Designed for small server rooms, medical point-of-care stations, and commercial distribution nodes, the N 3 kVA is configured for the logistical requirements of multimodal multi-site rollouts. Units ship in reinforced cartons with shock-fixation points and moisture-barrier film to protect the internal PCBA from environmental tracking during transit. Failure to implement shock-rated packaging can lead to microscopic fractures in the transformer mounts, manifesting as audible noise and potential vibration-induced component failure weeks after site commissioning. For international procurement, supply-readiness is supported through lot-based traceability and certificates of analysis (CE/IEC). Export-ready documentation includes unit configuration snapshots and installation checklists provided with each shipment to facilitate institutional asset registration. OEM private-label branding and custom firmware profiles are available for system builders requiring branded power modules. This high-authority approach ensures procurement teams receive verified, site-ready hardware that meet the performance requirements of global manufacturing and healthcare markets.
