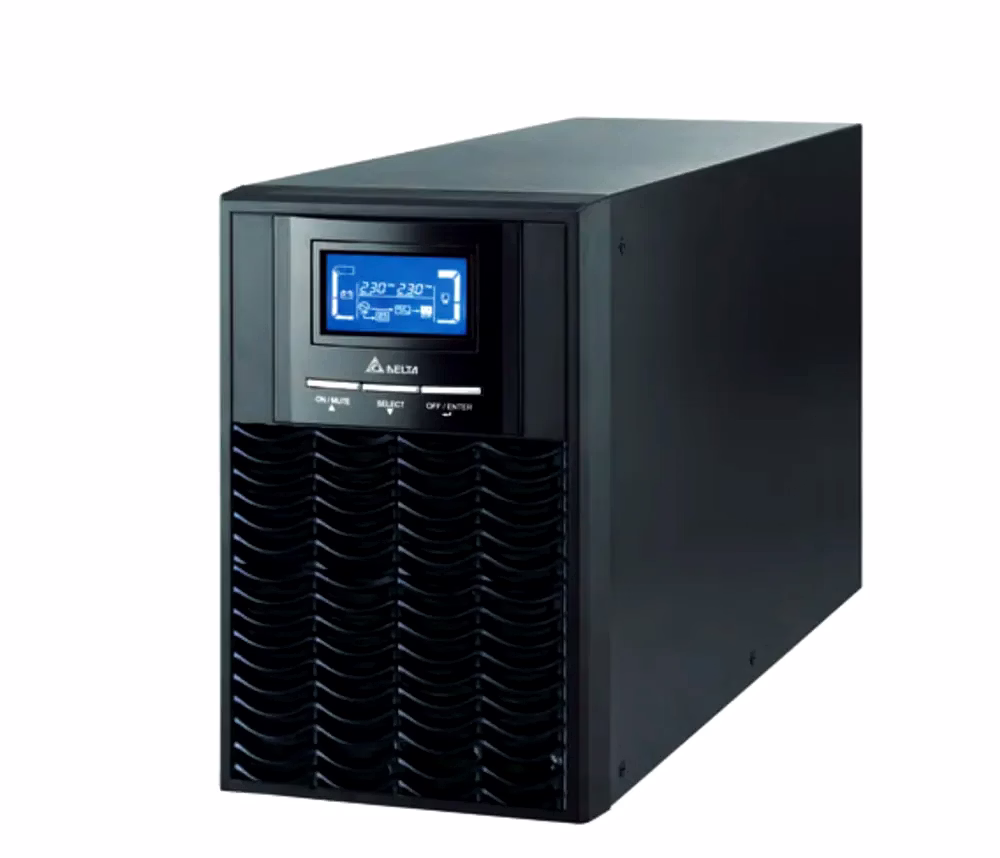

Delta UPS INX Series 1/2/3 kVA Extended Runtime – 16A Single Phase Module

Delta UPS INX Series 1/2/3 kVA Extended Runtime units are single-phase power modules specifically engineered for increased battery autonomy and high-current 16A output interfaces. utilizing an online double-conversion topology, the platform balances inverter efficiency with an enhanced battery management subsystem to support prolonged discharge cycles without chassis expansion. The unit architecture features high-resolution current sensing to protect cells during extended outages. Offered in palletized configurations for large-volume procurement, INX units include serial-numbered test reports and configurable runtime options. Supply-readiness is managed through functional verification and thermal cycling, addressing the requirements of facility managers seeking long-duration power protection for edge data closets and medical apparatus requiring documented runtime reliability for institutional asset management.

Key Features

• 16A High-current output interface → ensures compatibility with standard facility high-load circuits, reducing the need for specialized electrical distribution panels.
• Enhanced Battery Management (EBM) → utilizes an active balancing algorithm to prolong usable charge cycles and minimize capacity drift across repeated deep-discharge events.
• Extended-runtime chassis logic → optimized for external battery bank integration, allowing for customizable autonomy profiles without significantly increasing the UPS footprint.

Technical Attributes

• Power Range: Selectable 1/2/3 kVA → selection parameter for right-sizing localized IT racks or clinical support nodes.
• Interface Standard: 16A Single Phase → determines the branch circuit compatibility and defines the maximum connected load density.
• Cooling: Sensor-regulated forced-air → ensures continuous operation within standard ambient limits by modulating fan speed based on load and temperature.
• Serviceability: Front-access battery trays → selection parameter for facilitating rapid field maintenance and predictive replacement cycles.

System Architecture and Battery Management Logic of the INX Series

The technical framework of the Delta UPS INX Series 1KVA Single Phase Extended Runtime Models (16A) 1/2/3 kVA utilizes a high-efficiency inverter stage coupled with a scalable battery interface. The structural reasoning for the dedicated 16A interface is to provide high-mass current delivery for loads that exceed standard 10A socket ratings, such as medical imaging workstations or dense storage arrays. Measurement physics rely on a high-speed DSP that coordinates the rectifier and inverter stages; a failure in the phase-synchronization logic—due to internal EMI—results in "output jitter" and frequency drift. This failure mode decommissions the stability of sensitive clinical gear and can cause data corruption in connected storage. The battery management system (BMS) employs an active balancing algorithm that reduces the "voltage dispersion" between individual cells in the string. Quality consistency is managed through serialized test reports documenting the unit's efficiency and harmonic distortion levels. The internal PCBA is conformally coated to protect against the high-humidity environments common in unconditioned technical rooms.

Functional Performance and Operational Efficiency in Extended-Run Sites

Operational efficiency is achieved through the unit’s optimized conversion logic, which minimizes internal heat load during prolonged discharge events. Functional performance centers on the unit’s ability to provide deterministic runtime planning; if the battery health metrics are not accurately reported—due to sensor drift—the system may trigger a premature low-voltage disconnect (LVD). To mitigate this, the INX series provides high-fidelity state-of-charge (SoC) telemetry via its communication interface. In a real operational scenario, a failure in the inrush current limiting circuit leads to "contactor pitting" or fuse blowing during the initial power-on sequence—effectively decommissioning the facility's power protection. The unit utilizes soft-start circuitry to protect both the internal components and the facility's upstream breakers. If the unit detects an internal logic fault, it triggers an audible alarm and initiates an automatic transfer to the static bypass. By establishing a documented baseline of battery health and predicted runtime, the operator effectively improves the facility's situational awareness, allowing for informed load-shedding sequences during extended outages.

Institutional Deployment and Logistical Readiness for Export Logistics

Designed for remote communication closets, small medical facilities, and retail IT hubs, the INX Series is configured for the logistical requirements of project-scale multi-site procurement. Units ship on palletized crates with internal shock mounts and humidity-control liners to protect the sensitive inductors and semiconductors during multimodal transit. Failure to implement shock-mitigating packaging can lead to "transformer humming" or loose electrical joints, manifesting as high-resistance joints weeks after installation. For international procurement, supply-readiness is supported through serialized test records and compliance declarations (ISO/CE). Export-ready documentation includes unit configuration snapshots and material safety data sheets (MSDS) provided with each consignment to facilitate customs review and institutional asset registration. Packaging utilize vapor-barrier covers to prevent terminal oxidation during maritime freight. OEM branding and customized runtime profiles are available, allowing buyers to standardize their power protection suite across global portfolios. This high-authority approach ensures procurement teams receive verified, site-ready hardware that meet the performance and safety requirements of global manufacturing and healthcare markets.
