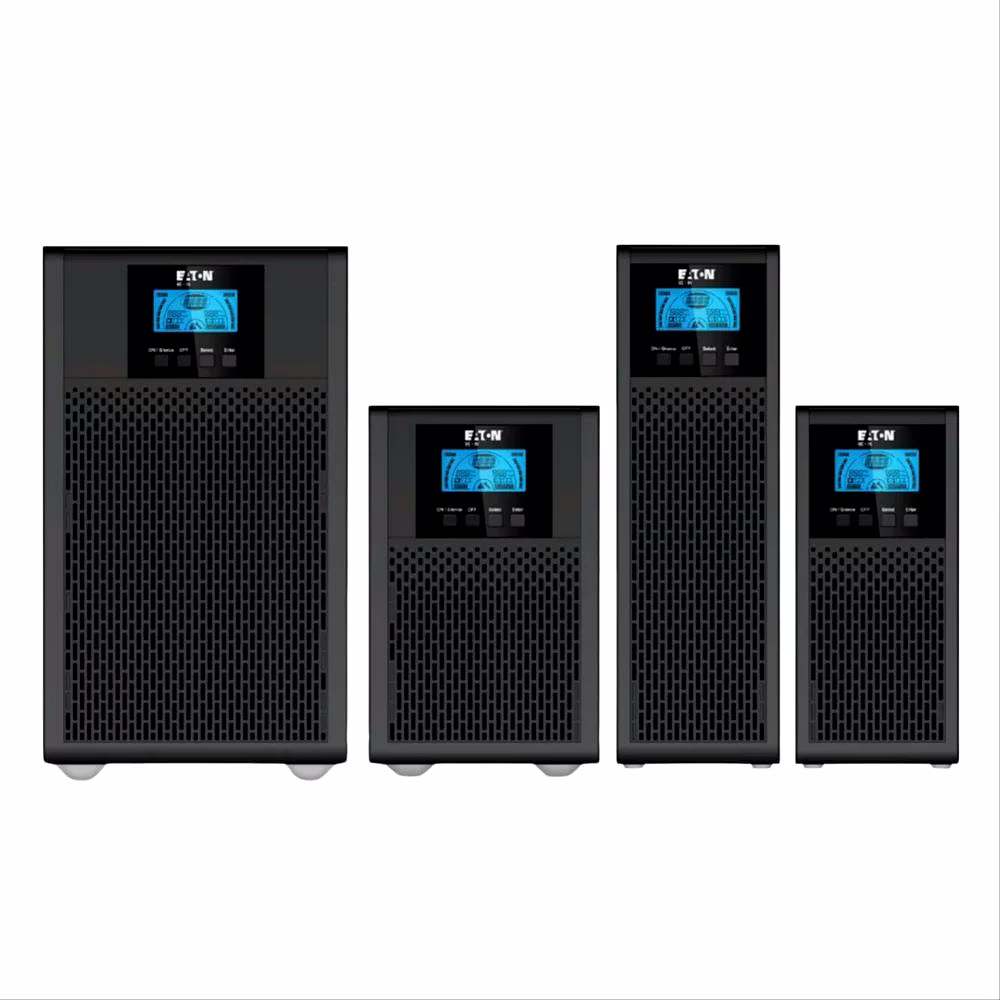

Eaton 9E-IN 2 kVA Online UPS – 2 kVA Industrial Online Module

Eaton 9E-IN 2 kVA Online UPS is a single-phase online double-conversion power module designed for continuous protection of critical circuits in industrial environments. Engineered for small IT racks and point-of-care clinical gear, the unit provides regulated output with zero transfer time to battery reserve. The unit architecture features integrated charge control and active electrical filtering to minimize susceptibility to common-mode disturbances. Units are prepared for consolidated shipment with dampening frames and environmental liners. Supply-readiness is managed through per-lot electrical verification and full-load burn-in logs, addressing the requirements of facility managers seeking documented reliability and performance baselines for site acceptance testing and energy accounting within institutional procurement frameworks.

Key Features

• Online double-conversion architecture → provides complete isolation of the load from grid disturbances, delivering a pure AC sine-wave with zero break time during mains failure.
• Active Battery Management (ABM) → utilizes a multi-stage charging algorithm and cell balancing to extend battery service life and ensure capacity readiness.
• Industrial-grade electrical filtering → features integrated common-mode suppression and EMI shielding to maintain signal integrity in electrically noisy plant environments.

Technical Attributes

• Rated Power: 2 kVA / 1.8 kW → primary selection parameter for matching localized sensor arrays and instrumentation loads.
• Cooling: Thermal-regulated forced-air → identifies the required airflow and defines the acoustic profile for equipment-adjacent mounting.
• Diagnostics: Event logging + Status telemetry → provided to facilitate remote troubleshooting and building management system (BMS) integration.
• Service Access: Front-panel layout → selection parameter for reducing maintenance duration and simplifying battery module exchange.

Electrical Design and Battery Strategy of the 9E-IN 2 kVA UPS

The technical framework of the Eaton 9E-IN 2 kVA Online UPS utilizes a high-frequency PWM inverter stage optimized for low harmonic distortion and precise voltage synthesis. The structural reasoning for the online architecture is to provide "safe-state isolation"—at all times, the load is fed by synthesized AC, shielding it from harmonic pollution common in industrial grids. Measurement physics rely on a high-speed DSP that monitors both input and output parameters in real-time; a failure in the DC bus regulation circuit—due to component drift or surging—leads to "waveform clipping," which can decommissioning the stability of sensitive diagnostic hardware. Quality consistency is managed through serialized test reports documenting voltage regulation within ±1%. The internal layout utilizes segregated compartments for the power electronics and batteries to reduce "thermal crosstalk." A failure to manage internal heat—due to fan obstruction—results in accelerated aging of the electrolytic capacitors. Our manufacturing logic employs hardware-level isolation on the battery trays to ensure polarity integrity and prevent replacement errors during site maintenance.

Functional Performance and Operational Efficiency in Industrial Sites

Operational efficiency is achieved through the system’s high-efficiency conversion stages and ECO mode capability, which reduce the localized facility heat load. Functional performance centers on the unit’s intelligent charger, which follows a specialized multi-stage algorithm to prevent "plate sulfation" in standby energy storage. In real operational scenarios, a failure in the charging circuit leads to "electrolyte dry-out" or thermal runaway—a failure mode that decommissions the autonomy window and can lead to melting containers. The 9E-IN utilize integrated thermal sensors to modulate the charger output as ambient temperatures rise. If the UPS detects an internal logic fault or an overload event, the high-speed static bypass executes a zero-break transfer to mains. By establishing a documented baseline of predicted runtime and state-of-health (SoH), the operator effectively improves the facility's situational awareness, allowing for informed load-shedding sequences during outages. The unit provides telemetry outputs including real-time load percentage and battery capacity, supporting preventative maintenance scheduling through the facility’s centralized SCADA interface.

Institutional Deployment and Logistical Readiness for Infrastructure

Intended for small server racks, laboratory instruments, and clinical equipment circuits, the 2 kVA industrial UPS is configured for the logistical requirements of multimodal procurement. Units ship in reinforced cartons with anti-vibration inserts and moisture-barrier film to protect the sensitive internal inductors and battery connectors from mechanical shock during transit. Failure to implement shock-mitigating packaging can lead to "transformer humming" or loose electrical joints, manifesting as high-resistance joints weeks after installation. For international procurement, supply-readiness is supported through serialized performance logs and compliance declarations (CE/IEC). Export-ready documentation includes wiring diagrams, configuration guides, and material safety data sheets (MSDS) provided with each shipment to facilitate customs review and institutional asset registration. Packaging utilize vapor-barrier covers and desiccants to prevent terminal oxidation during maritime freight. OEM private-label integration is supported, allowing system builders to deliver branded suites with serialized records. This high-authority approach ensures procurement teams receive verified hardware that meet the performance and safety requirements of global manufacturing and healthcare markets.
