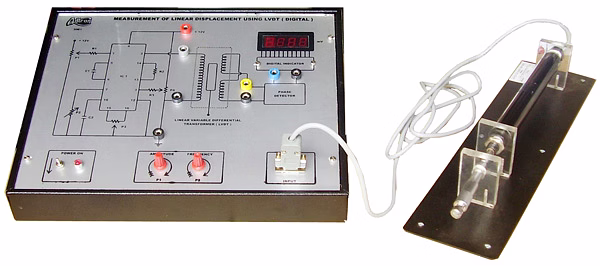

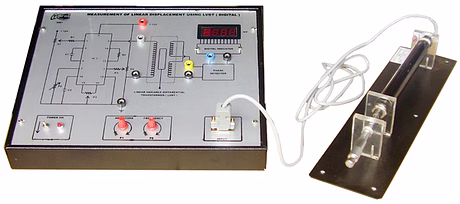

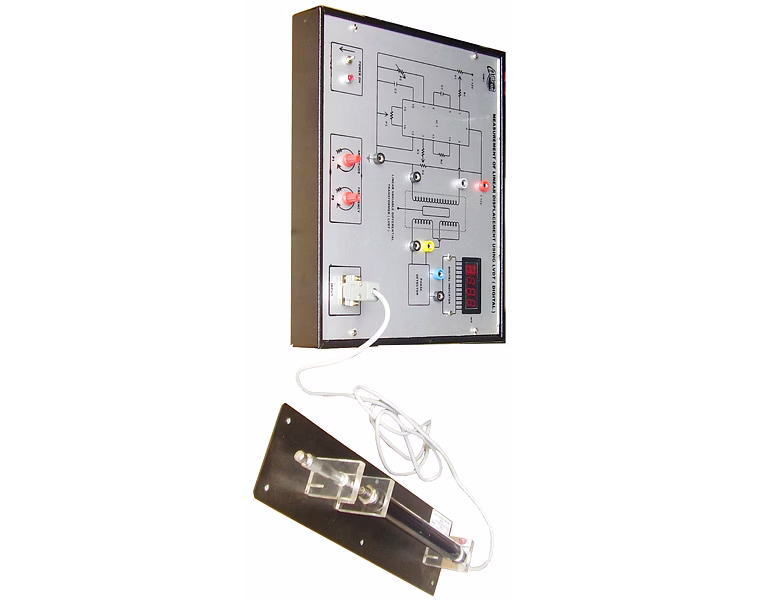

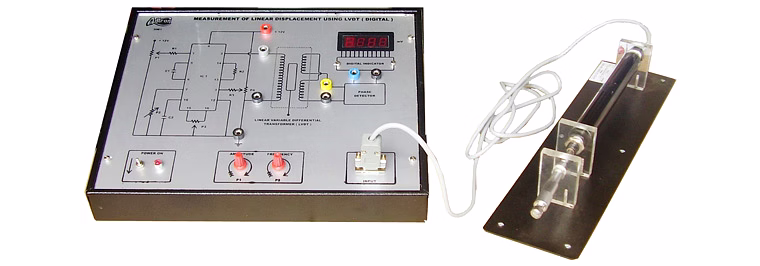

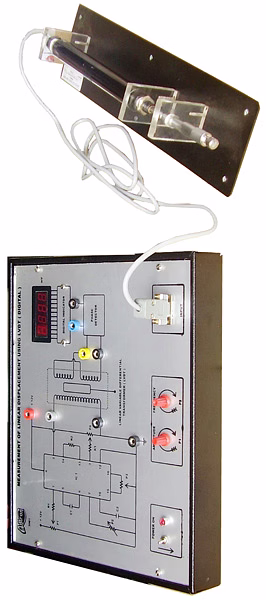

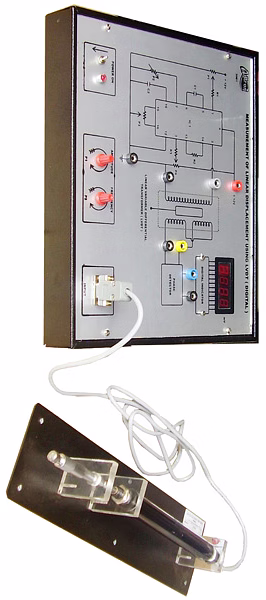

The Measurement of Linear Displacement Using LVDT Trainer (Digital) is a specialized educational and industrial training system designed to demonstrate the principles and applications of the Linear Variable Differential Transformer (LVDT) for accurate linear displacement measurement. This trainer integrates a precision micrometer adjustment mechanism for controlled displacement variation, a spring-loaded axial type LVDT transducer with a full stroke range of ±10 mm, and advanced electronic instrumentation with a variable AC excitation source ranging from 2 KHz to 5 KHz and 0 to 3V amplitude. The system features a 3.5-digit digital display that measures output voltage from 0 to 200 mV DC, directly reflecting displacement changes in millivolts, with polarity indication through a plus sign to denote core movement direction. All components are elegantly housed in a powder-coated metal cabinet with an imported acrylic front panel providing a user-friendly interface and multicoloured test points for waveform and voltage observation at different circuit stages. Operating on standard 230V AC supply, this trainer is an essential tool for professionals and educational institutions focusing on precise measurement technologies, instrumentation engineering, and practical training in transducer applications.
Key Features
| Features | Description |
|---|---|
| Transducer Type | Linear Variable Differential Transformer (LVDT), spring loaded core, axial configuration |
| Displacement Measurement Range | ±10 mm full stroke |
| Displacement Variation Method | Precision micrometer with 1 mm pitch |
| Excitation Source | Variable frequency sine wave 2 KHz to 5 KHz, amplitude 0 to 3V |
| Readout Display | 3.5-digit digital display measuring 0 to 200 mV DC with polarity indication |
| Operating Voltage | 230V ±10% AC, Single Phase |
| Test Points | Multicoloured test points for waveform and voltage observation |
| Enclosure and Interface | Powder-coated metal cabinet with imported acrylic front panel |
| Application | Educational and industrial training for linear displacement measurement using LVDT |
| Attributes | Description |
|---|---|
| Parameter Measured | Linear Physical Displacement |
| Measurement System | Micrometer and LVDT with electronic instrumentation |
| Transducer Full Stroke Range | ±10 mm |
| Micrometer Pitch | 1 mm |
| Excitation Frequency Range | 2 KHz to 5 KHz |
| Excitation Amplitude Range | 0 to 3 V (AC) |
| Digital Display | 3.5-digit, 0 to 200 mV DC, with polarity indication |
| Operating Voltage | 230V ±10% AC, Single Phase |
| Cabinet Material | Powder coated metal |
| Front Panel Material | Imported acrylic |
| Test Points | Multicoloured for circuit monitoring |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The LVDT transducer used in this trainer has a full stroke range of ±10 mm.
The digital readout provides a polarity indication with a '+' sign to show the core is moving in or out.
Yes, the excitation is a sine wave with adjustable frequency ranging from 2 KHz to 5 KHz and amplitude from 0 to 3V AC.
A specially designed micrometer arrangement with a 1 mm pitch is used for precise displacement control.
Yes, the system provides multicoloured test points at various circuit stages for waveform and voltage observation.
Brand: adtron
Country Of Origin: India
SALIENT FEATURES :
Displacement measurement system demonstrates the principle and working of the specialized dedicated transducer known as “Linear Variable Differential Transformer ( LVDT )” and also shown is one of its unique application to measure linear physical displacement. A special micrometer arrangement to vary the displacement accurately, a variable excitation source, electronic instrumentation and digital readout all enclosed in a specially designed users friendly elegant powder coated metal cabinet with intelligently designed layout on imported acrylic front panel, are some of its other important features.
TECHNICAL SPECIFICATIONS :
Parameter Measured : Linear Physical Displacement.
Measurement System : a. Micrometer.
b. Transducer with electronic instrumentation.
Transducer : Linear Variable Differential Transformer ( LVDT ) based linear
displacement transducer.
Type : Spring loaded core type.
Configuration : Axial type.
LVDT Full Stroke : + 10 mm range.
Actual Displacement : By Micrometer arrangement.
Pitch : 1 mm.
Circuit : AC Excitations Source, Phase detector & digital display.
Excitation Source : Sine wave of 2 KHz to 5 KHz variable frequency and 0 to 3V variable amplitude.
Readout : 3.5digit digital display to measure 0 to 200 mV DC, indicating
displacement in millivolts with core in / out indicated by + sign.
Operating Voltage : 230V, + 10 % AC 1 .
Test Points : Multicoloured test points are provided at various stages in the circuit
to observe the waveforms and voltages
