The Measurement of Pressure Using Pressure Transducer Trainer (Digital) is an advanced educational and practical tool designed for precise demonstration and study of pressure measurement principles using pressure transducers. This standalone unit integrates a general-purpose strain gauge pressure transducer with an electronic instrumentation system, providing real-time digital readouts of pressure in Kg/cm². Featuring a 0 to 10 Kg/cm² measurement range and a highly sensitive solid-state precision amplifier, the trainer delivers accurate and reliable data essential for engineering laboratories, technical training centers, and R&D applications. Encased within a durable powder-coated metal cabinet with a user-friendly acrylic front panel, the setup includes an excitation signal source, zero adjustment controls, multicolored test points for easy waveform and voltage monitoring, and a clear 3.5 digit digital display for direct pressure readings. Its compatibility with standard 230V AC power supplies and inclusion of a shielded cable connector enhances operational convenience and safety. This pressure transducer trainer is specifically engineered to advance professional knowledge and hands-on experience in pressure sensing technologies and electronic instrumentation interfacing.
Key Features
| Features | Description |
|---|---|
| Measurement Parameter | Pressure in Kg/cm² |
| Pressure Range | 0 to 10 Kg/cm² |
| Pressure Sensor Type | Strain Gauge Bridge Type |
| Excitation Voltage | 5V DC Regulated |
| Amplifier Type | Solid State Precision Amplifier |
| Display | 3.5 Digit Digital Meter |
| Test Points | Multicoloured for waveform and voltage observation |
| Cabinet Material | Powder Coated Metal |
| Power Supply | 230V ± 10% AC, 50Hz, Single Phase |
| Transducer Termination | 1/2" D.S.P. Connector with Shielded Cable |
| Attributes | Description |
|---|---|
| Measurement System | Electronic Instrumentation with Transducer |
| Transducer Used | General Purpose Pressure Transducer |
| Sensor Configuration | Bridge Circuit |
| Zero Adjustment Control | Multiturn Potentiometer |
| Indicator | Mains ON/OFF Indicator |
| Connector Facility | For Connecting Pressure Transducer |
| Display Type | Digital 3.5 Digit Display |
| Operating Environment | Controlled Laboratory Setting |
| Dimensions | Standard Trainer Size (Specific dimensions not provided) |
| Weight | Not Specified |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The trainer uses a general-purpose strain gauge type pressure transducer configured as a bridge circuit, capable of measuring pressures from 0 to 10 Kg/cm².
Measured pressure values are displayed digitally on a 3.5 digit digital meter, providing direct and clear readings.
Yes, the trainer includes a multiturn potentiometer control for precise zero adjustment of the output signal.
The front panel has multicolored test points installed at various stages in the circuitry, allowing users to observe waveforms and voltages with appropriate measuring instruments.
The transducer is powered by a regulated 5V DC excitation source built into the trainer.
Yes, the compact, elegant powder-coated metal cabinet with an acrylic front panel makes it durable and ideal for engineering laboratories and technical training centers.
Yes, it provides a 1/2" D.S.P connector with a shielded cable for easy transducer connection or replacement.
The trainer operates on a standard 230V ± 10% AC, 50Hz single-phase power supply.
Brand: adtron
Country Of Origin: India
SALIENT FEATURES:

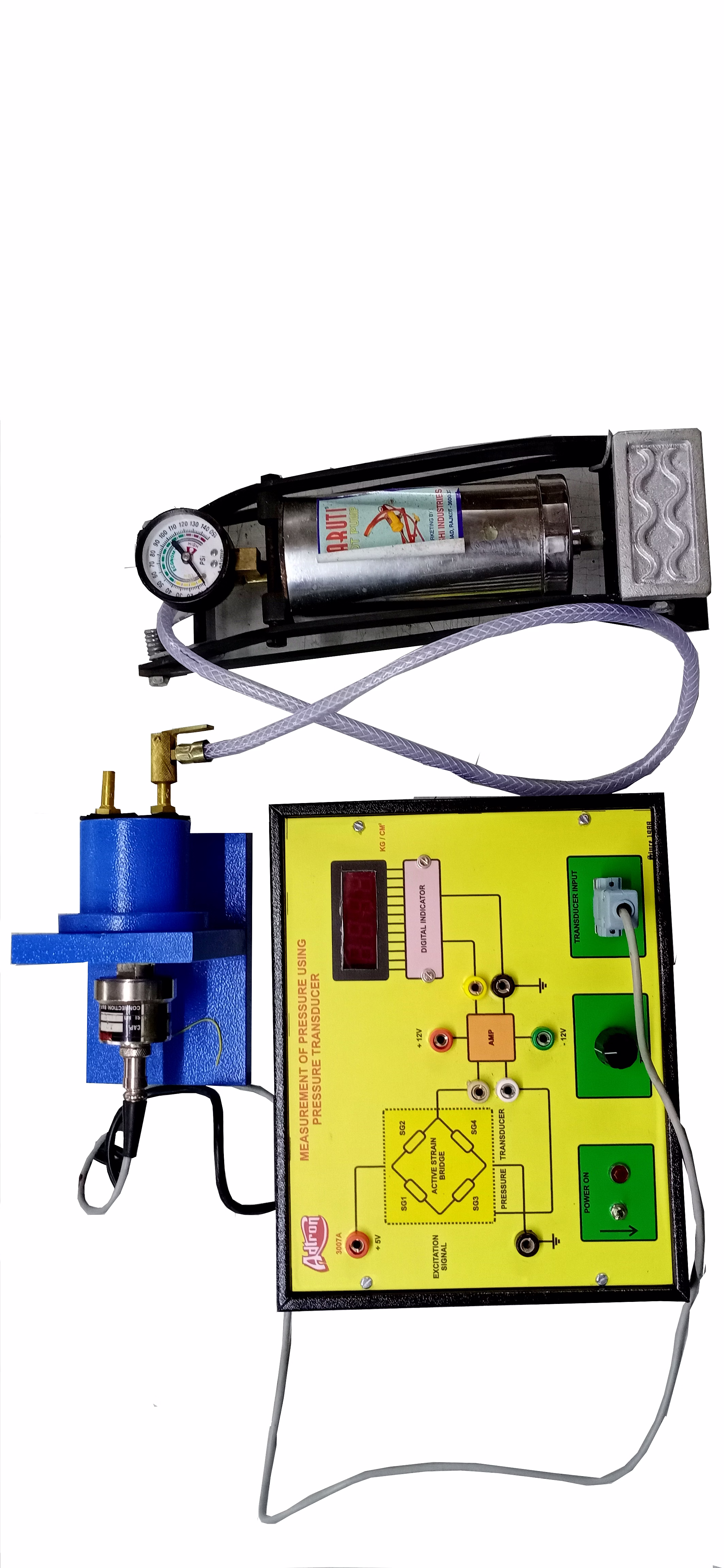

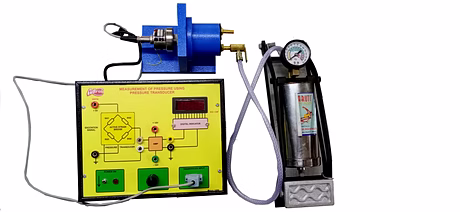

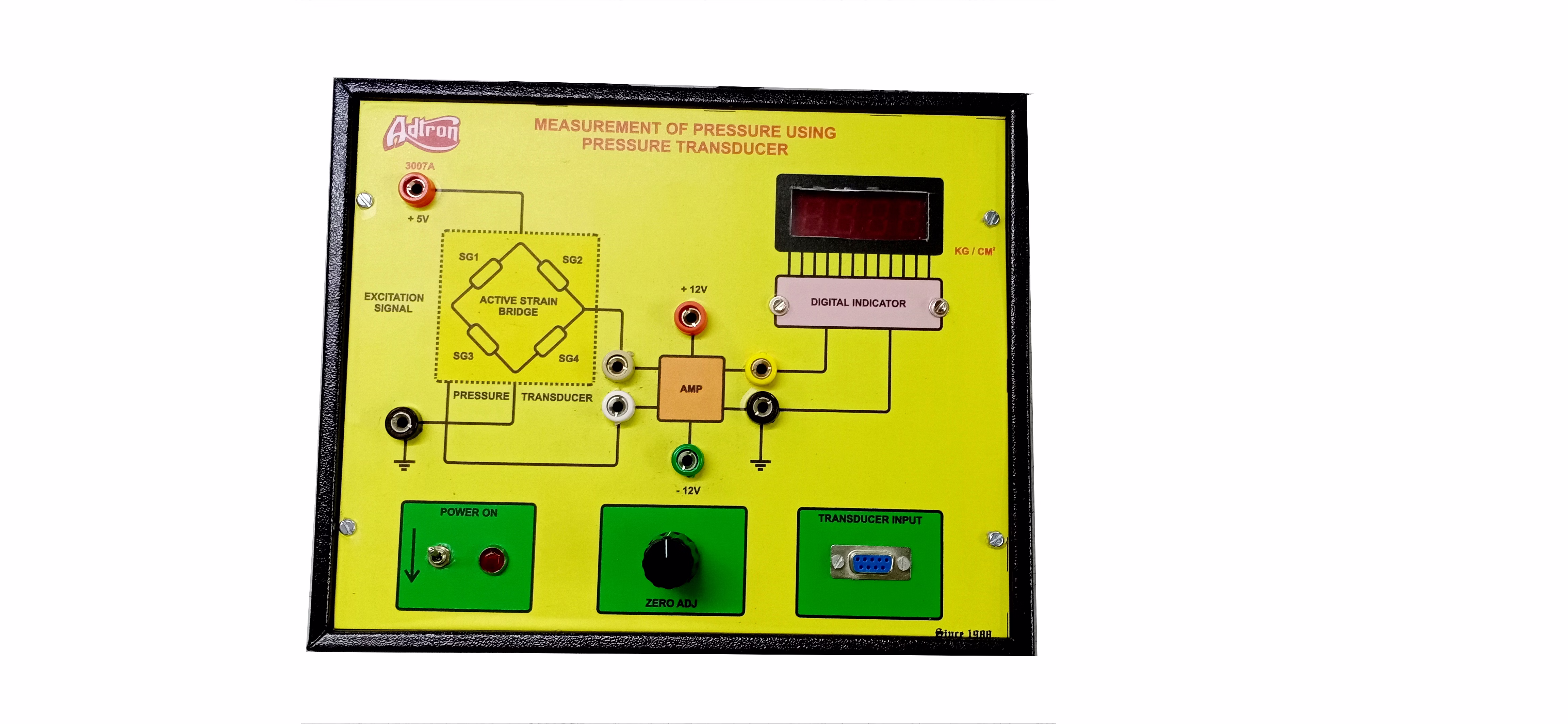

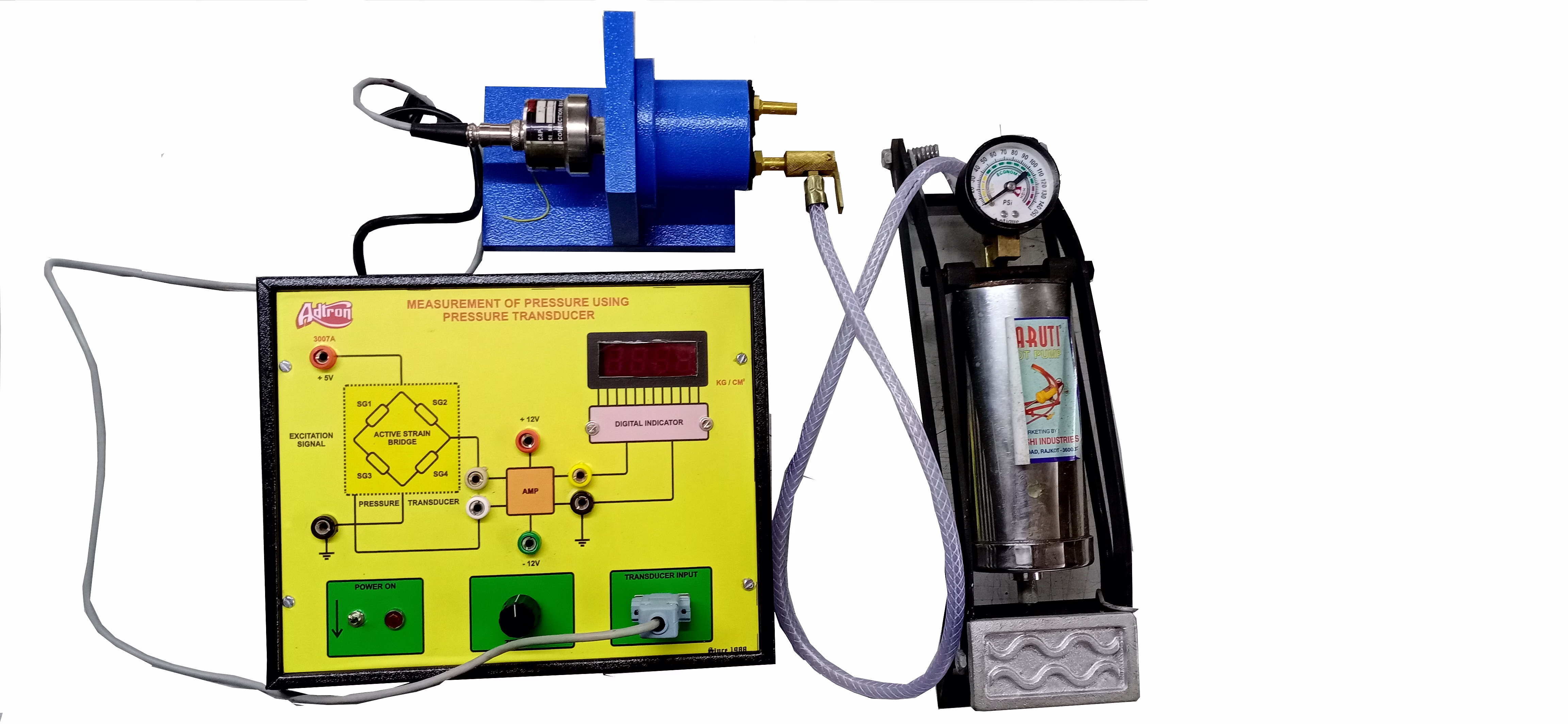

Measurement of Pressure using pressure transducer is a versatile self contained stand alone unit useful in the study and demonstration of the principle and working of a pressure transducer. The trainer consists of an excitation signal source, highly sensitive solid state amplifier, digital meter for direct reading of pressure. The trainer is enclosed in an elegant powder coated metal cabinet with intelligently designed layout on acrylic front panel.
TECHNICAL SPECIFICATIONS
Parameter Measured : Pressure (Kg/ cm2)
Measurement System : Transducer with electronic instrumentation.
Transducer Used : General purpose pressure transducer with shielded cable and
connector.
Transducer Range : 0 to 10 Kg/cm2.
Sensor : Strain Gauge type.
Configuration : Bridge type
Excitation Source : 5V DC (Regulated).
Termination of Transducer : 1/2" D.S.P.
Amplifier : Solid state precision amplifier.
Readout : 3.5 digit digital display.
Controls : Multiturn potentiometer for zero adjustment.
Test Points : Multicoloured test points are provided at various stages in the circuit
to observe the waveforms and voltages.
Indicator : Mains ON/OFF.
Connector : Facility for connecting transducer.
Power Requirements : 230V, 10% AC 50Hz, 1 phase.
