SALIENT FEATURES :

¢ Completely self contained stand - alone unit.

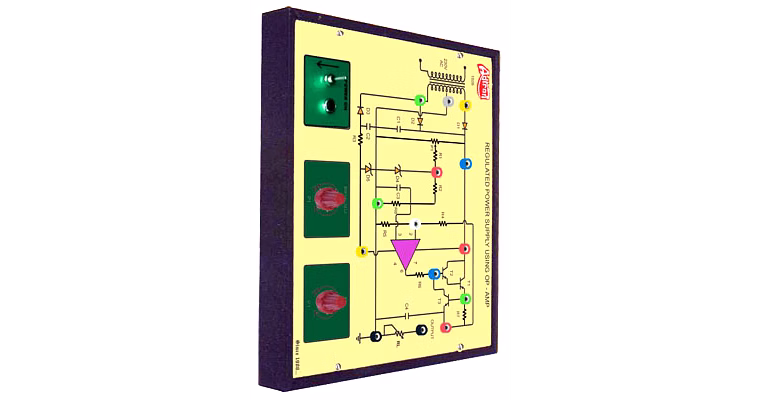

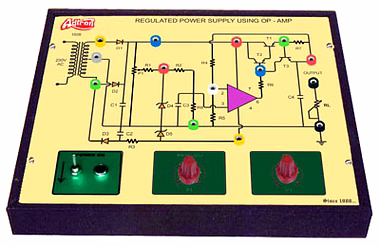

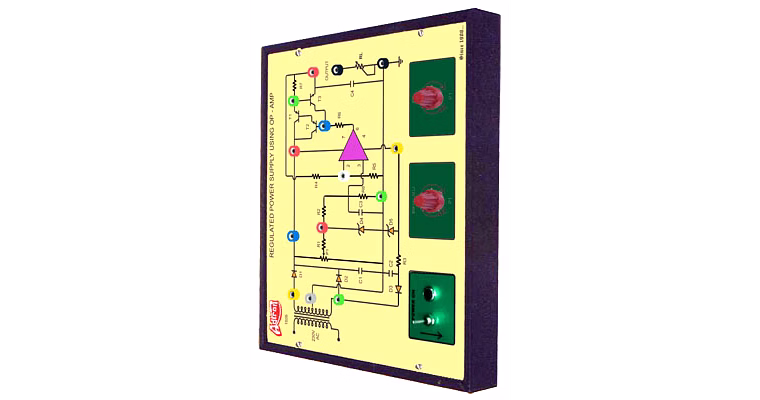

¢ Demonstrates the principle of construction and working of a regulated power supply using Op - amp.

¢ Supply required 230V, 50Hz AC.

¢ Built - in voltmeter and ammeter to measure voltage and current.

¢ Facility for increasing the current capacity of the regulator using power transistor.

¢ Conversion of the circuit as a floating supply, -ve ground supply, and +ve ground supply.

¢ Measurement of basic parameters of a DC regulated power supply.

¢ Determination of line regulation load regulation and ripple factor.

¢ Test points at various stages in the circuit, enable to observe the waveforms and voltages.

¢ Set of patch cords.

¢ Housed in an elegant metal cabinet with a well spread intelligently designed circuit layout on the front panel.

¢ Strongly supported by a comprehensive instruction manual complete with theory and operation details.
