The Pressure Transducer Trainer - Servo Type is an advanced and versatile standalone educational unit designed specifically for the precise measurement of pressure using a servo potentiometer as the transducer. This trainer is ideal for engineering and technical training institutions aiming to provide hands-on experience and in-depth understanding of servo-type pressure measurement. The unit integrates a robust metal bellow linked to an angular variable servo potentiometer, enabling highly accurate pressure detection within a range of 0 to 5 Kg/cm2. Its sophisticated design includes a highly sensitive solid-state precision amplifier that amplifies the transducer signal for clear, noise-free measurement. Users benefit from a direct 3.5-digit digital display that offers instantaneous and reliable pressure readings. The system includes a calibrated pressure pump to simulate pressure variations and practical experimentation. Engineered for ease of use and durability, the entire assembly is enclosed in a powder-coated metal cabinet with an ergonomic acrylic front panel layout. This layout features multicoloured test points for waveforms and voltage observation, facilitating detailed study of the transducer's operation and circuitry. Additional user-friendly features such as a multi-turn potentiometer for zero adjustment and mains ON/OFF indicator enhance the training experience. Powered by a regulated 12V DC source with a 230V AC mains requirement, this trainer is tailored to offer a comprehensive, practical learning tool for professionals and institutions focused on pressure measurement technologies using servo transducer mechanisms.
Key Features
| Features | Description |
|---|---|
| Measurement Type | Pressure measurement using servo potentiometer |
| Transducer | Angular variable servo with link and gear mechanism coupled to a metal bellow |
| Pressure Range | 0 to 5 Kg/cm2 |
| Sensor Type | Variable resistance |
| Amplifier | Highly sensitive solid-state precision amplifier |
| Display | 3.5 digit digital meter for direct pressure reading |
| Pressure Source | Integrated pressure pump for simulation |
| Zero Adjustment | Multiturn potentiometer |
| Test Points | Multicoloured test points for waveform and voltage observation |
| Enclosure | Powder-coated metal cabinet with acrylic front panel |
| Power Requirements | 230V ±10% AC, 50Hz, single phase with regulated 12V DC excitation |
| Attributes | Description |
|---|---|
| Parameter Measured | Pressure (Kg/cm2) |
| Measurement System | Servo type transducer with electronic instrumentation |
| Transducer Range | 0 - 5 Kg/cm2 |
| Excitation Source | 12V DC (regulated) |
| Termination Size | 1/2" B.S.P. at metal bellow |
| Readout | 3.5 digit digital display |
| Controls | Multiturn potentiometer for zero adjustment |
| Test Points | Available with multicoloured markers |
| Indicator | Mains ON/OFF |
| Connector | Facility for connecting transducer |
| Power Supply | 230V AC ±10%, 50Hz, single phase |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The angular variable servo potentiometer linked with a gear mechanism enables precise mechanical displacement proportional to pressure changes in the metal bellow, thereby providing highly accurate electrical resistance changes for precise pressure measurement.
Multicoloured test points allow learners to easily identify and measure specific voltage points and observe waveform patterns during experimentation, facilitating better understanding and troubleshooting of the pressure measurement circuitry.
Yes, the integrated pressure pump allows controlled simulation of pressure changes within the 0 to 5 Kg/cm2 range, enabling users to observe real-time transducer and amplifier response.
The solid-state precision amplifier provides high sensitivity and stability, ensuring amplified transducer signals are accurate with minimal noise, which enhances the reliability of pressure readings.
Yes, the multi-turn potentiometer control is provided for precise zero adjustment to calibrate the base pressure reading before measurement.
Brand: adtron
Country Of Origin: India
SALIENT FEATURES :

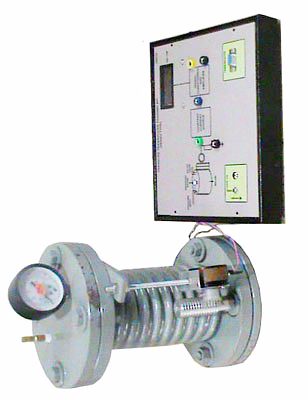

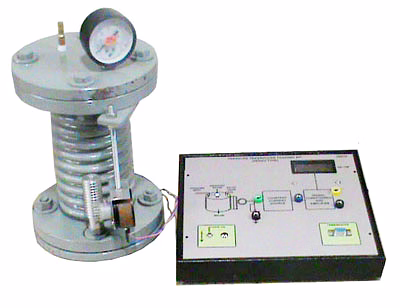

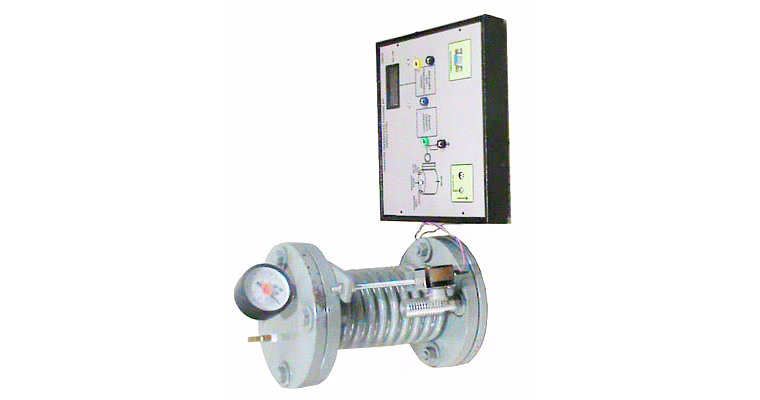

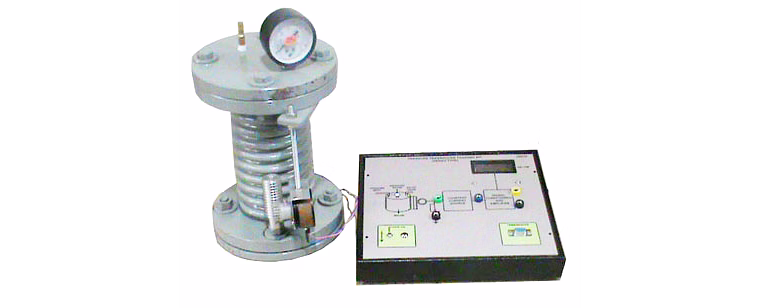

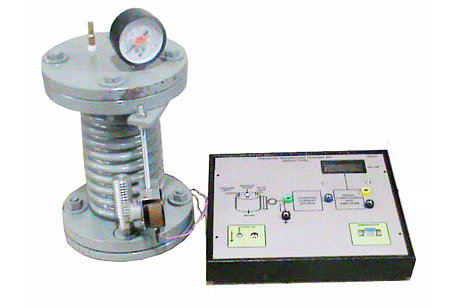

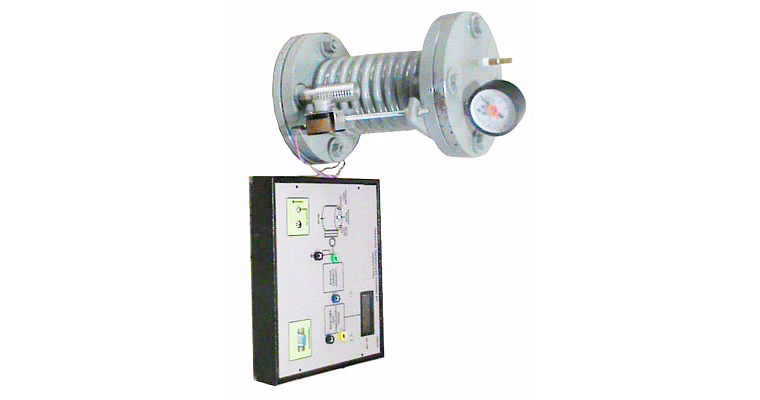

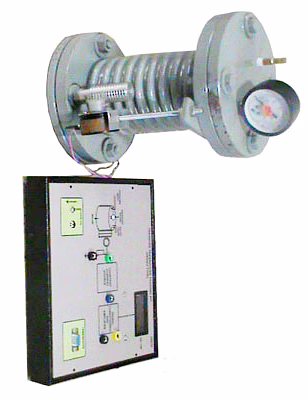

Measurement of Pressure using Servo Type as transducer is a versatile self contained stand alone unit useful in the study and demonstration of the principle and working of a servo pot to measure pressure. The trainer consists of a metal bellow coupled with angular variable servo pot, highly sensitive solid state amplifier, digital meter for direct reading of pressure and Pressure pump. The trainer is enclosed in an elegant powder coated metal cabinet with intelligently designed layout on acrylic front panel.
TECHNICAL SPECIFICATIONS
Parameter Measured : Pressure (Kg/ cm2)
Measurement System : Transducer with electronic instrumentation.
Transducer Used : Angular servo with link and gear mechanism coupled to a bellow.
Transducer Range : 0 to 5 Kg/cm2.
Sensor : Variable resistance.
Excitation Source : 12V DC (Regulated).
Termination on metal bellow : 1/2" B.S.P.
Amplifier : Solid state precision amplifier.
Readout : 3.5 digit digital display.
Controls : Multiturn potentiometer for zero adjustment.
Test Points : Multicoloured test points are provided at various stages in the circuit
to observe the waveforms and voltages.
Indicator : Mains ON/OFF.
Connector : Facility for connecting transducer.
Power Requirements : 230V, 10% AC 50Hz, 1 phase.
