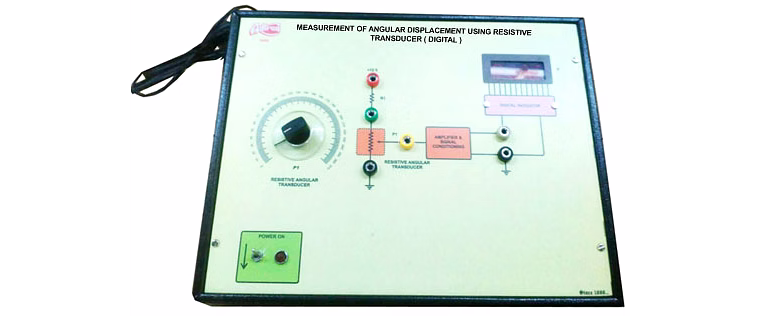

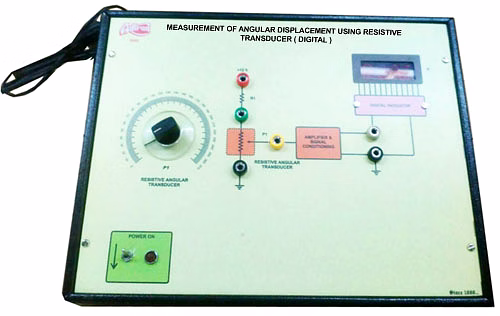

The Measurement of Angular Displacement Using Resistive Transducer Trainer (Digital) is an advanced educational and training kit designed to illustrate the principle and working of a resistive potentiometric transducer specifically for measuring angular displacement. It effectively converts physical angular movement (ranging from 0° to 270°) into electrical signals for precise digital measurement. The kit integrates a DC excitation source (+5V DC regulated supply with ±10% tolerance), a precision amplifier, and a 3.5-digit digital readout that displays voltage signals up to 2000 mV DC, corresponding to the angular displacement in millivolts. Featuring a potentiometric resistive transducer with a calibrated dial, it enables accurate displacement measurement by rotating the shaft of the transducer, making it ideal for industrial training institutes, automation industries, and research laboratories focused on sensor technologies and instrumentation. This digital trainer facilitates hands-on learning of angular displacement measurement and potentiometer characteristics with clear, readable digital output for improved data accuracy and ease of use.
