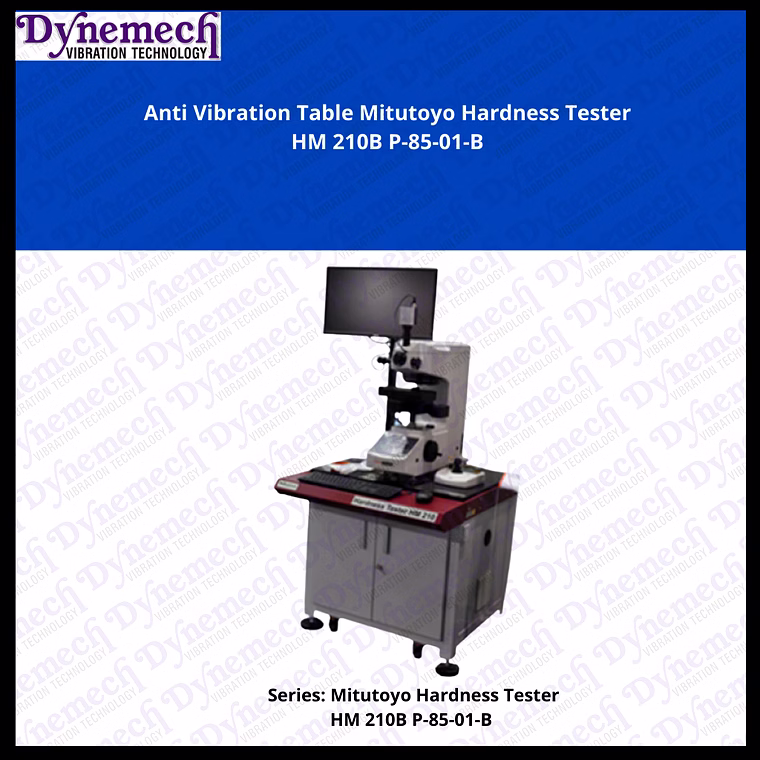

The Precision Measuring Metrology Instrument Vibration Control Table, model P-85-01-B, is an essential solution for laboratories requiring high accuracy in testing environments subject to external vibrations. Constructed with a robust granite base measuring L 750 X B 600 X T 30 mm, this anti-vibration table features a 60 mm tubular structure with a cross member that ensures enhanced stability. Designed for use with hardness testers and analytical balances, the table incorporates a left angular profile and a swiveling bracket that supports monitors for efficient operation. This table's innovative wrap-around construction guarantees resistance against vibrational disturbances generated by industrial machines such as presses and VMCs. Each unit incorporates advanced vibration damping systems, allowing for optimal performance tailored to specific laboratory requirements. Furthermore, the table is equipped with a front keyboard panel designed to accommodate keyboards and mice, facilitating a user-friendly experience. The combination of Grade-1 granite and adjustable leveling feet ensures that this table not only provides excellent protection against vibration but also maintains immovable precision, making it indispensable for quality assurance in testing laboratories.
Key Features
| Features | Description |
|---|---|
| Granite Base Dimensions | L 750 X B 600 X T 30 mm |
| Tubular Structure | 60 mm Tubular Structure with cross member |
| Vibration Damping | Damping at two locations: beneath the granite table top and at the bottom |
| Compatibility | Ideal for use with analytical and laboratory balances or control scales |
| Custom Damping Options | Available Elastomeric, Pneumatic or Spring Based Damping. |
| User-Friendly Interface | Front keyboard panel for keyboard and mouse accessibility |
| Swiveling Bracket | Allows easy positioning of monitors for enhanced usability |
| High Accuracy | Grade-1 accuracy granite surface plate for critical measuring |
| Attributes | Description |
|---|---|
| Granite Thickness | 30 mm |
| Cross Member Type | Wrap Around Construction |
| Structure Integrity | Left angular profile for optimized stability |
| Model Number | P-85-01-B |
| Damping Methods | Customizable options: Elastomeric, Pneumatic, or Spring Based |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The P-85-01-B table offers customizable damping options including Elastomeric, Pneumatic, or Spring Based systems, tailored to the specific vibrations present in your testing laboratory.
Yes, the P-85-01-B table is designed with a swiveling bracket for a monitor and features a front keyboard panel that allows for easy access to your keyboard and mouse, enhancing usability.
The granite base provides Grade-1 accuracy, which is crucial for critical measuring applications, ensuring that test results are reliable and unaffected by external vibrations.
The P-85-01-B table features a 60 mm tubular structure with a cross member and a left angular profile that enhances structural integrity and stability, making it suitable for high-precision testing.
Absolutely. This vibration control table is specifically designed to operate efficiently in testing laboratories co-located with industrial units that experience high levels of vibration from machinery.
Brand: dynemech
Country Of Origin: India
Granite base of size L 750 X B 600 X T 30 mm
60 mm Tubular Structure with cross member
Wrap Around Construction with left angular profile
Swiveling bracket for monitor
Front keyboard panel for keyboard and mouse
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Freight Will Be Extra
Granite base of size L 750 X B 600 X T 30 mm
60 mm Tubular Structure with cross member
Wrap Around Construction with left angular profile
Swiveling bracket for monitor
Front keyboard panel for keyboard and mouse
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.
