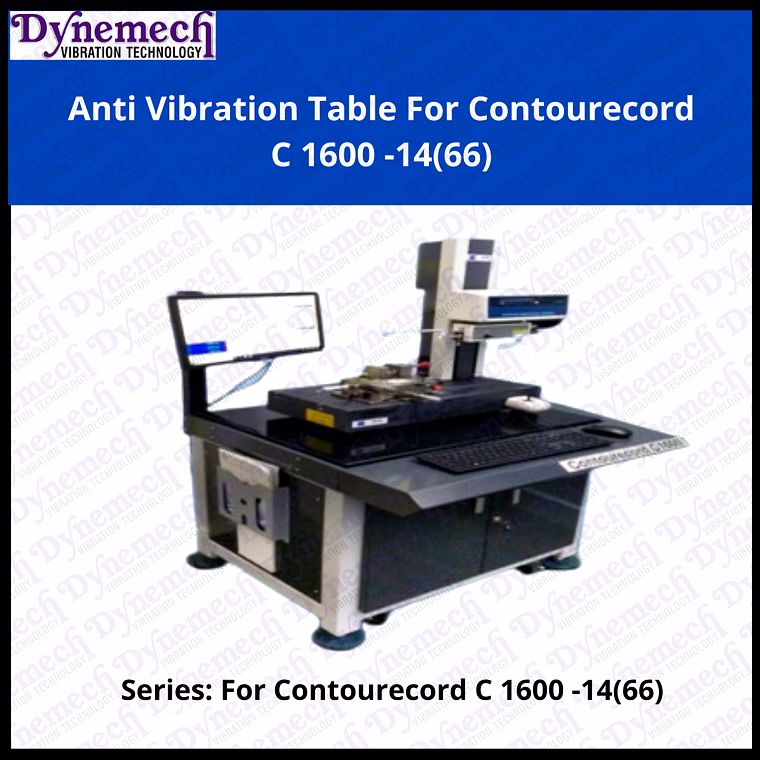

The Dynemech Anti Vibration Table for Contourecord C1600 -14, P-66 is a specialized solution for testing and quality laboratories situated near industrial units where heavy machinery operates, causing significant vibrations. Constructed with a high-precision granite base measuring 1100 mm in length, 550 mm in width, and 50 mm in thickness, this table is engineered to minimize vibrations that can disrupt measurements and laboratory operations. It features a robust HR tubular structure designed for stability, along with multiple damping mechanisms to enhance performance. The vibration damping is strategically located both below the granite tabletop and at the foundation level utilizing leveling feet for ideal adjustment. This ensures not only stabilization but also optimal functionality in critical measuring tasks. Additional elements include a keyboard panel for convenience while working, a monitor bracket for ergonomic adjustments, and multiple options for vibration damping — including elastomeric, pneumatic, or spring-based systems — tailored to the specific vibration levels present in your laboratory. The table's design also encompasses modern aesthetics with a RAL 9002 structure and a Graphite Grey finish for side sheets and panels, thus making it an ideal choice for professionals seeking reliability and precision in their testing environments.
Key Features
| Features | Description |
|---|---|
| Granite Base Dimensions | Length: 1100 mm, Width: 550 mm, Thickness: 50 mm |
| Structure | 60x60 mm HR tubular structure with RAL 9002 coating |
| Damping Mechanisms | Elastomeric, Pneumatic, or Spring Based Damping options available |
| Vibration Pads | 9 nos AV pads between structure and granite base |
| Mobility | 4 nos - 3” wheels for easy repositioning |
| Keyboard and Monitor Setup | Front keyboard panel and left-hand rear monitor bracket included |
| DLP3 at Ground Level | 4 nos DLP3 to establish a solid foundation |
| Attributes | Description |
|---|---|
| Max Load Capacity | Determined by specific testing applications with appropriate damping |
| Surface Accuracy | Grade-1 accuracy for precise measurements |
| Finish | RAL 9002 for the structure, Graphite Grey for side sheets and panels |
| Wheels | 4 nos wheels for enhanced mobility |
| Overall Dimensions | Adjustable according to laboratory requirements with leveling feet |
| Accessory Compatibility | Compatible with laboratory balances and control scales |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The table supports elastomeric, pneumatic, and spring-based damping mechanisms to cater to different vibration levels.
Yes, it is equipped with four 3-inch wheels for enhanced mobility without compromising stability.
Absolutely! It is specifically designed for cooperation with analytical balances and control scales.
The granite surface plate has a Grade-1 accuracy which is essential for critical measuring applications.
The granite base measures 1100 mm in length, 550 mm in width, and 50 mm in thickness.
Brand: dynemech
Country Of Origin: India
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Granite base of size: L-1100 B-550 T-50 mm
60x60 mm HR tubular structure
4 nos DLP3 at ground level, 4 nos - 3” wheel
9 nos AV pad between structure and granite base
Front keyboard panel provided for placing
keyboard & mouse over the surface Monitor Bracket on L.H Rear with swivelling and tilting fecility Structure- RAL 9002, Side sheet, door & Key board panel- Graphite Grey
Note- Freight Charges will be excluded.
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.
Granite base of size: L-1100 B-550 T-50 mm
60x60 mm HR tubular structure
4 nos DLP3 at ground level, 4 nos - 3” wheel
9 nos AV pad between structure and granite base
Front keyboard panel provided for placing
keyboard & mouse over the surface Monitor Bracket on L.H Rear with swivelling and tilting fecility Structure- RAL 9002, Side sheet, door & Key board panel- Graphite Grey
Note- Freight Charges will be excluded.
