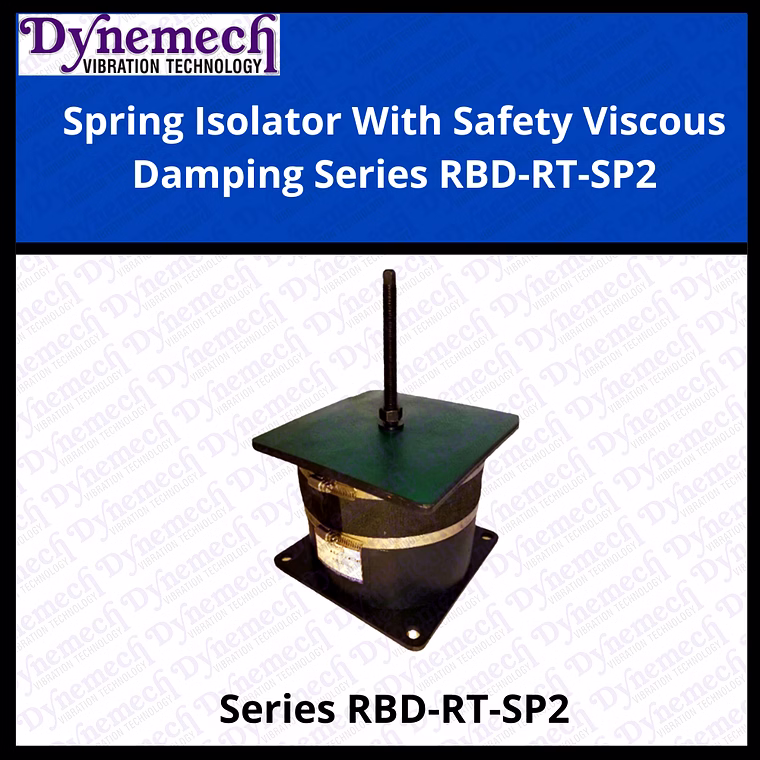

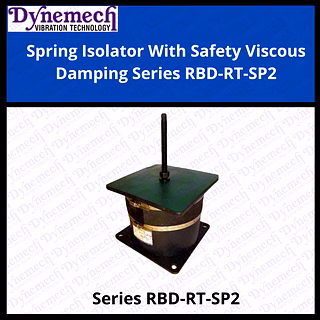

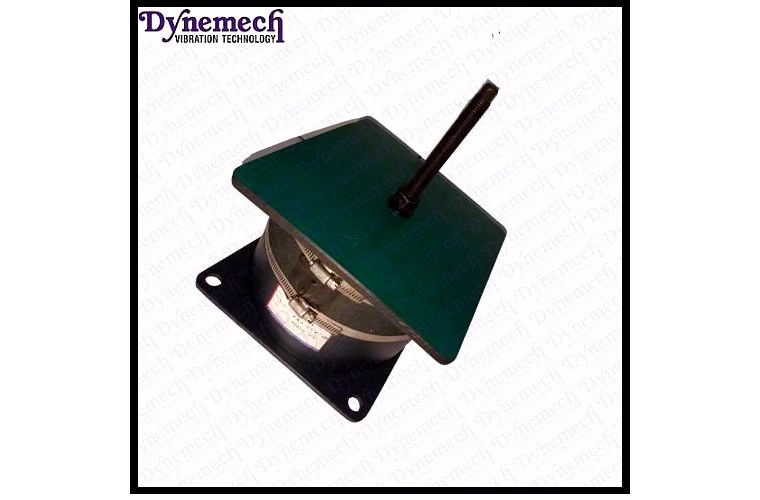

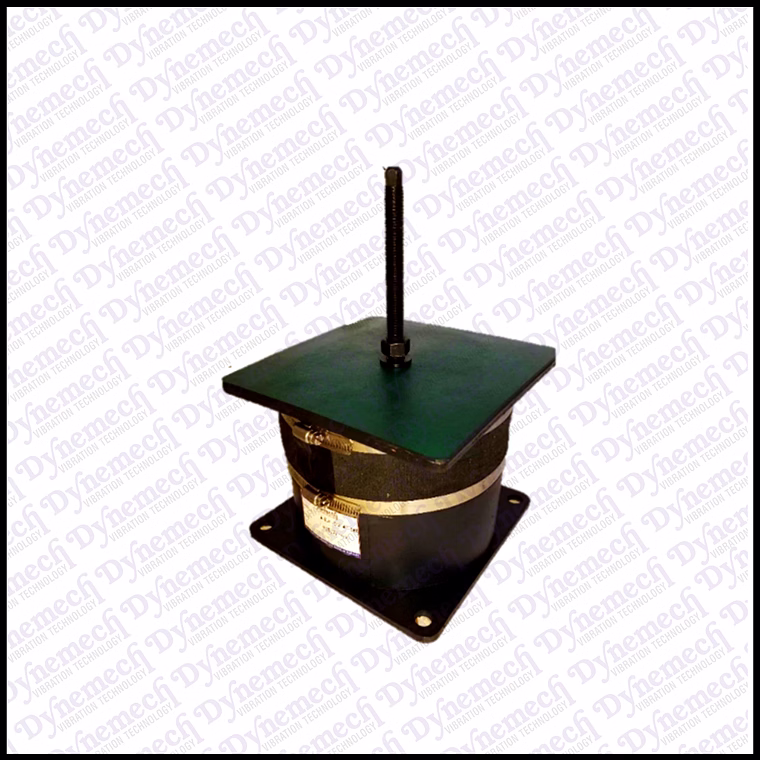

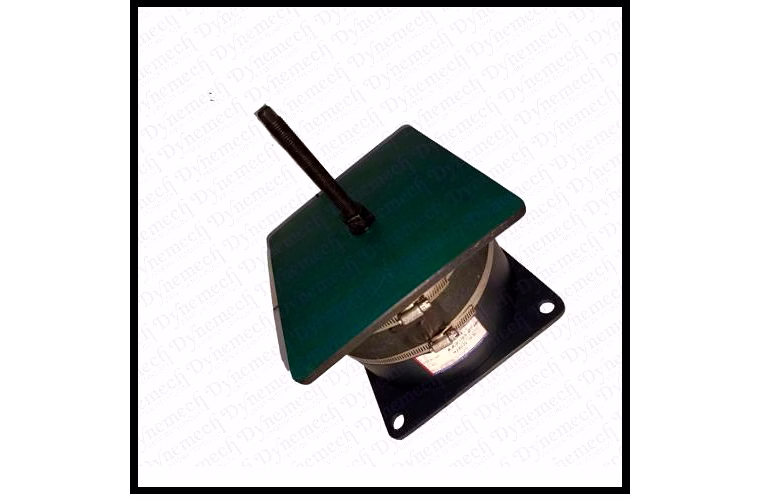

The Compact Spring-Viscous Vibration Damping Elements Series RBD-RT-SP2 by Dynemech is a high-quality anti-vibration solution designed specifically for the Indian industry. With over a decade of experience, Dynemech offers a comprehensive range of vibration control products tailored for various mechanical needs. This model is engineered to provide effective vibration isolation for heavy machinery including presses and generators. It features a natural frequency range of 3.5 to 11 Hz, making it ideal for applications that require precision and stability. The RBD-RT-SP2 employs viscous damping technology, which is essential for managing excessive machine movements during operation. This damping ability is crucial for manufacturers to prevent resonant frequency overlaps and ensure the longevity of machinery while maintaining operational efficiency. The product's robust design, with a load-bearing capacity of 62 kg and a free height of 161.5 mm, makes it suitable for a variety of industrial applications. Equipped with an M16 bolt for easy installation, the RBD-RT-SP2 provides comprehensive support through its superior engineering.
Key Features
| Features | Description |
|---|---|
| Model | RBD-E2-RT-SP2 |
| Load Capacity | 62 Kg |
| Free Height | 161.5 mm |
| Bolt Size | M16x1.75x100 |
| Top Plate Dimensions | 235mm x 235mm |
| Bottom Plate Dimensions | 235mm x 235mm |
| Center to Center Distance | 205 mm |
| Natural Frequency Range | 3.5 - 11 Hz |
| Damping Technology | Viscous Damping |
| Attributes | Description |
|---|---|
| Plate Material | Steel |
| Operating Temperature Range | -20°C to +70°C |
| Weight | 5.5 kg |
| Installation Type | Stud Mount |
| Application | Heavy Industrial Machinery |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The RBD-RT-SP2 is ideal for heavy industrial machinery applications such as presses, hammers, and generators, where effective vibration isolation is critical.
Viscous damping helps to control excessive movements during operation, particularly near resonant frequencies, improving stability and preventing damage to equipment.
With a load capacity of 62 Kg, the RBD-RT-SP2 is designed to support a range of heavy machinery configurations, ensuring reliable performance in demanding environments.
The RBD-RT-SP2 requires an M16 bolt installation, making it straightforward to integrate into existing setups for efficient management of vibrations.
Brand: dynemech
Country Of Origin: India
Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine. Viscous Damping is an important feature of an isolation system.
Model:RBD-E2-RT-SP2
Load(Kg):62 Free
Height HI (mm):161.5
Bolt Size: M16x1.75x100
Top Plate AXB(mm):235X235
Bottom Plate CXD(mm):235X235 CC(mm):205
Natural Frequency Range(Hz):3.5-11
Freight Will Be Extra
Dynemech Spring Isolator
Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine. Viscous Damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system. Generally this problem arises during slow run up and run down of rotating machines and during impact at each stroke in presses and hammers.
Model:RBD-E2-RT-SP2
Load(Kg):62
Free Height HI (mm):161.5
Bolt Size: M16x1.75x100
Top Plate AXB(mm):235X235
Bottom Plate CXD(mm):235X235 CC(mm):205
Natural Frequency Range(Hz):3.5-11
Freight Will Be Extra
