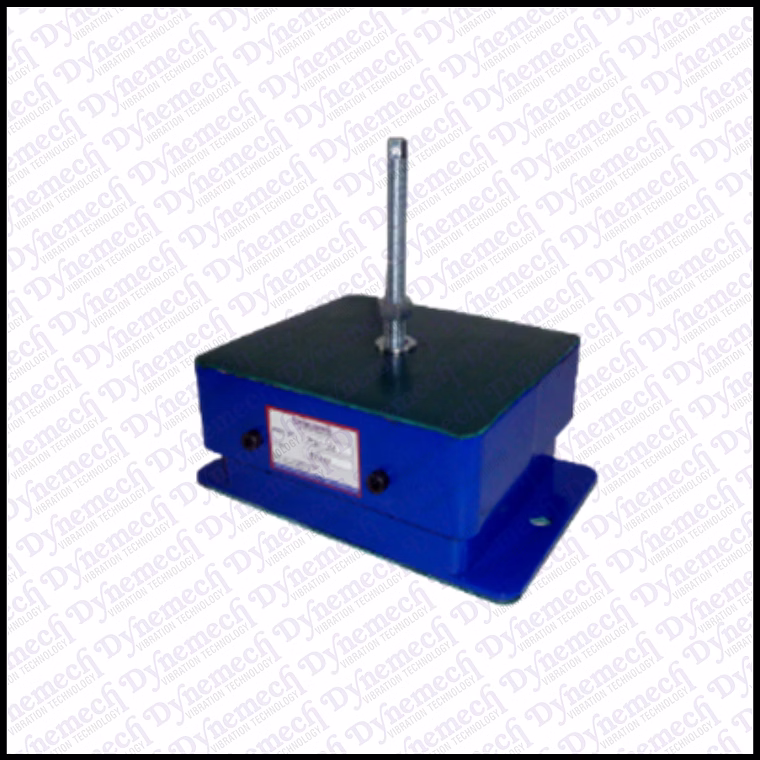

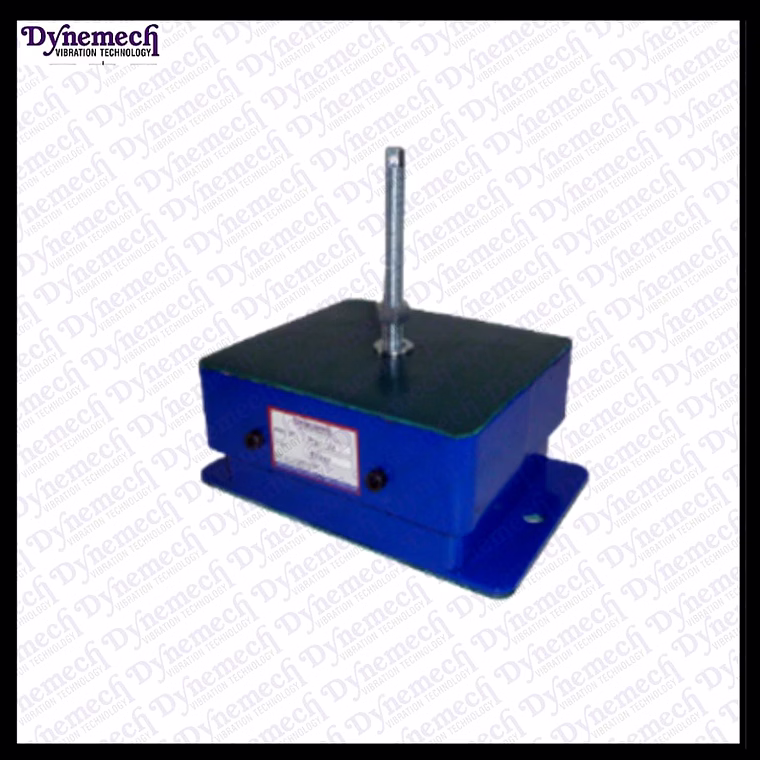

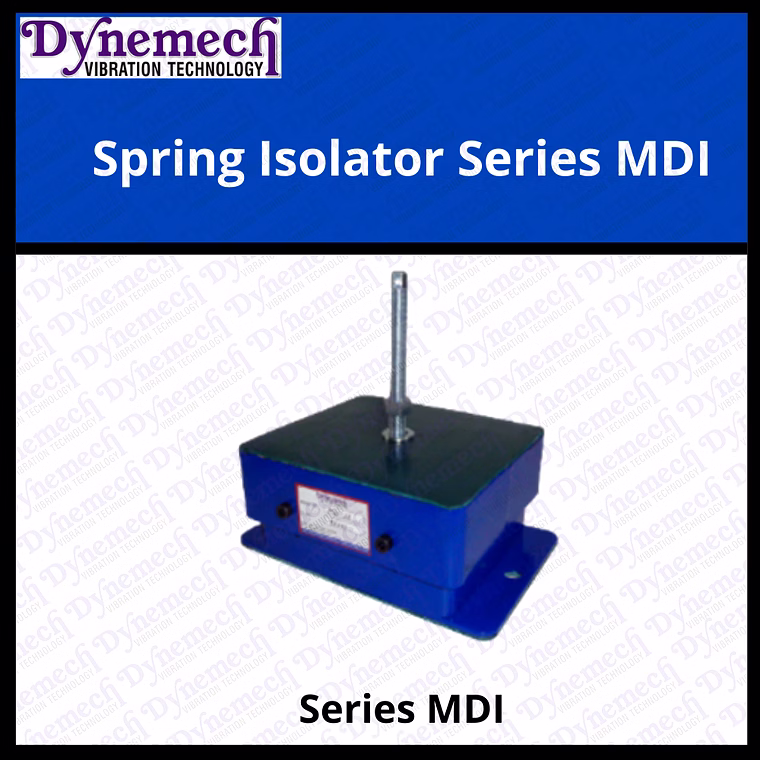

The Combination Spring and Vibration Damper Isolators Series MDI from Dynemech are expertly designed to provide effective anti-vibration solutions for a diverse range of industrial applications. Our isolators have been developed over ten years, making them a trusted choice for businesses seeking optimal vibration control. The unique combination of spring technology and viscous damping allows for increased stability, minimizing excessive movement in machinery and enhancing operational efficiency. Ideal for heavy machinery, presses, and generators, the MDI series offers substantial support with a load-bearing capacity of up to 128 Kg while maintaining a natural frequency range of 3.5 to 11 Hz. The robust construction featuring M16 bolts ensures durability, further complemented by its optimal geometric dimensions for easy installation and integration into existing systems. Experience quiet operation and reduced wear and tear on machinery with our advanced isolation technology, making it a crucial investment for industries aiming to improve overall productivity and extend the lifespan of their equipment.
Key Features
| Features | Description |
|---|---|
| Model | MDI-E2 |
| Load Capacity | 128 Kg |
| Overall Height (HO) | 80 mm |
| Installer Height (HI) | 105 mm |
| Bolt Size | M16x2.0x150 |
| Top Plate Dimensions (AXB) | 221x196 mm |
| Bottom Plate Dimensions (CXD) | 271x176 mm |
| Center to Center Dimensions (CC) | 241 mm |
| Natural Frequency Range | 3.5-11 Hz |
| Viscous Damping | Yes |
| Attributes | Description |
|---|---|
| Material | High-grade rubber and metal components |
| Color | Black |
| Weight | Varies with configuration |
| Application Area | Heavy machinery, precision tools, generators |
| Mounting Method | Direct mount using bolts |
| Operating Temperature Range | -10°C to +60°C |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The MDI series isolators are suitable for various industries including manufacturing, construction, and automotive, where heavy machinery and precision tools require effective vibration control.
Viscous damping in the MDI isolators effectively reduces oscillations and excessive movement by utilizing a fluid medium enclosed within the isolators, thus ensuring stable operations even during critical machine speed ranges.
Yes, while the MDI-E2 model has a standard load capacity of 128 kg, Dynemech offers customization options tailored to specific industrial requirements.
The natural frequency range of 3.5-11 Hz in the MDI isolators is crucial as it determines the isolator's effectiveness in damping vibrations at specific machine operating speeds, thereby enhancing equipment longevity and performance.
The MDI isolators are designed for straightforward installation, utilizing standard M16 bolts for direct mount applications, making them compatible with most heavy machinery setups.
Brand: dynemech
Country Of Origin: India
Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. Viscous Damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system.
Freight Will Be Extra
Dynemech Spring Isolator
Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine. Viscous Damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system. Generally this problem arises during slow run up and run down of rotating machines and during impact at each stroke in presses and hammers.
Model:MDI-E2
Load(Kg):128 HO(mm):80 HI(mm):105
Bolt Size: M16x2.0x150
Top Plate AXB(mm):221x196
Bottom Plate CXD(mm):271x176 CC(mm):241
Natural Frequency Range(Hz):3.5-11
