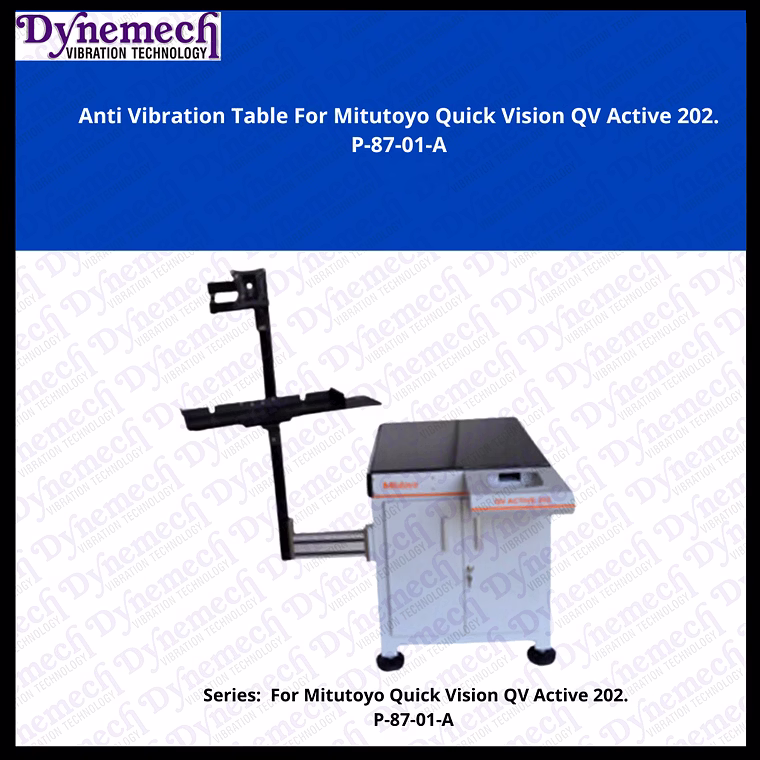

Introducing the Shock Resistant Table - Anti Vibration Table for Quick Vision Active 202, P-87-01-A, designed to ensure precision in testing and quality control within vibration-prone industrial environments. This state-of-the-art anti-vibration table features a robust granite base measuring L 600 x B 760 x T 767 mm, equipped with a 60 mm tubular structure utilizing wrap-around construction for enhanced durability and stability. The laser cut front joystick panel includes a top rim and Z-plates, allowing secure locking of the joystick mechanism. The table is fully enclosed on three sides, providing a clean workspace that can accommodate controllers, CPUs, and UPS systems, strategically positioned under a protective exhaust fan for efficient cooling. Additionally, a double door at the front, complete with handles and locks, ensures quick access while maintaining security. With a rear-mounted power strip for easy connectivity, leveling ball, and a 24/27 spanner, this powder-coated structure exhibits a sleek appearance with a RAL 9002 finish. Ideal for laboratory settings that face high vibration levels from industrial machines like presses and hammers, Dynemech’s Anti-Vibration Tables integrate seamlessly with analytical balances for optimal performance. Designed with Grade-1 accuracy granite surfaces, our tables provide critical measuring accuracy and vibration damping at two locations—beneath the granite top and at the foot level with adjustable feet. Choose between Elastomeric, Pneumatic, or Spring Based Damping systems tailored to minimize environmental vibrations and achieve reliable results in testing applications.
Key Features
| Features | Description |
|---|---|
| Granite Base Dimensions | L 600 x B 760 x T 767 mm |
| Tubular Structure | 60 mm with wrap-around construction |
| Joystick Panel Design | Laser cut with top rim and Z-plates for locking |
| Enclosed Design | Closed on three sides with exhaust fan |
| Access Features | Front double door with handles and locks |
| Power Connectivity | Rear power strip for easy electrical access |
| Vibration Damping | Damping at two locations with adjustable feet |
| Surface Accuracy | Grade-1 accuracy granite surface |
| Damping Options | Choose between Elastomeric, Pneumatic, or Spring based systems |
| Attributes | Description |
|---|---|
| Overall Dimensions | L 600 x B 760 x T 767 mm |
| Table Top Material | Granite |
| Structure Type | 60 mm Tubular Structure |
| Color | RAL 9002 Powder Coat |
| Lock Mechanism | Front joystick panel with locking Z-plates |
| Cooling Mechanism | Exhaust fan for CPU and UPS |
| Access | Double door access with secure locking |
| Weight Stablization | Leveling Ball and 24/27 Spanner included |
| Environmental Compliance | Designed for areas with high vibration from industrial activities |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Anti Vibration Table P-87-01-A is primarily designed for testing and quality control in environments with high vibrations from industrial machines, ensuring operational stability for analytical balances and laboratory scales.
Yes, the Anti Vibration Table P-87-01-A allows you to choose between Elastomeric, Pneumatic, or Spring Based Damping systems based on the specific type of vibrations present in your testing laboratory.
The granite surface of the Anti Vibration Table is crafted for Grade-1 accuracy, ensuring high precision measurements reliable for critical testing scenarios.
With an enclosed design that features a dedicated space for controllers, CPUs, and UPS systems, the Anti Vibration Table maximizes space efficiency while ensuring security and cooling through an exhaust fan.
The leveling feet allow users to achieve proper table leveling, which is critical for accurate measurements, while also providing additional vibration isolation from the floor.
Brand: dynemech
Country Of Origin: India
Granite base of size L 600 X B 760 X T 767 mm
60 mm Tubular Structure with wrap around construction.
Front joystick panel laser cut with top rim and Z-plates at bottom to lock joystick.
All three sides closed, bottom sheet to place controller, CPU and UPS; with exhaust fan.
Front double door with handles and lock. Power strip in rear; Leveling Ball, Spanner 24/27
Powder Coat, structure and joystick panel RAL 9002
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Freight Will Be Extra
Granite base of size L 600 X B 760 X T 767 mm
60 mm Tubular Structure with wrap around construction.
Front joystick panel laser cut with top rim and Z-plates at bottom to lock joystick.
All three sides closed, bottom sheet to place controller, CPU and UPS; with exhaust fan.
Front double door with handles and lock. Power strip in rear; Leveling Ball, Spanner 24/27
Powder Coat, structure and joystick panel RAL 9002
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.
