Dynemech Systems Private Limited

Dynemech Level Grip Mounts Series DRM1-150-S2 Mounts levelling is done using a large lever screw. This screw transmits static and dynamic load of the machine on a larger area and thus provides greater stability to the machine. The levelling leaver requires lesser torque for lifting the machine while levelling.

Length:150(mm) To 232(mm) Width:150(mm) To 232(mm) Height:77(mm) To 77(mm) Bolt Size:M16x2.0x100mm To M20x2.5x100mm

Levelling Adjustment: 20(mm) To 20 (mm)

Load Capacity: 1000 Kg/pc To 3300 Kg/pc

Natural Frequency (Hz):-8Hz To 8Hz

Coeff. of Friction: 0.8 To 0.8

Working Temp Range :16 to 90

Weight ( Kg.): 5 Kgs To 10 Kgs

Amount-3,068

Freight Will Be Extra

https://vibrationmountsindia.com/

Dynemech Level Grip Mounts Series DRM2-232-S2 Mounts levelling is done using a large lever screw. This screw transmits static and dynamic load of the machine on a larger area and thus provides greater stability to the machine. The levelling leaver requires lesser torque for lifting the machine while levelling.

Length:150(mm) To 232(mm)

Width:150(mm) To 232(mm)

Height:77(mm) To 77(mm)

Bolt Size:M16x2.0x100mm To M20x2.5x100mm

Levelling Adjustment: 20(mm) To 20 (mm)

Load Capacity: 1000 Kg/pc To 3300 Kg/pc

Natural Frequency (Hz):-8Hz To 8Hz

Coeff. of Friction: 0.8 To 0.8

Freight Will Be Extra

https://vibrationmountsindia.com/

Dynemech Mac Level Series DML is suitable for high speed rotating machines having small or no axial forces.

Dia:50(mm) To 200 (mm) Height:40(mm) To 63(mm) Load Capacity: 175 to 4000 (Kg/pc)

d: 32(mm) To 120(mm)

Bolt Size: M10X1.5X100mm Long To M20X2.5X150mm Long

Levelling Adjustment: 10(mm) To 20(mm) Natural Frequency (Hz):7Hz To 8Hz

Working Temp Range °C: -16 to 90

Weight ( Kg.): 500Gm To 6Kgs

Material: Rubber+Cast Iron

Freight Will Be Extra

https://vibrationmountsindia.com/

Dynemech Mac Level Series DML is suitable for high speed rotating machines having small or no axial forces.

Dia:160(mm) Height:58(mm)

Load Capacity: 2000 (Kg/pc)

d: 32(mm) To 120(mm)

Bolt Size: M10X1.5X100mm

Long To M20X2.5X150mm Long

Levelling Adjustment: 10(mm) To 20(mm)

Natural Frequency (Hz):7Hz To 8Hz

Working Temp Range °C: -16 to 90

Freight Will Be Extra

https://vibrationmountsindia.com/

DYNEMECH Compac Machinery Mounts Series DH1 uses rubber in compression and shear. They provide tight tolerances on stiffness rate for accurate vibration calculations. Load range is from 40 to 130kgs per piece. The strong base metal withstands high shock loads without deformation. Fitted as standard with a shock-proof device (up to 4.5kg) with resilient stop, It is ideal for mobile or martine use. Domed shape cover to protect against oil contamination. Light weight and compact.

Dia:64(mm) To 64 (mm) A:76(mm) To 76(mm)

Height:35(mm) To 35(mm)

K: 93(mm) To 93(mm)

d:9.5(mm) To 9.5(mm)

G:M12/M10 To M12/M10

Weight(Kg.):0.22 To 0.22

Load Capacity(Kg.):130 Kg/pc To 70 Kg/pc

Working Temp Range: -16 to 90

Material : Sheet metal ,Rubber

Freight Will Be Extra

https://vibrationmountsindia.com/

DYNEMECH Compac Machinery Mounts Series DH3 uses rubber in compression and shear. They provide tight tolerances on stiffness rate for accurate vibration calculations. Load range is from 40 to 130 Kgs per piece. The strong base metal withstands high shock loads without deformation. Fitted as standard with a shock-proof device (up to 4.5kg) with resilient stop, It is ideal for mobile or martine use. Domed shape cover to protect against oil contamination. Light weight and compact.

Dia:64(mm) To 64 (mm) A:76(mm) To 76(mm) Height:35(mm) To 35(mm)

K: 93(mm) To 93(mm)

d:9.5(mm) To 9.5(mm)

G:M12/M10 To M12/M10 Weight(Kg.):0.22 To 0.22

Load Capacity(Kg.):130 Kg/pc To 70 Kg/pc

Working Temp Range: -16 to 90

Amount-660.8 INR

https://vibrationmountsindia.com/

Dynemech Machine base mounts series SL1-u is Machine Base mounts used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. These are suitable for placing in the pocket of the machine base.

Length – 80(mm) To 200(mm)

Width – 64(mm) To 200(mm)

Height- 30(mm) To 39(mm)

Load Capacity (Kg/pc.) 350 Kgs/pc To 1600 Kgs/pc

Natural Frequency (Hz):18 Hz To 7 Hz

Coeff. of Friction: 0.9 To 0.8

Working Temp Range °C: -16 to 90

Weight ( Kg.):0.5 Kg To 2.5 Kgs

Freight Will Be Extra.

https://vibrationmountsindia.com/

Dynemech Machine base mounts series SL5-P1 is Machine Base mounts used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. These are suitable for placing in the pocket of the machine base.

Length – 80(mm) To 200(mm)

Width – 64(mm) To 200(mm)

Height- 30(mm) To 39(mm)

Load Capacity (Kg/pc.) 350 Kgs/pc To 1600 Kgs/pc

Natural Frequency (Hz):18 Hz To 7 Hz

Coeff. of Friction: 0.9 To 0.8

Working Temp Range °C: -16 to 90

Weight ( Kg.):0.5 Kg To 2.5 Kgs

Freight Will Be Extra

https://vibrationmountsindia.com/

Dynemech Jackup mounts DJM-0 provides isolation solutions for various machines and mounting conditions. The Dynemech Jackup mounts also provides for high machine leveling capabilities. These Jackup mounts provide high load capacity and best level stability. The bottom design provides for non-skid properties for the Jackup mount. The Jackup mount also provide very good passive vibration isolation.

Dia D(mm):- 90mm To 160mm

Height H(mm):-49mm To 49mm

G(mm): M20x2.5 Thread Length:38mm To M20x2.5mm

Thread Length:38mm HEX SW(mm): 46(mm) To 62(mm)

Load Capacity:850Kg/pc To 2500Kg/pc

Levelling Adjustment(mm):18 mm To 18 mm

Natural Frequency Range Hz: 18(Hz) To 18(Hz)

Coeff. of Friction: 0.9 To 0.9

Weight ( Kg.):1.5 Kgs To 5 Kgs

Working Temp Range: -16 to 90

Freight Will Be Extra

https://vibrationmountsindia.com/

Dynemech Jackup mounts DJM-2 provides isolation solutions for various machines and mounting conditions. The Dynemech Jackup mounts also provides for high machine leveling capabilities. These Jackup mounts provide high load capacity and best level stability. The bottom design provides for non-skid properties for the Jackup mount. The Jackup mount also provide very good passive vibration isolation.

Dia D(mm):- 90mm To 160mm

Height H(mm):-49mm To 49mm

G(mm): M20x2.5 Thread Length:38mm To M20x2.5mm

Thread Length:38mm HEX SW(mm): 46(mm) To 62(mm)

Load Capacity:850Kg/pc To 2500Kg/pc Levelling Adjustment(mm):18 mm To 18 mm

Natural Frequency Range Hz: 18(Hz) To 18(Hz)

Coeff. of Friction: 0.9 To 0.9

Weight ( Kg.):1.5 Kgs To 5 Kgs

Working Temp Range: -16 to 90

Amount-2678.6 INR

Freight Will Be Extra

https://vibrationmountsindia.com/

Dynemech DL Series AV mounts used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. Dynemech DLS Series AV Mounts, developed in stainless steel finds application in pharmaceutical food and beverages processing and packaing units, medical equipment manufacturing and chemical processing industries.Provide vibration isolation with complete hygienic seal and corrsion resistance.

Application: Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

Note- Freight Charges will be excluded.

https://vibrationmountsindia.com/

Dynemech DLT Series Antivibration mountings are used in the machines which must be anchored to the floor along with levelling and vibration reduction. Bolts with thru holes are provided in the machine foot and anchor bolt passes from the machine foot, mount and anchored in the floor nut. An insulating disc is provided between the nut and the machine foot to prevent vibration from transmitting in the floor via the bolt.

Note- Freight Charges will be excluded.

https://vibrationmountsindia.com/

Dynemech Wedge Mounts Series DB is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor.

These mounts provide 2 holes on the top plate of the wedge. The bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine.

Application– Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

Note- Freight Charges will be excluded.

https://vibrationmountsindia.com/

Dynemech Wedge Mounts, Series DT are designed for machines which are top heavy or have eccentric motion or machines which must be anchored to the ground.Range of Applications:Drilling and milling machines, machining centres, special machines, long lathes, long planers, power presses etc.

Application: Drilling and milling machines, machining centres, special machines, long lathes, long planers, power presses etc.

Anchor Set : As Per Customer Requirement

Load Capacity:2800 Kg/pc

Weight:15.8 Kgs

Material:Rubber & Cust Iron.

Colour:Dark Grey, Green

Usage:Industrial

Feature:• Drilling and milling machines, machining centres, special machines, long lathes, long planers, power presses etc.

Temperature:From -16 to 90

Note- Freight Charges will be excluded.

https://vibrationmountsindia.com/

Dynemech Wedge Mounts Series DB is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor.

These mounts provide 2 holes on the top plate of the wedge. The bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine.

Application: Measuring & Testing Machines,Surface Plates, Hardness Testers, Microscopes, EDM Machines, Profile Projectors etc.

Note- Freight Charges will be excluded.

https://vibrationmountsindia.com/

TPM Series Mounts are designed for industrial machines that require the machines to be placed at a height of 100mm / 150mm for proper cleaning and repairing under the machine as per IMTMA guidelines. This 3-piece wedge mount has an adjustable bolt which moves the center wedge between top and bottom stationery wedges to provide lift, to the top wedge. Anti-Skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech insulation plates.

Applications: Lathe Machines, Machining Centers, Milling Machines, Precision Grinding Machines, Drilling Machine, Turning Centers, Transfer Lines etc.

Application:Lathe Machines, Machining Centers, Milling Machines, Precision Grinding Machines, Drilling Machine, Turning Centers, Transfer Lines etc.

Feature:Designed for industrial machine tools that require precision leveling.

Note- Freight Charges will be excluded.

https://vibrationmountsindia.com/

Dynemech wedge mounts are designed for industrial machine tools that require precision leveling. This 3-piece wedge mount has an adjustable bolt which moves the center wedge between top and bottom stationery wedges to provide lift, to the top wedge. Anti-Skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech insulation plates.

Application:Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

Note- Freight Charges will be excluded.

https://vibrationmountsindia.com/

Dynemech Anti-vibration Dhs5 Insulation Plate are made from the compund of Nitrile Rubber, Cork,

Synthetic Fibre which at varying compositions gives different natural frequencies for providing vibration

damping solution to almost every machine tool. Also the Insulation Plates are resistant to fuels,

lubricating oils, water etc.

Application: Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.

Size :500x500x80mm

Load Capacity (Kg.):04 to 28

Natural Frequency (Hz):50-80

Thickness (mm):80

Coeff. of Friction:0.8

Working Temp Range °C:-20 to +70

Weight ( Kg.):28

Material: Nitrile Rubber, Cork, Synthetic Fibre and Other High Gread Compounds.

Colour:Green, Grey, Black

https://vibrationmountsindia.com/

Note- Freight charges will be excluded.

Dynemech Anti-vibration Dhs4 Insulation Plate are made from the compund of Nitrile Rubber, Cork,

Synthetic Fibre which at varying compositions gives different natural frequencies for providing vibration

damping solution to almost every machine tool. Also the Insulation Plates are resistant to fuels,

lubricating oils, water etc.

Application: Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses, Crushers etc.

https://vibrationmountsindia.com/

Note- Freight charges will be excluded.

Dynemech Anti-vibration Dhs2 Insulation Plate is made from high grade synthetic composite material. This sheet is resistant to

water, oils, lubricating oils, fuels, etc. used in shop floor. This sheet has defined stress value and can be placed directly under the

machine as per the weight of the machine and no. of mounting positions. This sheet will not deform plastically, if the weight of

machine does not exceed maximum load value of this insulation plate.

Application: Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses, Crushers etc.

https://vibrationmountsindia.com/

Note- Freight charges will be excluded.

Dynemech Anti-vibration Dhs3 Insulation Plate is made from high grade synthetic composite material. This sheet is resistant to

water, oils, lubricating oils, fuels, etc. used in shop floor. This sheet has defined stress value and can be placed directly under the

machine as per the weight of the machine and no. of mounting positions. This sheet will not deform plastically, if the weight of

machine does not exceed maximum load value of this insulation plate.

Application: Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.

https://vibrationmountsindia.com/

Note- Freight charges will be excluded.

Dynemech Anti-vibration Ds2 Insulation Plate is made from high grade synthetic composite material. This sheet is resistant to

water, oils, lubricating oils, fuels, etc. used in shop floor. This sheet has defined stress value and can be placed directly under the

machine as per the weight of the machine and no. of mounting positions. This sheet will not deform plastically, if the weight of

machine does not exceed maximum load value of this insulation plate.

Application:High Vibration Insulation for both active and passive range, Medium Presses, Stamping Machines, also well suited for high speed rotating machines on upper floors.

Note- Freight Charges will be excluded.

https://vibrationmountsindia.com/

Dynemech Insulation Plates Dp3 are made from the compund of Nitrile Rubber, Cork, Synthetic Fibre which at

varying compositions gives different natural frequencies for providing vibration damping solution to

almost every machine tool. Also the Insulation Plates are resistant to fuels, lubricating oils, water etc.

Application:Tuned to low natural frequency, suitable for passive vibration control of Measuring and Testing Machines, Grinders etc.

https://vibrationmountsindia.com/

Note- Freight Charges will be excluded.

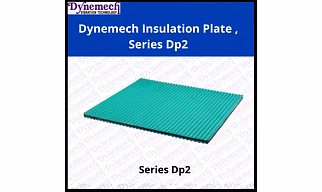

Dynemech Insulation Plates Dp2 are made from the compund of Nitrile Rubber, Cork, Synthetic Fibre which

at varying compositions gives different natural frequencies for providing vibration damping solution to

almost every machine tool. Also the Insulation Plates are resistant to fuels, lubricating oils, water etc.

Application:Suitable for passive vibration control of measuring & testing machines maintains machines stability along with vibration reduction.

Note- Freight Charges will be excluded.

https://vibrationmountsindia.com/
