Dynemech Level Grip Mounts Series DRM2-232-S2

Name: Dynemech Level Grip Mounts Series DRM2-232-S2
Brand: dynemech
SKU: 8371564
Price: 64.74 USD
Availability: InStock

Sold by dynemech systems private limited · Manufacturer · Sonipat, Haryana, India

Price

₹ 64.74 /Numbers

In stock

Inclusive of all taxes

Minimum order: 4 Numbers

MOQ: 4 Numbers

Export Snapshot

MOQ

4 Numbers

Lead time

On request

Packaging

Standard export packaging

Shelf life / longevity

As per product specification

HSN Code

84879000

Origin

India

Port of dispatch

On request

Export markets served

GB +5 others

Values shown are for dynemech systems private limited.

IEC CERTIFICATE

Suitable for

Importers · Distributors · Wholesalers

Sonipat Dispatch on request Verified seller

dynemech systems private limited

Manufacturer · Sonipat, Haryana, India

Registered address: Sonipat, India.

View profile All products

Established

Not shared

Employees

–

GST

06AABCD4754E1ZX

IEC code

Not shared

Export markets

GB +5 others

GlobalLinker Member Since

Not shared

Turnover

$1 MM - $2 MM

Incorporation Type

On request

Certifications & Awards

IEC CERTIFICATE IEC CODE IMTMA Membership ISO MSMEMART Membership Dynemech Brand TRADEMARK

Product details

What are the specifications of this product?

Overview

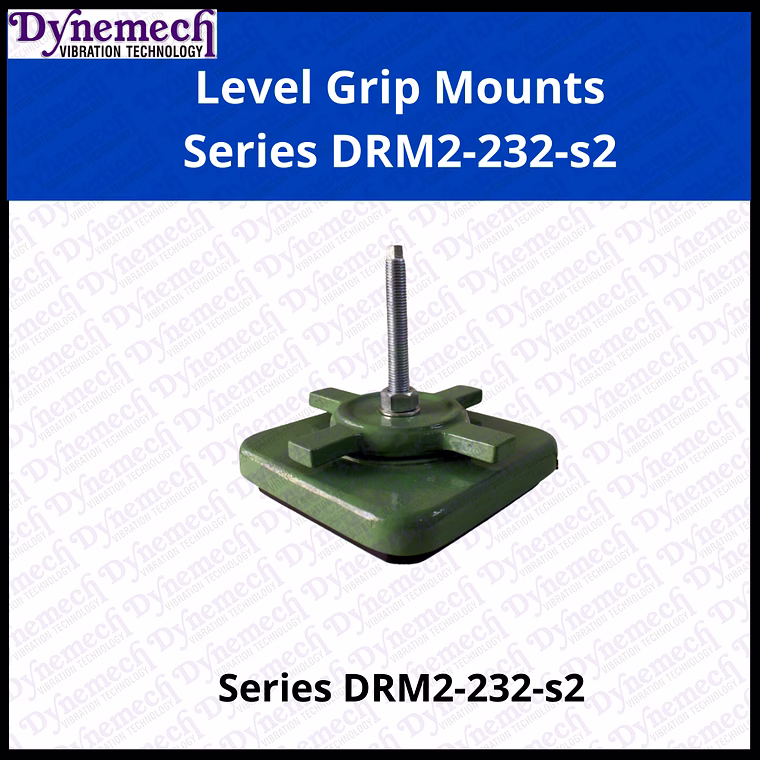

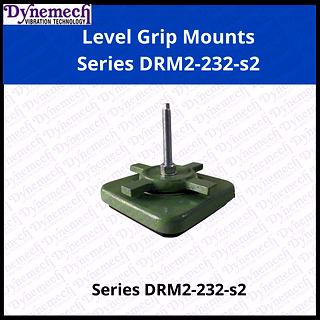

Dynemech Level Grip Mounts Series DRM2-232-S2 Mounts levelling is done using a large lever screw. This screw transmits static and dynamic load of the machine on a larger area and thus provides greater stability to the machine. The levelling leaver requires lesser torque for lifting the machine while levelling. Length:150(mm) To 232(mm) Width:150(mm) To 232(mm) Height:77(mm) To 77(mm) Bolt Size:M16x2.0x100mm To M20x2.5x100mm Levelling Adjustment: 20(mm) To 20 (mm) Load Capacity: 1000 Kg/pc To 3300 Kg/pc Natural Frequency (Hz):-8Hz To 8Hz Coeff. of Friction: 0.8 To 0.8 Freight Will Be Extra *****

Product Description

Length:150(mm) To 232(mm) Width:150(mm) To 232(mm) Height:77(mm) To 77(mm) Bolt Size:M16x2.0x100mm To M20x2.5x100mm

Levelling Adjustment: 20(mm) To 20 (mm)

Load Capacity: 1000 Kg/pc To 3300 Kg/pc

Natural Frequency (Hz):-8Hz To 8Hz

Coeff. of Friction: 0.8 To 0.8

Working Temp Range :16 to 90

Weight ( Kg.): 5 Kgs To 10 KgS

Material: Cast Iron, Rubber

Colour: Green And Black

Price-5192/-

Freight Will Be Extra

*****

Description provided by dynemech systems private limited.

Specifications

Length	150 mm to 232 mm
Width	150 mm to 232 mm
Height	77 mm
Bolt Size	M16x2.0x100mm to M20x2.5x100mm
Levelling Adjustment	20 mm
Weight	5 Kg to 10 Kg
Colour	Green and Black
Price	4400
Working Temperature Range	16°C to 90°C

Use cases

Category	machinery and tools > tools and hardware
Primary application	Wholesale, distribution, and international sourcing
Brand	dynemech
Product type	Product

Logistics & handling

Lead time	On request
Packaging	As per buyer requirement
Storage condition	As recommended by supplier
Origin	India
Form	As listed by supplier

Commercials (this seller)

Minimum order	4 Numbers
Lead time	On request
Payment terms	As per negotiated commercial agreement.

Buyer questions

Frequently asked by buyers

Common questions B2B buyers ask before sourcing Dynemech Level Grip Mounts Series DRM2-232-S2. Answers compiled from verified sellers' commercial terms and platform data.

Q: What is the maximum load capacity of the Dynemech Level Grip Mounts DRM2-232-S2?

A: The maximum load capacity is between 1000 Kg to 3300 Kg per piece, depending on the specific configuration.

Q: What materials are used in the construction of this mounting solution?

A: The mounts are constructed from durable cast iron for strength and rubber for vibration dampening.

Q: What is the operational temperature range for the Dynemech Level Grip Mounts?

A: These mounts can operate effectively within a temperature range of 16°C to 90°C.

Q: How does the levelling adjustment work for this mount?

A: The levelling adjustment utilizes a large lever screw that requires less torque to lift the machine, allowing for easy and efficient leveling.

Q: What is the significance of the natural frequency range of -8Hz to 8Hz?

A: This frequency range ensures that the mounts can effectively mitigate vibrations, contributing to better stability and performance of the machinery.
