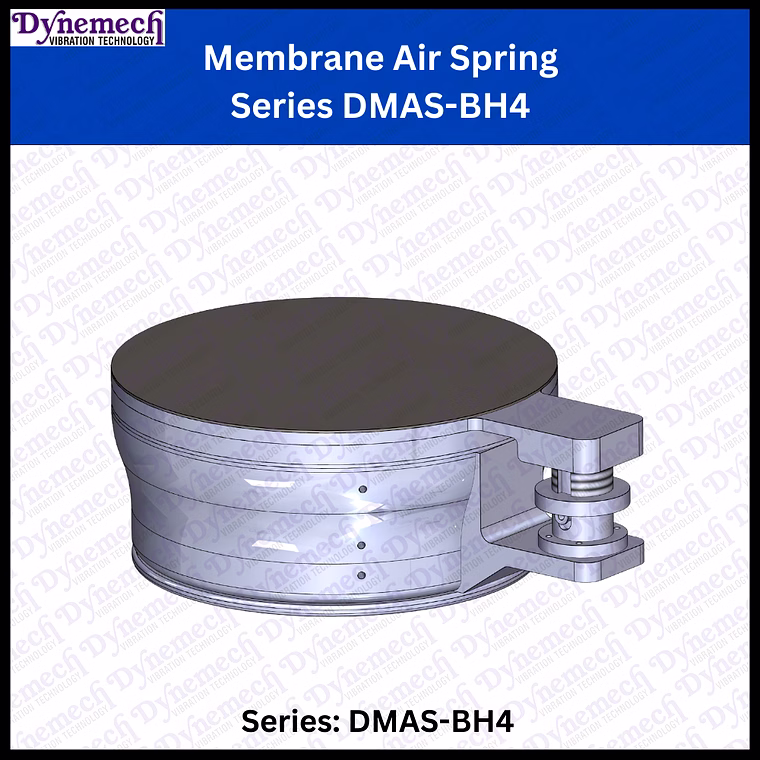

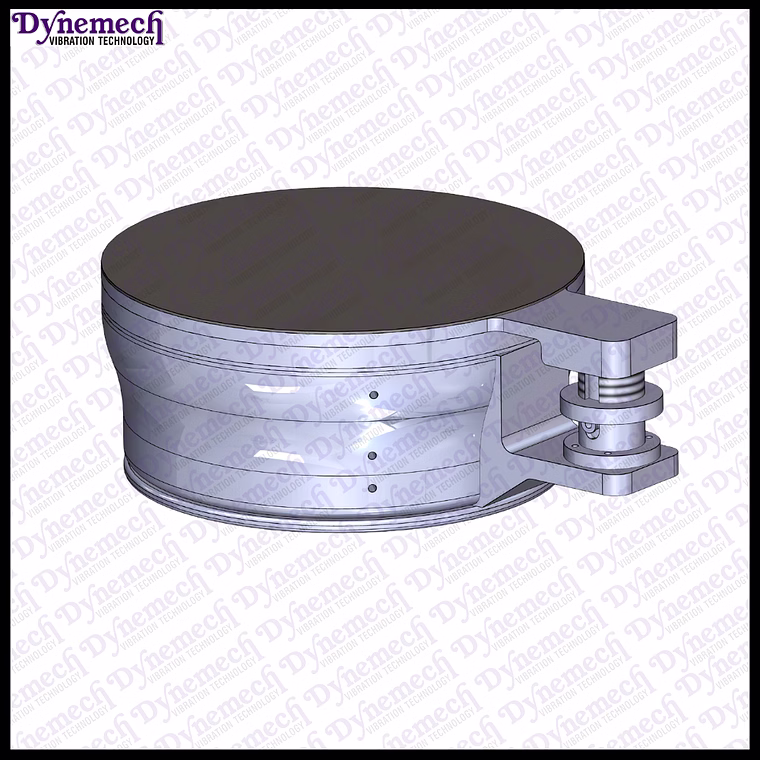

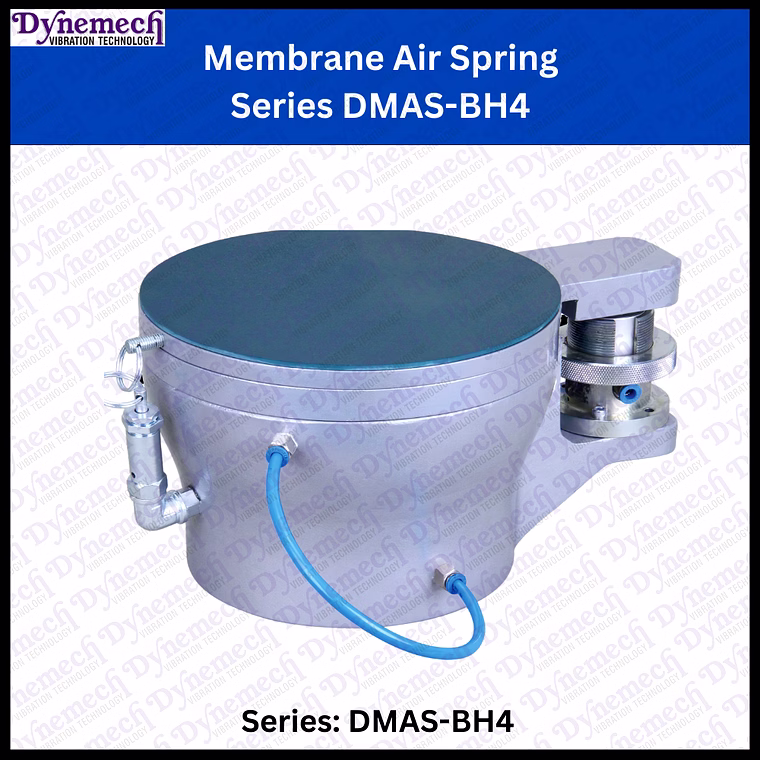

The Dynemech Membrane Air Spring Series DMAS-BH4 offers innovative solutions for precision leveling applications in industrial settings. This advanced system comprises three master pneumatic isolators featuring a self-leveling plunger mechanism, allowing for accurate height control and load sensing. Engineered from lightweight aluminum, the DMAS-BH4 is designed for durability, while a reinforced elastomeric diaphragm ensures effective load support. The inner chamber of the spring is divided into a load volume and a damping volume, allowing for optimized performance. With an adjustable damping capability of up to 20% through an external valve, users can calibrate the system to their specific needs effectively. The DMAS-BH4 achieves remarkable levelling accuracies of ± 0.015 mm and ± 0.15 mm, making it ideal for applications where precision is critical. Moreover, the robust safety valve protects against diaphragm over-inflation, enhancing operational safety. The system is complemented by a pressure regulator and distributor, requiring clean, dry air for optimal functionality. With a natural frequency of 2.5-3 Hz, the DMAS-BH4 offers exceptional stability and performance, ensuring reliability across various industrial applications.
Key Features
| Features | Description |
|---|---|
| Model | DMAS-BH4 |
| Structure | Three master pneumatic isolators for 3-point precision levelling |
| Weight | 110 Kg (for 4 Nos.) |
| Load Capacity | 800 Kg to 2450 Kg at 4 bar; 1200 Kg to 3700 Kg at 6 bar |
| Damping Adjustment | Up to 20% via external valve |
| Levelling Accuracy | ± 0.015 mm and ± 0.15 mm |
| Natural Frequency | 2.5-3 Hz |
| Temperature Range | -20°C to +70°C |
| Dimensions | Dia: 215-350 mm, d: 170-320 mm, Height: 155 mm, Length: 293-457 mm |
| Delivery Time | 7 to 8 Days |
| Price Range | Rs. 89,000 to Rs. 134,000 each |
| Attributes | Description |
|---|---|
| Diameter | 215 mm to 350 mm |
| D Height | 170 mm to 320 mm |
| Height | 155 mm |
| Length | 293 mm to 457 mm |
| Self Levelling Repeatability | ± 0.015 mm |
| Natural Frequency Vertical | 1.5-2.0 Hz |
| 4 Nos. of Boxes | 4 |
| 4 Nos. Box Size | 17"x17"x8" |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Dynemech DMAS-BH4 is primarily used for precision leveling in various industrial settings where accurate height control is essential.
Yes, the DMAS-BH4 features an external valve that allows for manual adjustment of damping up to 20%.
Absolutely! The system supports a load capacity range from 800 Kg to 3700 Kg, depending on the air pressure applied.
The DMAS-BH4 requires clean dry air to function optimally and efficiently.
It includes a safety valve that prevents over-inflation of the elastomeric diaphragm, ensuring safe operation.
Brand: dynemech
Country Of Origin: India
Dynemech DMAS-BH4 system consists of three master pneumatic isolators for 3-point precision levelling. Each pneumatic damping isolator consists of a self-levelling plunger mechanism. Which is the load sensing, and heigh-controlling element. The system is supplied with pressure regulator, distributor, Clean dry air is required to be supplied to the system. The DMAS-BH4 is lightweight aluminium body. The inner chamber is split into two parts i.e. load volume and damping volume. damping up to 20% can be adjusted using external valve manually. A thin reinforced elastomeric diaphragm supports the load. A safety valve protects diaphragm from over inflation. The final precise levelling of the system can be done using levelling nut provided on the plunger mechanism. Available levelling accuracies are ± 0.015 mm and ± 0.15 mm depending upon the application requirements. Natural frequency of the DMAS-BH4 system is 2.5-3 Hz.
Freight Will Be Extra
Dynemech DMAS-BH4 system consists of three master pneumatic isolators for 3-point precision levelling. Each pneumatic damping isolator consists of a self-levelling plunger mechanism. Which is the load sensing, and heigh-controlling element. The system is supplied with pressure regulator, distributor, Clean dry air is required to be supplied to the system. The DMAS-BH4 is lightweight aluminium body. The inner chamber is split into two parts i.e. load volume and damping volume. damping up to 20% can be adjusted using external valve manually. A thin reinforced elastomeric diaphragm supports the load. A safety valve protects diaphragm from over inflation. The final precise levelling of the system can be done using levelling nut provided on the plunger mechanism. Available levelling accuracies are ± 0.015 mm and ± 0.15 mm depending upon the application requirements. Natural frequency of the DMAS-BH4 system is 2.5-3 Hz.
Model: DMAS-BH4
Dia: 215(mm) To 350(mm)
d: 170(mm) To 320(mm)
Height: 155(mm) To 155(mm)
Length: 293(mm) To 457(mm)
Load Capacity at 4 bar: 800(Kg) To 2450(Kg)
Load Capacity at 6 bar: 1200(Kg) To 3700(Kg)
Self Levelling Repeatablity: ±0.015(mm)
Natural Frequency Vertical: 1.5-2.0(Hz)
4 Nos. weight: 110 Kg
4 Nos. of Boxes: 4
Delivery Time: 7 To 8 Days
4 Nos. Box Size: 17"x17"x8"
Temperature: -20°C To +70°C
Price Range Rs-158710- each
