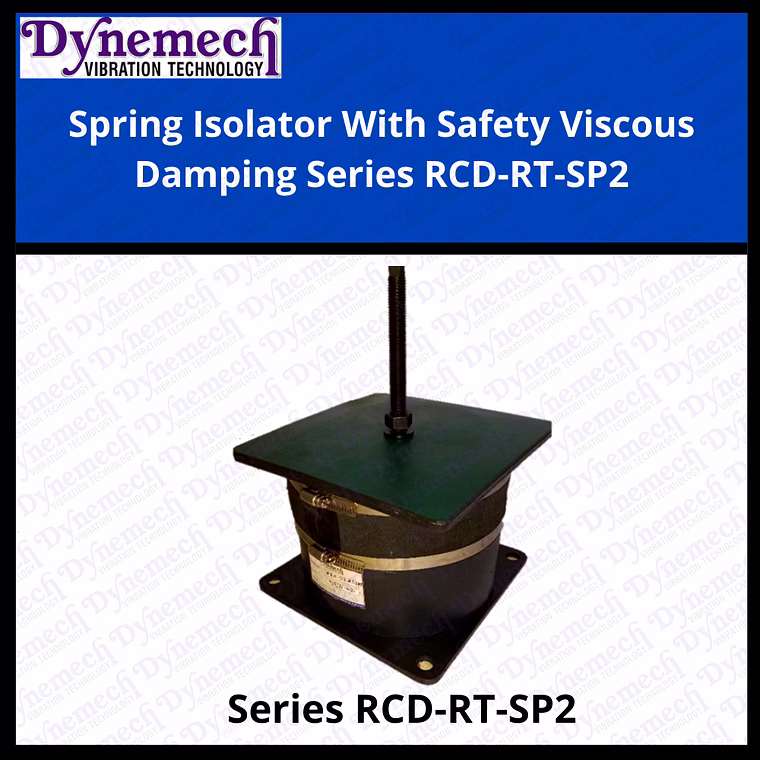

The Round Spring Vibration Isolators with Damping Series RCD-RT-SP2 from Dynemech are designed to provide superior vibration control for a wide variety of industrial applications. With over a decade of experience in offering anti-vibration solutions, Dynemech ensures high-quality and reliable performance with each isolator. The RCD-RT-SP2 model caters to loads ranging from 82 to 900 Kg, making it versatile for use in heavy presses, hammers, and generator sets. Featuring a natural frequency range of 3.5 to 11 Hz, this product allows for the effective isolation of vibrations, aligning seamlessly with rotating machinery's operating frequencies. The viscous damping integrated into the isolators significantly reduces fluctuations, thus enhancing machine operation, especially during critical phases like slow run-up and run-down. Additionally, its robust build is suited for both stationary and dynamic installations, ensuring durability and stability, crucial for precision machine tools. The product's dimensions include a free height of 161.5 mm with top and bottom plates sized at 235 x 235 mm allowing for easy installation. Improve operational efficiency and reduce wear and tear on machinery by investing in the Round Spring Vibration Isolators Series RCD-RT-SP2.
Key Features
| Features | Description |
|---|---|
| Model | RCD-RT-SP2 |
| Load Capacity | 82-900 Kg |
| Free Height | 161.5 mm |
| Bolt Size | M16 |
| Top Plate Dimensions | 235 x 235 mm |
| Bottom Plate Dimensions | 235 x 235 mm |
| Center-to-Center Distance | 205 mm |
| Natural Frequency Range | 3.5-11 Hz |
| Damping Type | Viscous Damping |
| Attributes | Description |
|---|---|
| Material | High quality steel and rubber composite |
| Height Adjustment | Yes |
| Application | Heavy machinery, presses, and generators |
| Functionality | Vibration isolation for rotating machinery |
| Temperature Range | Up to 80°C |
| Installation Method | Bolted onto machine base |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Round Spring Vibration Isolators RCD-RT-SP2 can handle loads between 82 to 900 Kg.
The RCD-RT-SP2 utilizes viscous damping to effectively limit excessive movement during operation.
The natural frequency range of 3.5 to 11 Hz allows the isolators to tune out specific vibrations from rotating machinery, enhancing system performance.
Yes, the RCD-RT-SP2 isolators can operate effectively in temperatures up to 80°C.
These isolators are installed by bolting them onto the machine base using an M16 bolt size.
Brand: dynemech
Country Of Origin: India
Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine. Viscous Damping is an important feature of an isolation system.
Model:RCD-J2-RT-SP2
Load(Kg):82-900
Free Height H (mm):161.5
Bolt Size: M16 Top Plate AXB(mm):235x235
Bottom Plate CXD(mm):235x235 CC(mm):205
Natural Frequency Range(Hz):3.5-11
Freight Will Be Extra
Dynemech Spring Isolator
Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine. Viscous Damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system. Generally this problem arises during slow run up and run down of rotating machines and during impact at each stroke in presses and hammers.
Model:RCD-J2-RT-SP2
Load(Kg):82-900 Free
Height H (mm):161.5
Bolt Size: M16
Top Plate AXB(mm):235x235
Bottom Plate CXD(mm):235x235 CC(mm):205
Natural Frequency Range(Hz):3.5-11
Freight Will Be Extra
