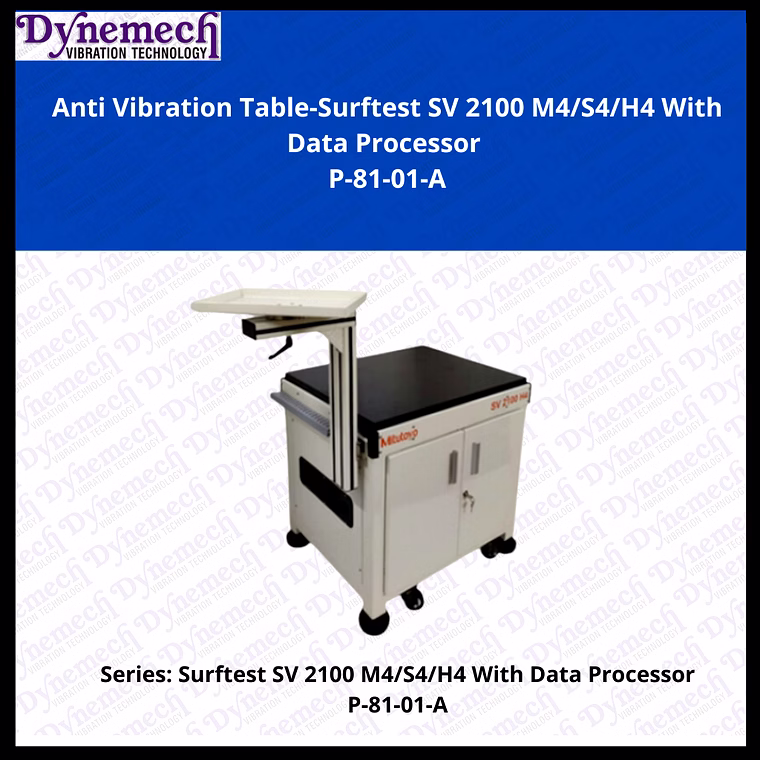

The Dynemech Anti-Vibration Table specifically designed for the SV 2100 M4/S4/H4 and P-81-01-A series provides unparalleled stability and precision in testing environments exposed to industrial vibration. With a granite base measuring 750mm in length, 600mm in breadth, and 30mm in thickness, our table ensures Grade-1 accuracy for meticulous measurements. The robust 60x60 mm HR tubular structure, supplemented by four cross members, increases rigidity and diminishes any potential flex, while the advanced vibration damping mechanisms situated below the granite top and at its base effectively minimize disturbances caused by surrounding machines. Choose from Elastomeric, Pneumatic, or Spring-Based Damping for an ideal response to specific laboratory vibration scenarios. The table's ergonomic features, including a front double door for easy access, a designated keyboard and mouse platform, as well as a laser-cut joystick pocket, are designed to enhance user experience, making it the perfect addition to any quality assurance lab vulnerable to vibration disruptions.
Key Features
| Features | Description |
|---|---|
| Granite Surface Plate | Size: L-750 mm, B-600 mm, T-30 mm with Grade-1 accuracy. |
| Vibration Damping | Dual-point vibration damping with options of Elastomeric, Pneumatic, or Spring-based. |
| Structural Design | 60x60 mm HR tubular structure with 4 cross members for stability. |
| Mobility | Equipped with 4 nos - 3” wheels for easy movement. |
| Access and Usability | Front double door access, integrated keyboard/mouse surface, and joystick pocket. |
| Levelling Feet | Adjustable levelling feet with insulation plates to remove unwanted vibrations. |
| Load Capacity | Designed to withstand substantial loads associated with testing equipment. |
| Data Processing Unit | Front pivot jointed swivelling unit accommodating a data processor. |
| Attributes | Description |
|---|---|
| Model Compatibility | SV 2100 M4/S4/H4, P-81-01-A |
| Granite Base Size | 750 mm x 600 mm x 30 mm |
| Tubular Structure Size | 60 x 60 mm |
| Number of Wheels | 4 nos - 3" wheels |
| AV Pads | 8 nos between structure and granite base |
| Number of Cross Members | 4 nos DLP3 at ground level |
| Surface Design | Laser cut joystick pocket with top rim |
| Additional Features | Double door access for improved usability |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Dynemech Anti-Vibration Table is ideal for testing and quality laboratories, especially those co-located with industrial units experiencing high levels of vibration from machinery.
Select from Elastomeric, Pneumatic, or Spring-Based Damping depending on the nature of the vibrations present in your testing laboratory.
While the specific weight capacity varies, the Anti-Vibration Table is designed to support substantial loads typical of testing and laboratory equipment.
The table comes with a front double door and additional surfaces for a keyboard and mouse that enhance user convenience and ergonomics.
It features a durable granite surface plate and a robust tubular steel structure to provide durability and accuracy.
Brand: dynemech
Country Of Origin: India
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Granite base of size: L-750 B-600 T-30 mm
60x60 mm HR tubular structure with cross member
4 nos DLP3 at ground level, 4 nos - 3” wheel
8 nos AV pad between structure and granite base Front double door
keyboard & mouse over the surface with laser cut joystick pocket with top rim and Front pivot jointed swivelling unit with data processor.
Note- Freight Charges will be excluded.
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.
Granite base of size: L-750 B-600 T-30 mm
60x60 mm HR tubular structure with cross member
4 nos DLP3 at ground level, 4 nos - 3” wheel
8 nos AV pad between structure and granite base Front double door
keyboard & mouse over the surface with laser cut joystick pocket with top rim and Front pivot jointed swivelling unit with data processor
Note- Freight Charges will be excluded.
