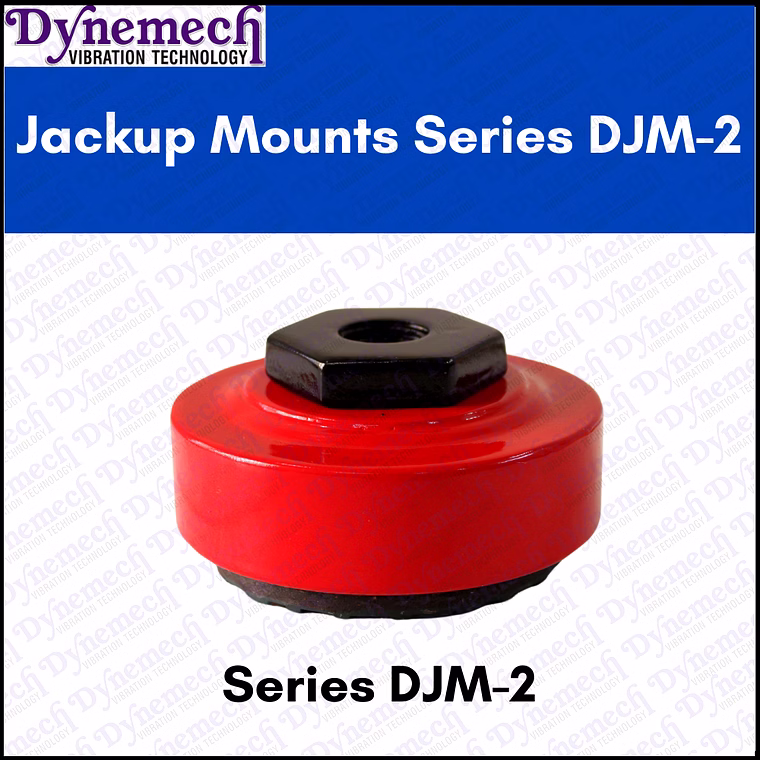

The Dynemech Jackup Mounts Series DJM-2 is expertly designed to provide superior isolation solutions for a wide range of machines and mounting scenarios. With an exceptional load capacity ranging from 850Kg per piece to 2500Kg per piece, these mounts are engineered for high performance and stability. The mounts feature a non-skid bottom design that enhances grip, ensuring stability even under high loads. In addition, they offer impressive passive vibration isolation capabilities, protecting machines from unwanted vibrations while promoting optimal functioning. The DJM-2 mounts accommodate a leveling adjustment of up to 18mm, allowing for precise positioning and alignment of equipment. Suitable for various industrial applications, these jackup mounts exhibit a robust material composition of cast iron and rubber, making them both durable and reliable. More importantly, they are designed to withstand a range of working temperatures from -16°C to 90°C, ensuring dependable operation in diverse environments. Whether for use in manufacturing, aviation, or any heavy-duty industrial sector, the Dynemech Jackup Mounts Series DJM-2 promises unmatched load stability and performance.
Key Features
| Features | Description |
|---|---|
| Load Capacity | 850Kg/pc to 2500Kg/pc |
| Level Adjustment | 18mm |
| Natural Frequency Range | 18Hz |
| Coefficient of Friction | 0.9 |
| Working Temperature Range | -16°C to 90°C |
| Material | Cast Iron, Rubber |
| Weight | 1.5Kg to 5Kg |
| Color | Red |
| Non-Skid Design | Enhanced grip for stability |
| Attributes | Description |
|---|---|
| Diameter (D) | 90mm to 160mm |
| Height (H) | 49mm |
| Thread (G) | M20x2.5 Thread Length: 38mm |
| HEX SW | 46mm to 62mm |
| Price | 2270 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The maximum load capacity is 2500Kg per piece.
Yes, the Dynemech DJM-2 mounts offer a leveling adjustment capability of 18mm.
The DJM-2 mounts are made of durable cast iron and rubber.
The working temperature range is from -16°C to 90°C.
They utilize a non-skid bottom design to enhance grip and ensure stable performance.
Brand: dynemech
Country Of Origin: India
Dynemech Jackup mounts DJM-2 provides isolation solutions for various machines and mounting conditions. The Dynemech Jackup mounts also provides for high machine leveling capabilities. These Jackup mounts provide high load capacity and best level stability. The bottom design provides for non-skid properties for the Jackup mount. The Jackup mount also provide very good passive vibration isolation.
Dia D(mm):- 90mm To 160mm
Height H(mm):-49mm To 49mm
G(mm): M20x2.5 Thread Length:38mm To M20x2.5mm
Thread Length:38mm HEX SW(mm): 46(mm) To 62(mm)
Load Capacity:850Kg/pc To 2500Kg/pc Levelling Adjustment(mm):18 mm To 18 mm
Natural Frequency Range Hz: 18(Hz) To 18(Hz)
Coeff. of Friction: 0.9 To 0.9
Weight ( Kg.):1.5 Kgs To 5 Kgs
Working Temp Range: -16 to 90
Amount-2678.6 INR
Freight Will Be Extra
Dynemech Jackup mounts DJM-2 provides isolation solutions for various machines and mounting conditions. The Dynemech Jackup mounts also provides for high machine leveling capabilities. These Jackup mounts provide high load capacity and best level stability. The bottom design provides for non-skid properties for the Jackup mount. The Jackup mount also provide very good passive vibration isolation.
Dia D(mm):- 90mm To 160mm Height H(mm):-49mm To 49mm G(mm): M20x2.5 Thread Length:38mm To M20x2.5mm Thread Length:38mm HEX SW(mm): 46(mm) To 62(mm) Load Capacity:850Kg/pc To 2500Kg/pc Levelling Adjustment(mm):18 mm To 18 mm Natural Frequency Range Hz: 18(Hz) To 18(Hz) Coeff. of Friction: 0.9 To 0.9 Weight ( Kg.):1.5 Kgs To 5 Kgs
Working Temp Range: -16 to 90
Material : Cast Iron, Rubber
Colour: Red
Amount-2678.6 INR
Freight Will Be Extra
