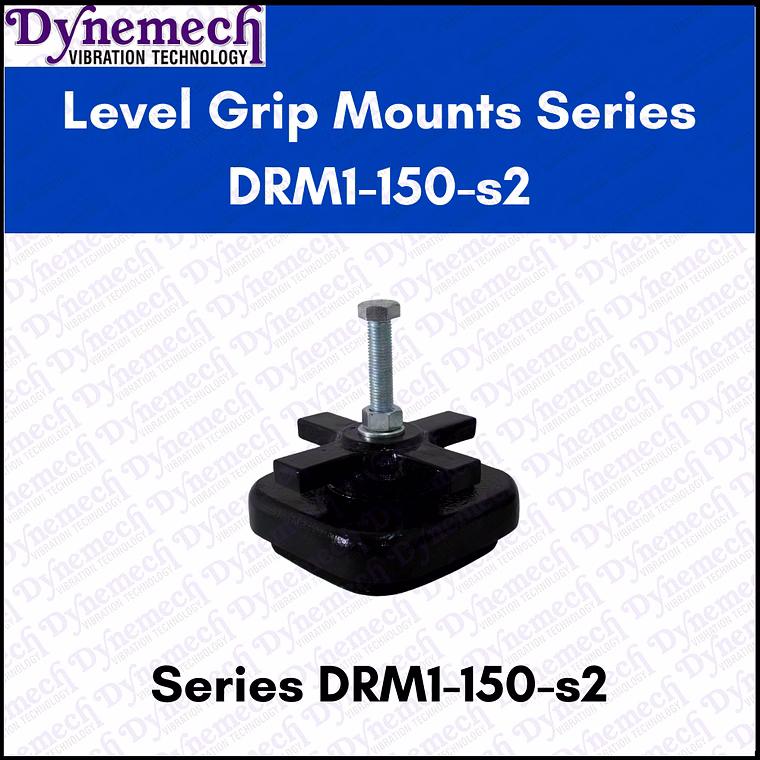

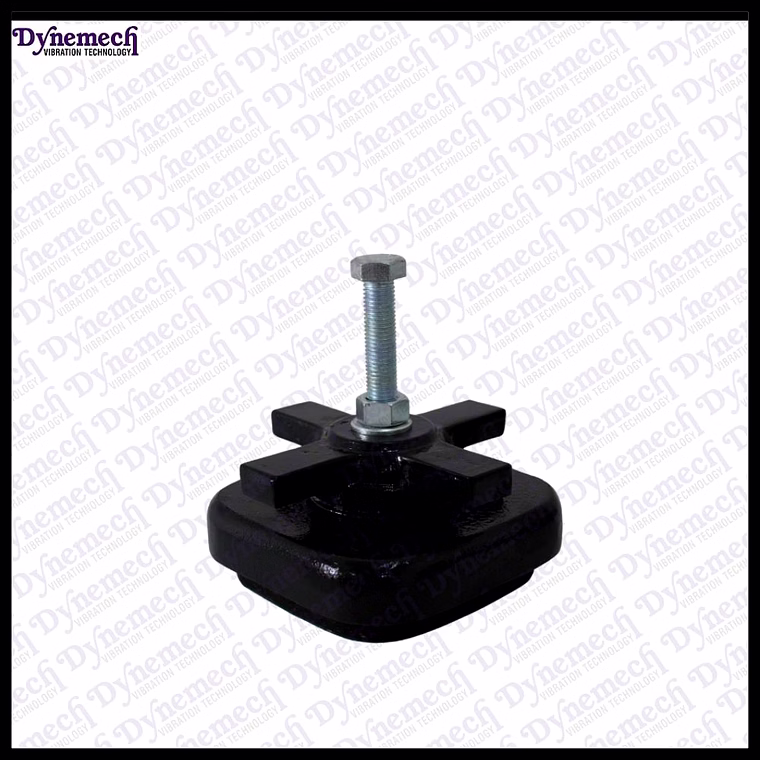

Dynemech Level Grip Mounts Series DRM1-150-S2

Name: Dynemech Level Grip Mounts Series DRM1-150-S2
Brand: dynemech
SKU: 8371560
Price: 38.26 USD
Availability: InStock

Sold by dynemech systems private limited · Manufacturer · Sonipat, Haryana, India

Price

₹ 38.26 /Numbers

In stock

Inclusive of all taxes

Minimum order: 4 Numbers

MOQ: 4 Numbers

Export Snapshot

MOQ

4 Numbers

Lead time

On request

Packaging

Standard export packaging

Shelf life / longevity

As per product specification

HSN Code

84879000

Origin

India

Port of dispatch

On request

Export markets served

GB +5 others

Values shown are for dynemech systems private limited.

IEC CERTIFICATE

Suitable for

Importers · Distributors · Wholesalers

Sonipat Dispatch on request Verified seller

dynemech systems private limited

Manufacturer · Sonipat, Haryana, India

Registered address: Sonipat, India.

View profile All products

Established

Not shared

Employees

–

GST

06AABCD4754E1ZX

IEC code

Not shared

Export markets

GB +5 others

GlobalLinker Member Since

Not shared

Turnover

$1 MM - $2 MM

Incorporation Type

On request

Certifications & Awards

IEC CERTIFICATE IEC CODE IMTMA Membership ISO MSMEMART Membership Dynemech Brand TRADEMARK

Product details

What are the specifications of this product?

Overview

Dynemech Level Grip Mounts Series DRM1-150-S2 Mounts levelling is done using a large lever screw. This screw transmits static and dynamic load of the machine on a larger area and thus provides greater stability to the machine. The levelling leaver requires lesser torque for lifting the machine while levelling. Length:150(mm) To 232(mm) Width:150(mm) To 232(mm) Height:77(mm) To 77(mm) Bolt Size:M16x2.0x100mm To M20x2.5x100mm Levelling Adjustment: 20(mm) To 20 (mm) Load Capacity: 1000 Kg/pc To 3300 Kg/pc Natural Frequency (Hz):-8Hz To 8Hz Coeff. of Friction: 0.8 To 0.8 Working Temp Range :16 to 90 Weight ( Kg.): 5 Kgs To 10 Kgs Amount-3,068 Freight Will Be Extra *****

Product Description

Length:150(mm) To 232(mm) Width:150(mm) To 232(mm) Height:77(mm) To 77(mm) Bolt Size:M16x2.0x100mm To M20x2.5x100mm

Levelling Adjustment: 20(mm) To 20 (mm)

Load Capacity: 1000 Kg/pc To 3300 Kg/pc

Natural Frequency (Hz):-8Hz To 8Hz

Coeff. of Friction: 0.8 To 0.8

Working Temp Range :16 to 90

Weight ( Kg.): 5 Kgs To 10 KgS

Material: Cast Iron, Rubber

Colour: Green And Black

Amount-3,068

Freight Will Be Extra

*****

Description provided by dynemech systems private limited.

Specifications

Dimensions (LxWxH)	150 mm to 232 mm x 150 mm to 232 mm x 77 mm
Levelling Adjustment	20 mm
Color Options	Green and Black
Price	2600
Torque Requirement	Low

Use cases

Category	machinery and tools > machinery service
Primary application	Wholesale, distribution, and international sourcing
Brand	dynemech
Product type	Product

Logistics & handling

Lead time	On request
Packaging	As per buyer requirement
Storage condition	As recommended by supplier
Origin	India
Form	As listed by supplier

Commercials (this seller)

Minimum order	4 Numbers
Lead time	On request
Payment terms	As per negotiated commercial agreement.

Buyer questions

Frequently asked by buyers

Common questions B2B buyers ask before sourcing Dynemech Level Grip Mounts Series DRM1-150-S2. Answers compiled from verified sellers' commercial terms and platform data.

Q: What materials are the Dynemech Level Grip Mounts made of?

A: The Dynemech Level Grip Mounts are constructed from durable cast iron and feature rubber components.

Q: What is the torque requirement for levelling the mounts?

A: The levelling lever requires minimal torque for lifting the machinery, making it easy to operate.

Q: Can these mounts handle dynamic loads?

A: Yes, the mounts are designed to transmit both static and dynamic loads effectively, providing greater stability.

Q: What is the load capacity range of the DRM1-150-S2 mounts?

A: The load capacity ranges from 1000 Kg to 3300 Kg per unit.

Q: What temperature range do these mounts operate in?

A: The mounts can function efficiently within a working temperature range of 16 °C to 90 °C.

Q: Are these mounts adjustable in size?

A: Yes, they offer adjustments in length (150 mm to 232 mm) and width (150 mm to 232 mm).
