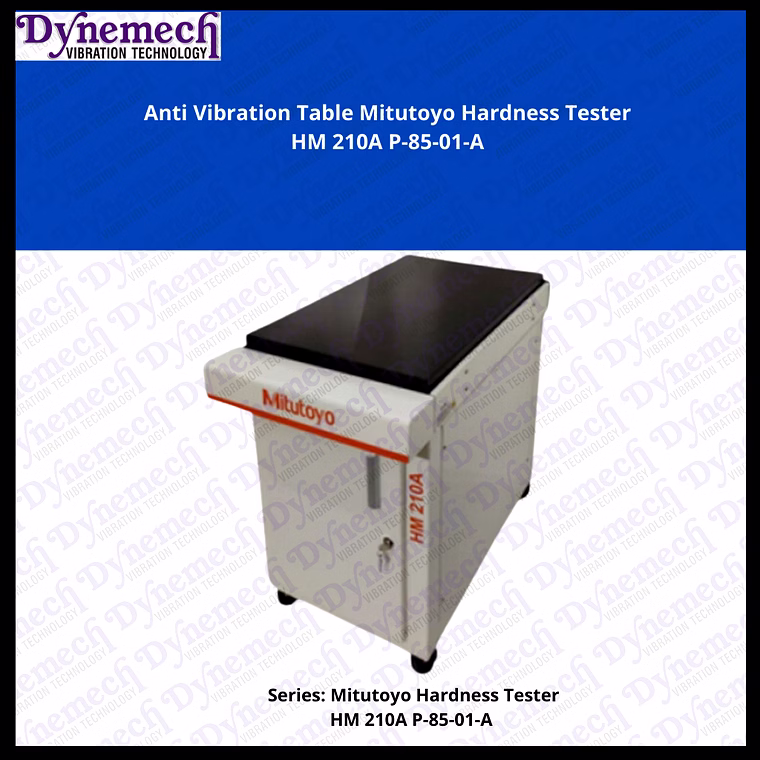

Introducing the **Precision Measuring Metrology Instrument Anti Vibration Table** (Model P-85-01-A), specifically engineered to perform in environments with extreme vibrations typical of industrial settings. This high-quality anti-vibration table features a robust granite base measuring 450 x 750 x 30 mm and is supported by a tubular structure tailored to this size for optimal stability and durability. The table is designed for labs engaged in precise testing, where a stable platform is essential. With its wrap-around construction and front extended cover, the P-85-01-A not only delivers exceptional performance but also adds a touch of elegance to your laboratory setup. It is fitted with four 2-inch caster wheels for easy mobility and includes a power strip conveniently located at the rear. Furthermore, the table features a single front door with handles and a lock for secure storage, along with a drawing pouch on the left-hand side for organization. Equipped with leveling balls and spanner tools, this table can be precisely adjusted to meet the needs of any testing or quality laboratory, ensuring the utmost accuracy. Our Anti-Vibration Tables are particularly effective in mitigating disturbances from heavy machinery including presses, hammers, and vertical machining centers (VMCs). The granite surface plate offers Grade-1 precision, while the advanced vibration damping features make this table a staple in any analytical lab, ready to meet all measurement challenges head-on.
Key Features
| Features | Description |
|---|---|
| Granite Base Dimensions | L 450 x B 750 x T 30 mm |
| Tubular Structure Size | 60 x 60 mm |
| Construction Type | Wrap Around with Front Extended Cover |
| Mobility | 4 No’s – 2” Caster Wheels |
| Power Supply | Power Strip located at Rear |
| Storage Options | Single Door with Handles and Lock |
| Additional Features | Drawing Pouch on L.H Side, Leveling Ball, Spanner 24/27 |
| Vibration Damping Method | Options: Elastomeric, Pneumatic, or Spring Based Damping |
| Attributes | Description |
|---|---|
| Granite Surface Plate Accuracy | Grade-1 |
| Vibration Isolation | Damping at both granite table top and bottom |
| Suitability | Designed for Quality Laboratories and Analytical Balances |
| Weight Capacity | Specific user requirements can be assessed |
| Material | Granite and Steel Tubular Frame |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The P-85-01-A offers several damping options including Elastomeric, Pneumatic, and Spring-Based Damping tailored to specific vibration conditions in your laboratory.
Yes, the table comes with four 2-inch caster wheels which make it easy to move within your laboratory while maintaining its stability.
Absolutely! The table is designed for laboratories located near industrial units with heavy machinery, making it highly effective in minimizing measurement disruptions.
The locking front door provides secure storage for sensitive equipment or measuring instruments, ensuring they are protected from unauthorized access.
Yes, some assembly may be required upon delivery, but it is straightforward with included tools such as the leveling ball and spanner.
Brand: dynemech
Country Of Origin: India
Granite base of size L 450 X B 750 X T 30 mm
60 X 60 mm Tubular Structure to Suit Granite size 450 X 750 X 30 mm
Wrap Around Construction with front extended cover for aesthetics
4 No’s – 2” Caster wheels Power Strip in Rear & Drawing Pouch on L.H Side Front single door with handles and lock Leveling Ball, Spanner 24/27
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Freight Will Be Extra
Granite base of size L 450 X B 750 X T 30 mm
60 X 60 mm Tubular Structure to Suit Granite size 450 X 750 X 30 mm
Wrap Around Construction with front extended cover for aesthetics
4 No’s – 2” Caster wheels Power Strip in Rear & Drawing Pouch on L.H Side Front single door with handles and lock Leveling Ball, Spanner 24/27
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.
