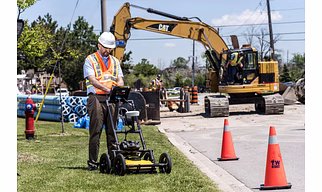

LMX range of Ground Penetrating Radar

LMX GPR (Ground Penetrating Radar) systems are portable geophysical equipments which could be effectively used in underground utility detection particularly non-conductive pipes and ducts, culverts, abandoned drains, railway signal cables (buried), outcrops covered under soil etc., using high-frequency Radar. When locating underground utilities, GPR can be a valuable complement to electromagnetic cable and pipe locators.

​

LMX GPR allows users to create depth slices and review their locate path on screen while on site, and selectively enhance shallow/small, medium depth/size, or deep/large targets using the proprietary technology.

Advantages of LMX GPRs:

* Portable

* User intuitive

* DynaQ and DynaT functions to control the best towable speed to detect the underground utilities with

   precision!

* Floatable radar antenna with adjustable height to accommodate with the uneven terrain!

* Single power source

* 250 MHz / 500 MHz ultra-wide band antenna for surveying shallow medium and deeper utilities

* On-site report option!

* On board, On-site depth calibration

* Processing possibilities on the display unit!

* Split screen where the radar image and path of travel could be seen together in LMX 150 / 200 GPR

   with line and grid scanning option!

* On-board 3D visualisation on the GPR display screen with depth slicing options in LMX 150 & LMX 200

   GPRs

* GPS enabled (on board)

* EKKO Project softwares for post processing of data and for preparation of survey reports.

* All GPR data is geo tagged

* Competitive pricing!

* Option to select various EKKO Project software versions (optional)
