Dynemech High-performance Vibration Isolators, WEDGE MOUNT, Series DB (Bolt on) are precision-engineered mounts designed to provide superior vibration isolation and leveling stability for heavy machinery. These vibration isolators are ideal for machines that require firm mounting without floor anchoring and experience high axial thrust during operation. Featuring a robust wedge design with dual bolt holes on the top plate, these mounts offer flexible installation to maximize the coverage by the machine's leg or base, ensuring optimal load distribution and stability. Manufactured from durable rubber and cast iron, the Series DB wedge mounts have an impressive load capacity ranging from 1800 Kg to 9500 Kg per unit, making them suitable for heavy industrial applications. The bolt supplied (M16 x 2.0 x 150 mm) ensures firm anchoring within the mount, providing reliable support under dynamic conditions. Operating efficiently within a wide temperature range (-16°C to 90°C) and offering a low natural frequency between 7 Hz and 25 Hz, these mounts significantly reduce vibrations and shocks, enhancing machine performance and longevity. The high coefficient of friction (0.8) prevents movement under load, further increasing equipment safety and reliability. These mounts come in green, grey, and black finish options and are packaged in a compact dimension box (13" x 8" x 7") for convenient transportation and storage. Weighing 15 Kgs per 4 units, these wedge mounts are a perfect solution for precision leveling, vibration isolation, and high axial thrust-bearing applications in industrial settings.
Key Features
| Features | Description |
|---|---|
| Load Capacity | 1800 Kg to 9500 Kg per piece |
| Size | 115 x 115 x 69 mm |
| Bolt Size | M16 x 2.0 x 150 mm |
| Natural Frequency | 7 Hz to 25 Hz |
| Coefficient of Friction | 0.8 |
| Working Temperature Range | -16°C to 90°C |
| Material Composition | Rubber and Cast Iron |
| Mounting Type | Bolt-on wedge mount with 2 bolt holes |
| Color Options | Green, Grey, Black |
| Package Dimensions | 13 inches x 8 inches x 7 inches |
| Weight per 4 units | 15 Kgs |
| Attributes | Description |
|---|---|
| Series | DB |
| Design Purpose | Precision leveling with vibration reduction |
| Installation | Firmly mounted to machine leg/base with bolt, no floor anchoring required |
| Number of Bolt Holes | 2 holes on top plate for flexible mounting |
| Bolt Provided | Standard accessory included |
| Axial Thrust Handling | Suitable for machines with high axial thrust |
| Box Count | 1 box containing 4 units |
| Application | Heavy industrial machinery needing stable, vibration-isolated mounting |
| Finish | Painted in Green, Grey, or Black |
| Manufacturer Website | https://vibrationmountsindia.com/ |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

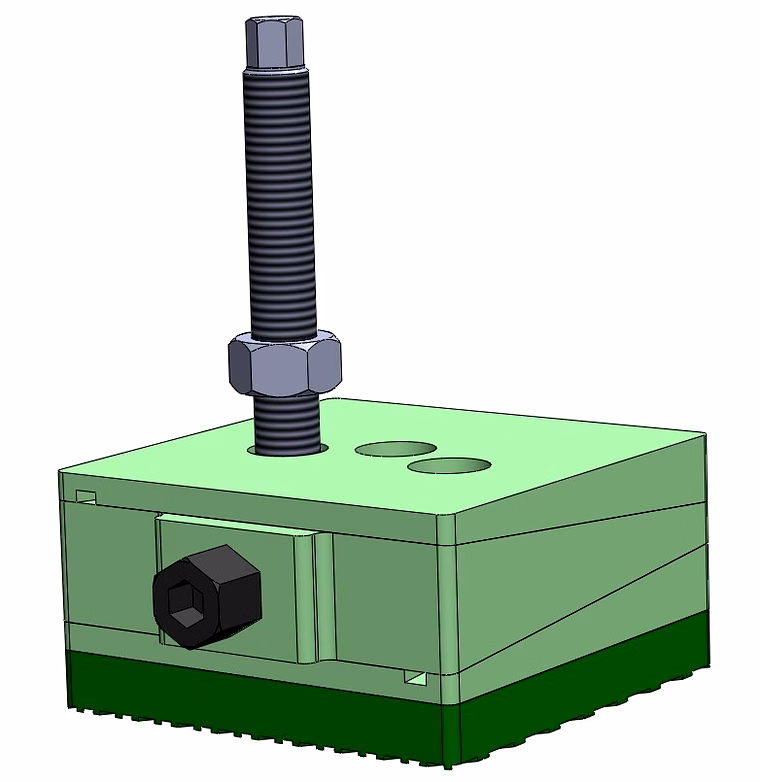

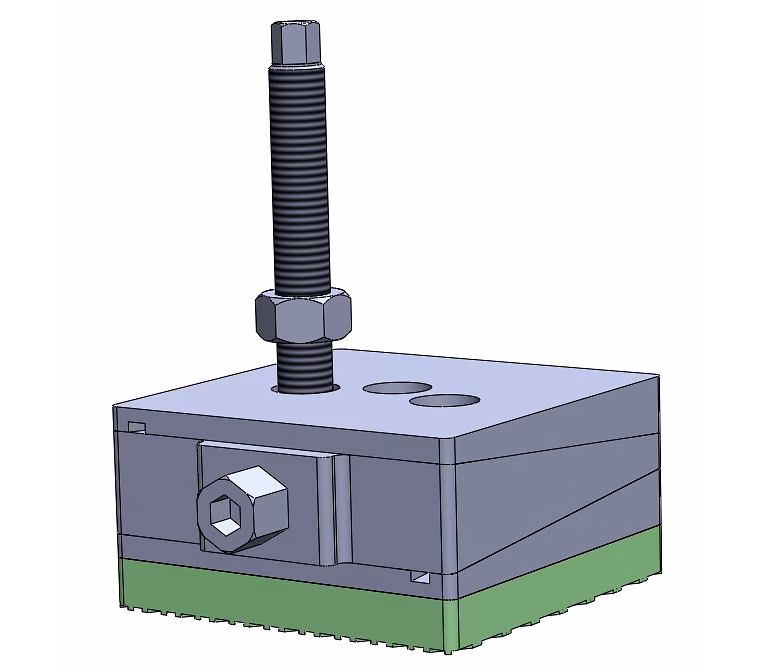

The wedge mount is designed with a robust bolt-on system and dual bolt holes on the top plate, enabling firm fastening to the machine’s leg or base. This secure mounting negates the need for floor anchoring even under high axial thrust conditions.
The two bolt holes provide installation flexibility, allowing the bolt to be positioned such that the mount is maximally covered by the machine’s leg/base. This optimizes load distribution and enhances stability and vibration isolation.
Yes, the DB Series mounts are operational within a temperature range from -16°C to 90°C, ensuring reliable performance under various industrial environmental conditions.
These mounts combine the strength of cast iron for structural support with rubber components that provide excellent vibration damping and load bearing.
The natural frequency ranges from 7 to 25 Hz, which effectively isolates low-frequency vibrations common in heavy machinery, thereby reducing noise, wear, and operational fatigue.
Yes, the DB Series wedge mounts come with M16 x 2.0 x 150 mm bolts as standard accessories for convenient and secure mounting.
Brand: dynemech
Country Of Origin: India
Dynemech Wedge Mounts Series DB is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor.
These mounts provide 2 holes on the top plate of the wedge. The bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine.
Size :115x115x69mm
Load Capacity (Kg.):1800 Kg/pc To 9500Kg/pc Bolt Size: M16 X 2.0 X 150 Long
Dynemech Wedge Mounts Series DB is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor.
These mounts provide 2 holes on the top plate of the wedge. The bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine.
Size :115x115x69mm
Load Capacity (Kg.):1800 Kg/pc To 9500Kg/pc Bolt Size: M16 X 2.0 X 150 Long
Natural Frequency (Hz):25-7
Coeff. of Friction:0.8
Working Temp Range °C:-From -16 to 90
Material:Rubber & Cust Iron Box Dimention: 13"X8"X7" Weight Of 04 Nos: 15 Kgs Number Of Box:01
Colour:Green, Grey, Black Amount: 1940
