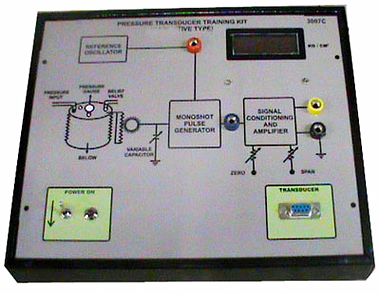

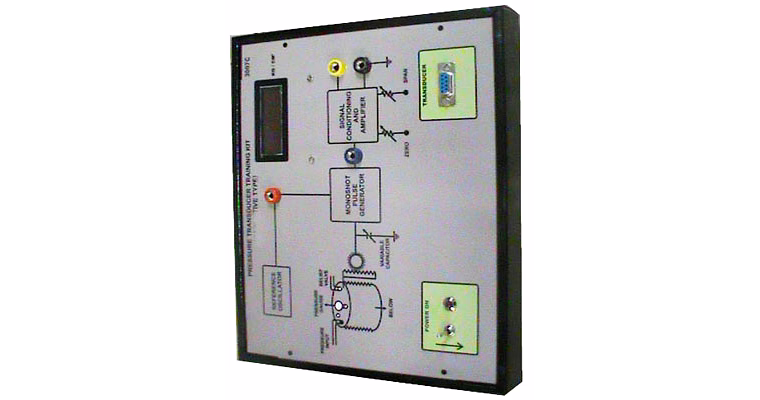

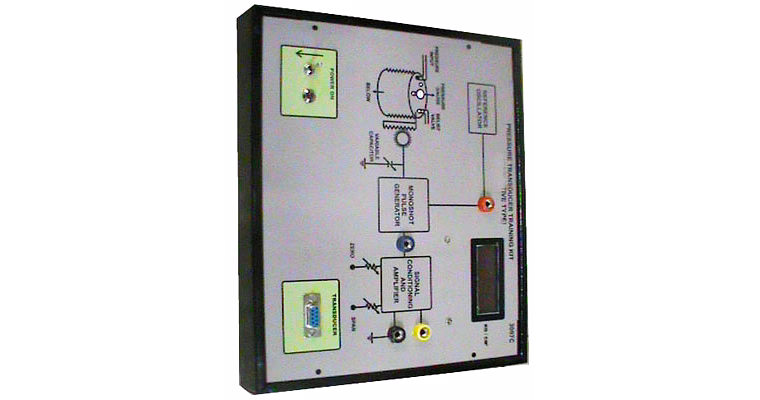

The Pressure Transducer Trainer - Load Cell is a specialized educational and demonstration unit designed for accurate measurement and analysis of pressure using a load cell transducer. This trainer is a standalone, compact system that integrates a load cell coupled with a metal bellow to convert pressure into electrical signals, making it an ideal tool for industrial training institutes, engineering colleges, and R&D labs focused on instrumentation and control systems. It features a highly sensitive strain gauge-based load cell configured in a bridge type arrangement and excited with a regulated 5V DC source. The analog signals from the load cell are amplified by a solid-state precision amplifier and converted into readable data displayed on a clear 3.5 digit digital meter for direct pressure readings ranging from 0 to 5 Kg/cm2. Designed with an elegant powder-coated metal enclosure and an acrylic front panel, the trainer offers an intelligently laid-out interface including multi-colour test points that allow users to monitor circuit waveforms and voltages during experimentation. This practical setup facilitates understanding of load cell working principles, calibration, signal amplification, and pressure measurement, making it an indispensable tool for hands-on learning and product testing in pressure transducer applications. It supports standard industry connectivity with 1/4" B.S.P. termination for the transducer and includes zero adjustment controls for precise measurements. Powered by a single-phase 230V AC supply, this unit is engineered for reliable and consistent performance in professional teaching and testing environments.
Key Features
| Features | Description |
|---|---|
| Pressure Measurement Range | 0 to 5 Kg/cm2 |
| Transducer Type | Strain gauge load cell coupled to metal bellow |
| Amplifier | Solid state precision amplifier |
| Readout | 3.5 digit digital display for direct pressure reading |
| Excitation Source | Regulated 5V DC supply |
| Test Points | Multicoloured test points for observing voltages and waveforms |
| Enclosure | Powder-coated metal cabinet with acrylic front panel |
| Zero Adjustment | Multiturn potentiometer |
| Power Requirements | 230V ± 10%, 50Hz, single phase |
| Transducer Termination | 1/4" B.S.P. |
| Attributes | Description |
|---|---|
| Parameter Measured | Pressure (Kg/cm2) |
| Measurement System | Load cell-based electronic instrumentation |
| Sensor Configuration | Bridge type strain gauge |
| Transducer Coupling | Metal bellow |
| Display Type | Digital meter with 3.5 digit resolution |
| Enclosure Material | Powder coated metal and acrylic |
| Adjustment Controls | Multiturn potentiometer for zero setting |
| Test Interface | Multi-point test terminals with color-coding |
| Input Voltage | 230V AC ± 10% |
| Frequency | 50 Hz |
| Phase | Single phase |
| Connector Type | 1/4" British Standard Pipe (B.S.P.) |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The trainer measures pressure from 0 up to 5 Kg/cm2, suitable for low to moderate pressure studies.
The load cell is strain gauge based and coupled to a metal bellow; as pressure applies on the bellow, it deforms causing strain in the gauge, which changes its resistance, producing an electrical signal proportional to the pressure.
Yes, the trainer includes a multiturn potentiometer specifically for zero adjustment to calibrate and nullify offset errors.
Multiple multicoloured test points are provided at various stages in the circuit to monitor waveforms and voltages, aiding deeper analysis and diagnostics.
The excitation voltage is regulated at 5V DC to ensure stable and precise operation of the load cell sensor.
The transducer is terminated with a 1/4" British Standard Pipe (B.S.P.) connector for secure and standardized mechanical interface.
Yes, the built-in 3.5 digit digital meter shows direct pressure readings, eliminating the need for extra measuring instruments.
Brand: adtron
Country Of Origin: India
SALIENT FEATURES :
Measurement of Pressure using Load cell is a versatile self contained stand alone unit useful in the study and demonstration of the principle and working of a load cell as pressure transducer. The trainer consists of an excitation signal source, load cell coupled to a metal bellow, highly sensitive solid state amplifier, digital meter for direct reading of pressure. The trainer is enclosed in an elegant powder coated metal cabinet with intelligently designed layout on acrylic front panel
TECHNICAL SPECIFICATIONS
Parameter Measured : Pressure (Kg/ cm2)
Measurement System : Transducer with electronic instrumentation.
Transducer Used : Load cell coupled to a metal bellow.
Transducer Range : 0 to 5 Kg/cm2.
Sensor : Load Cell Strain Guage Based.
Configuration : Bridge type
Excitation Source : 5V DC (Regulated).
Termination of Transducer : 1/4" B.S.P.
Amplifier : Solid state precision amplifier.
Readout : 3.5 digit digital display.
Controls : Multiturn potentiometer for zero adjustment.
Test Points : Multicoloured test points are provided at various stages in the circuit
to observe the waveforms and voltages.
Indicator : Mains ON/OFF.
Connector : Facility for connecting transducer.
Power Requirements : 230V, 10% AC 50Hz, 1 phase
