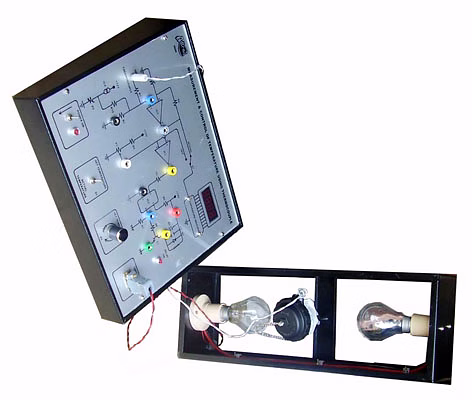

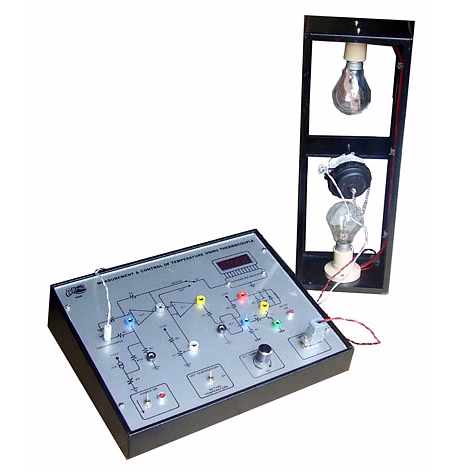

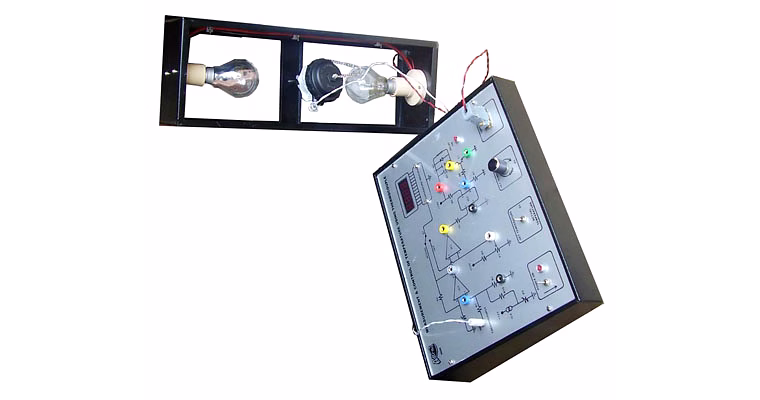

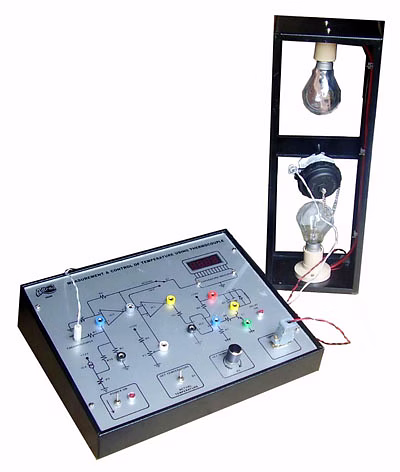

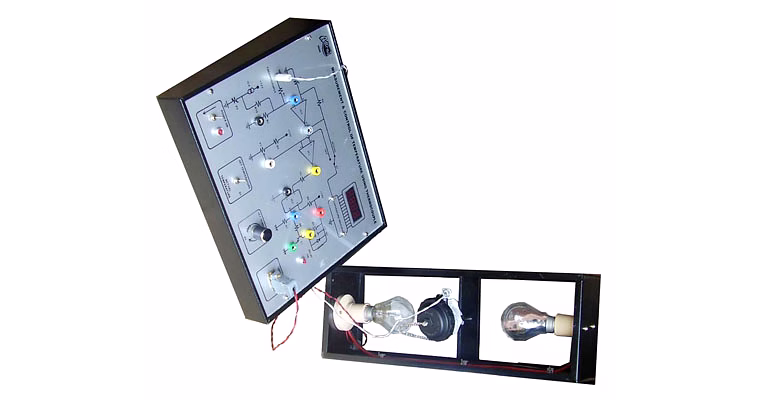

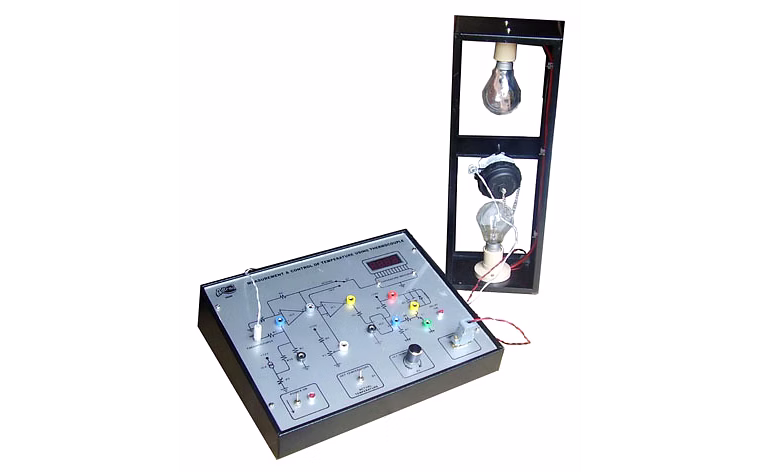

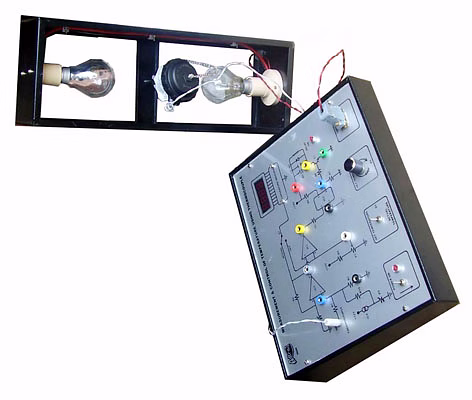

The Measurement and Control of Temperature Using Thermocouple Trainer (Digital) with Heating Process is an advanced educational and industrial training system designed specifically to demonstrate the fundamentals and application of temperature measurement and control using thermocouples. This trainer provides a fully integrated, electronic closed-loop temperature control system with variable setpoints and a specialized heating unit, capable of accurately simulating real-world thermal processes. Featuring an iron-constantan (type J) immersion thermocouple probe, calibrated to ANSI standards and housed in a protective sheath with flange and flying leads, the system enables precise temperature measurement from 0°C up to 400°C. The trainer includes a high-capacity 200W heating element, allowing the temperature to be varied from ambient room temperature up to 700°C for practical experimentation and control applications. The digital interface provides a dual-mode 3.5 digit display that simultaneously shows the setpoint temperature and actual measured temperature, enhancing clarity for users conducting experiments or calibrations. User-friendly controls include setpoint adjustment, display mode switching, and mains power ON/OFF, all integrated into an ergonomically designed front panel made of imported acrylic. Operated on a standard 230V AC power supply, this trainer offers robust, reliable operation and is an essential tool for technical institutes, laboratories, and industries focusing on precise temperature measurement and control systems development using thermocouple technology.
Key Features
| Features | Description |
|---|---|
| Temperature Measurement System | Electronic transducer system using thermocouple technology |
| Thermocouple Type | Iron-Constantan (Type J) immersion probe with sheath and flange |
| Measurement Range of Sensor | 0°C to 400°C |
| System Temperature Range | Ambient temperature to 700°C |
| Control System Type | ON/OFF control system for temperature regulation |
| Heating Unit Capacity | 200 Watts heating element for actual heating process |
| Display | 3.5 digit digital readout with dual display mode (Setpoint and Actual temperature) |
| User Controls | Setpoint adjustment, display mode selection, mains ON/OFF |
| Panel Material | Imported acrylic front panel with intelligent design |
| Operating Voltage | 230V, ±10%, AC, 50 Hz single-phase |
| Attributes | Description |
|---|---|
| Parameter Measured | Temperature |
| Measurement System | Thermocouple transducer combined with electronic instrumentation |
| Control System | ON/OFF type electronic control |
| Transducer Type | Iron-Constantan type J immersion probe calibrated to ANSI standards |
| Sensor Construction | Immersion type probe with sheath and flange, attached with flying leads |
| Sensor Calibration | ANSI type calibration |
| Sensor Operating Range | 0°C to 400°C |
| System Temperature Control Range | From ambient temperature up to 700°C |
| Heating Element Power | 200 Watts |
| Set Point Adjustment | Adjustable over full temperature range |
| Readout Display | 3.5 digit digital display, dual mode (setpoint and actual temperature) |
| Control Interfaces | Rotary/setpoint control, display mode switch, mains power switch |
| Power Supply | 230V ±10%, AC, 50 Hz, single-phase |
| Physical Panel | Imported acrylic - ergonomically designed for ease of use |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The trainer uses an iron-constantan (Type J) immersion thermocouple sensor that is calibrated to ANSI standards for precise temperature measurement.
The sensor itself measures temperature in the range of 0°C to 400°C, while the overall system is capable of controlling temperature from ambient room temperature up to 700°C with the integrated heating unit.
Temperature is controlled using an ON/OFF type electronic control system that regulates the heating element based on the setpoint temperature defined by the user.
The heating unit has a power rating of 200 Watts, which provides sufficient heating capacity to achieve and maintain the desired temperature within the specified range for practical experimentations.
Yes, the digital 3.5 digit display offers dual mode functionality allowing the user to switch between viewing the setpoint temperature and the actual measured temperature, enhancing ease of temperature monitoring.
Users have full control via adjustable setpoint control, display mode selection to toggle temperature display, and mains ON/OFF switch, all ergonomically mounted on an imported acrylic front panel.
Brand: adtron
Country Of Origin: India
SALIENT FEATURES :
Temperature measurement and control system demonstrates the principle and working of the specialised dedicated temperature transducer 'Thermocouple' and also shown is one of its unique application to measure and control temperature. An electronic closed loop temperature measuring and controlling system with variable set point, special heating unit and digital readout all enclosed in a specially designed intelligently designed layout on imported acrylic front panel.
TECHNICAL SPECIFICATIONS
Parameter Measured : Temperature.
Measurement System : Transducer with electronic instrumentation.
Control System : ON/OFF type.
Transducer : Thermocouple.
Type : Iron-Constantan, immersion type probe in sheath with
flange and flying leads.
Sensor Calibration : ANSI type.
Sensor Range : 0 to 4000C.
System Range : Variable from ambient (room) temperature’s to 700C.
Actual Heating Process : Heating unit of 200W heating capacity.
Set Point : Adjustable over full range.
Readout : 3.5 digit digital display, dual mode to read.
a] Set temperature in 0C.
b] Actual temperature in 0C.
Controls : a] Set point control.
b] Display mode control.
c] Mains ON/OFF control.
Operating Voltage : 230V, 10% AC, 50Hz 1.
