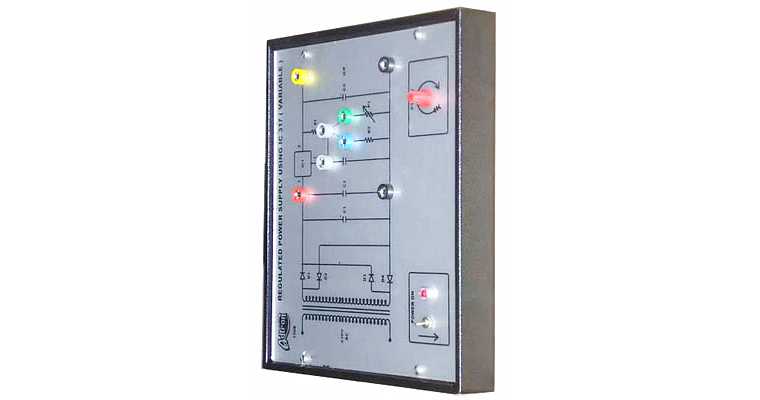

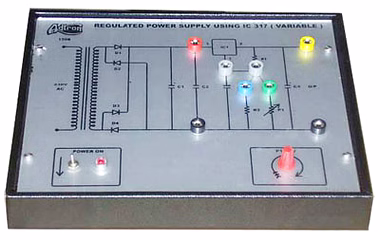

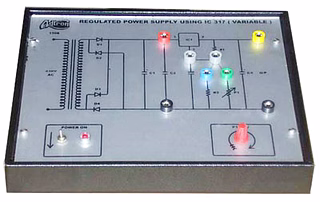

SALIENT FEATURES :

¢ Completely self contained stand alone unit.

¢ Demonstrates the principle of construction and working of a regulated power supply using IC 317.

¢ Supply required 230V, 50Hz AC.

¢ Built - in voltmeter, and ammeter to measure voltage and current.

¢ Built - in resistive load.

¢ Built - in short circuit protection and thermal shutdown.

¢ Measurement of the basic parameters of the variable regulated power supply using IC 317.

¢ Determination of line regulation load regulation and ripple factor.

¢ Test points at various stages in the circuit, enable to observe the waveforms and voltages.

¢ Set of patch cords.

¢ Housed in an elegant metal cabinet with a well spread intelligently designed circuit layout on the front panel.

¢ Strongly supported by a comprehensive instruction manual complete with theory and operation details.
